The Acid Ape Chess User Manual
Acid Ape Studios
2023-07-02

Table of contents

This manual documents Acid Ape Chess Grandmaster Edition 1.11.4.

This manual is worth reading for users who want to leverage the full potential of Acid Ape Chess Grandmaster Edition.

Acid Ape Studios produces:

Welcome to Acid Ape Chess, the multipurpose chess suite aimed at the serious player.

Acid Ape Chess is organized with a tools philosophy in mind. You can leverage its modular design to perform common and less common chess-related tasks.

Acid Ape Chess focuses on:

The following chapters describe Acid Ape Chess in details and provide examples and step-by-step tutorials.

Acid Ape Chess is organized into pages. Upon startup, the New Game page is displayed.

The Acid Ape Chess screen is composed of:

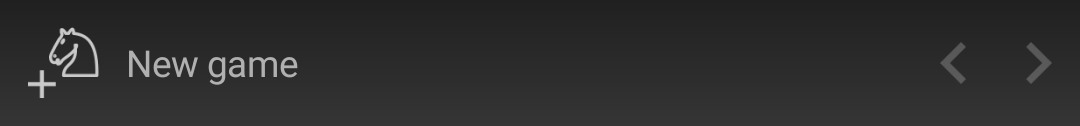

The title bar
FIGURE 2.1: The title bar

The title bar contains:

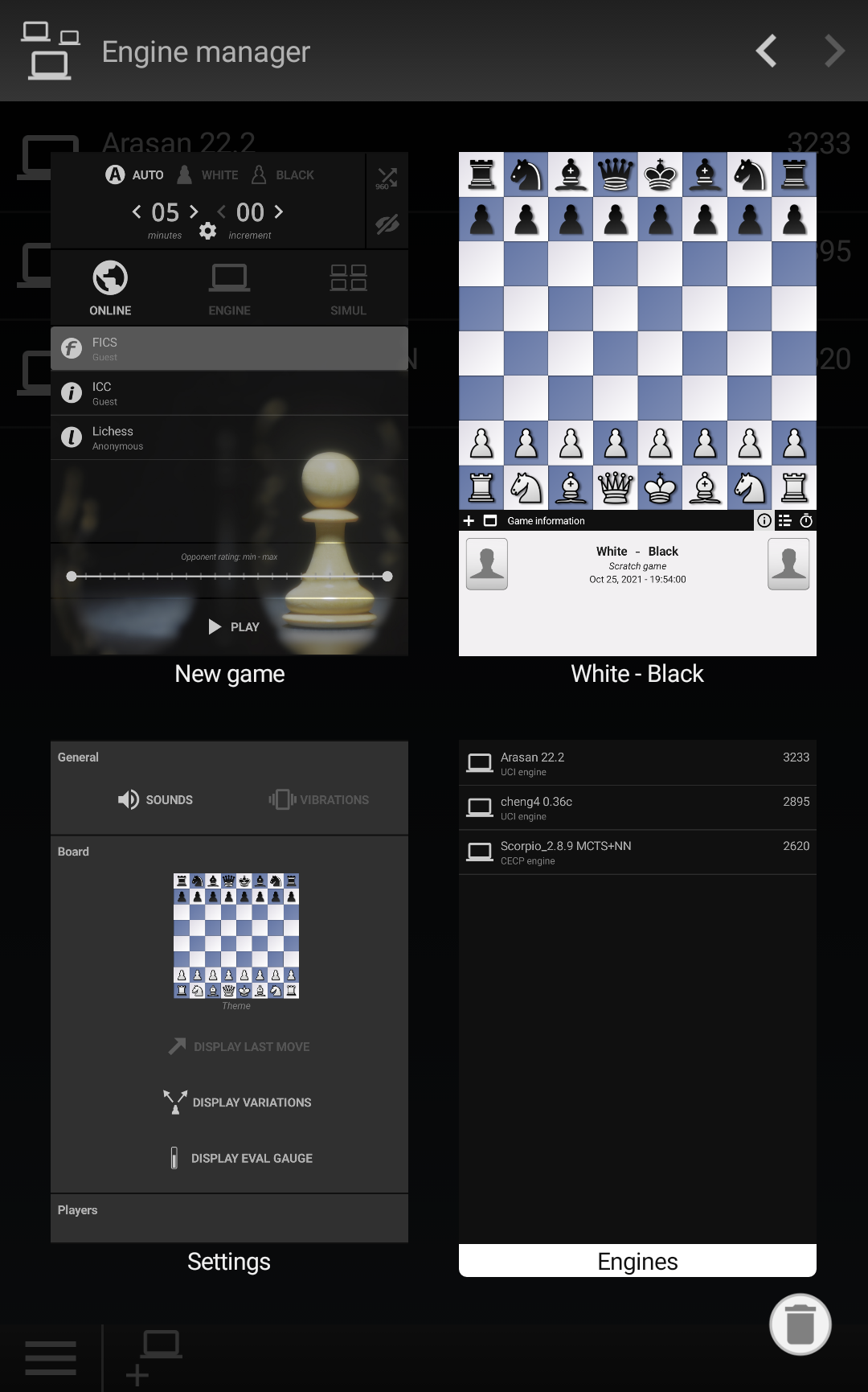

The pager
FIGURE 2.2: The pager

Pressing the title bar toggles the pager.

The pager displays real-time miniatures of pages.

To close a page, swipe it out to the left or right screen edge.

To reset to the startup state (closing all pages and opening the New Game page), press the trashcan button (at the bottom right of the screen).

If a page signals for attention, the icon of that page is displayed at the left of the navigation buttons.

Pressing the attention icon navigates to the signaling page and clears the icon.

Examples:

  • a game page signals for attention if a move has been played;
  • a chat page signals for attention if a message has been received.

At the right of the title bar, back/forward buttons allow navigating through the page history list.

The toolbar
FIGURE 2.3: The toolbar

The toolbar contains the main menu button and page-specific buttons.

Pages can be switched by:

To close a page:

Acid Ape Chess exits when the last remaining page is closed.

Notable Acid Ape Chess pages include:

The New Game page

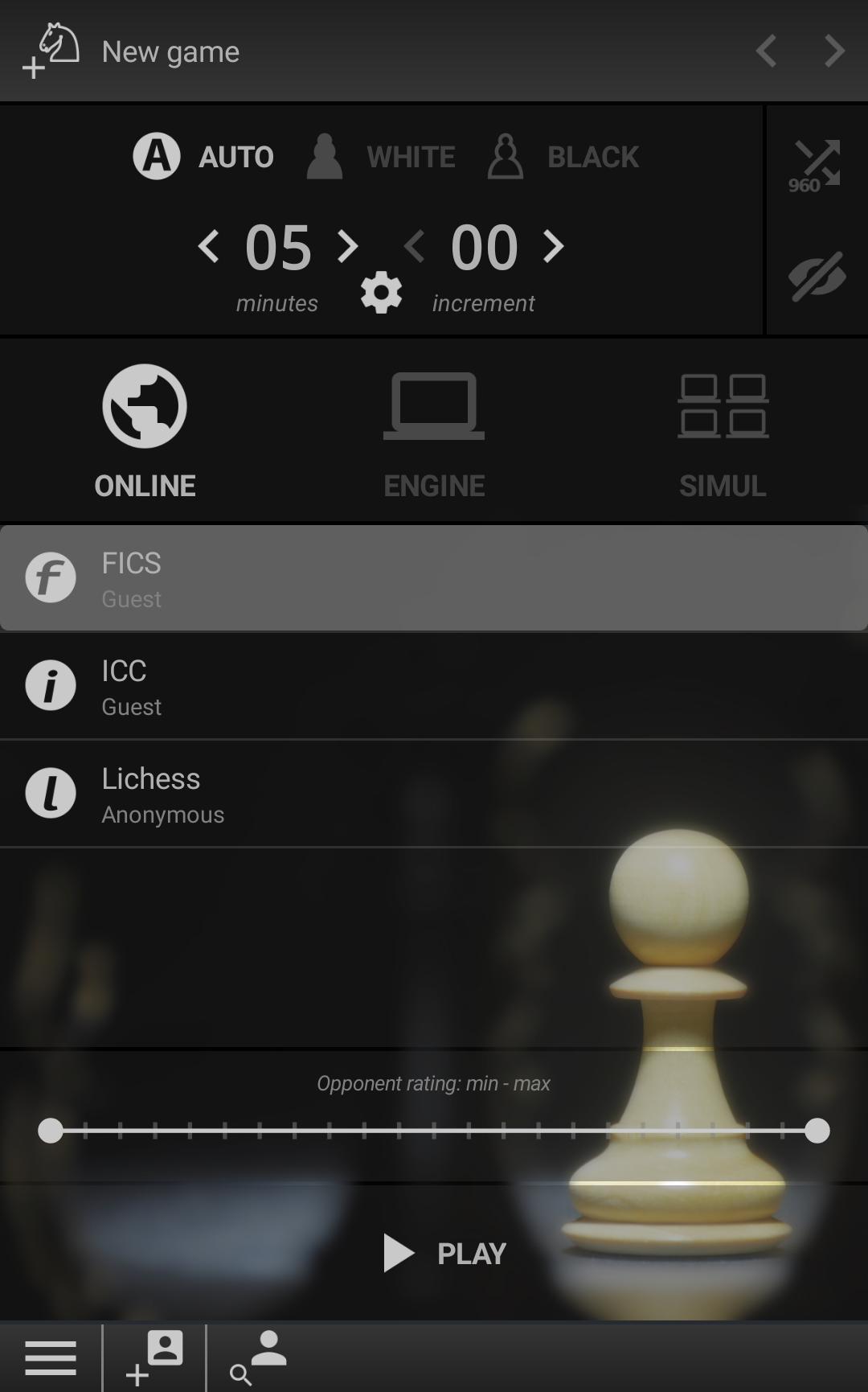

FIGURE 3.1: The New Game page

The New Game page allows you to quickly play online or against a chess engine.

Note
Other game types (human duel, engine duel) and options (asymmetric clocks, custom position) are available in the play dialog.

The New Game page is displayed when Acid Ape Chess starts, and can be explicitly accessed by using Game > New in the main menu.

The color selector
FIGURE 3.2: The color selector

The color selector allows you to select the user color.

Button Description
The “auto” button Select a random color.
The “white” button Select white.
The “black” button Select black.
TABLE 3.1: Color selector buttons
The time selector

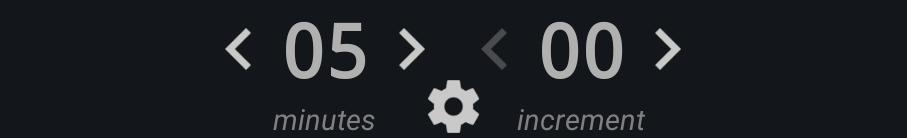

FIGURE 3.3: The time selector

The time selector allows you to choose a time control.

By default, the selector is in custom mode, allowing you to set a specific time and Fischer increment.

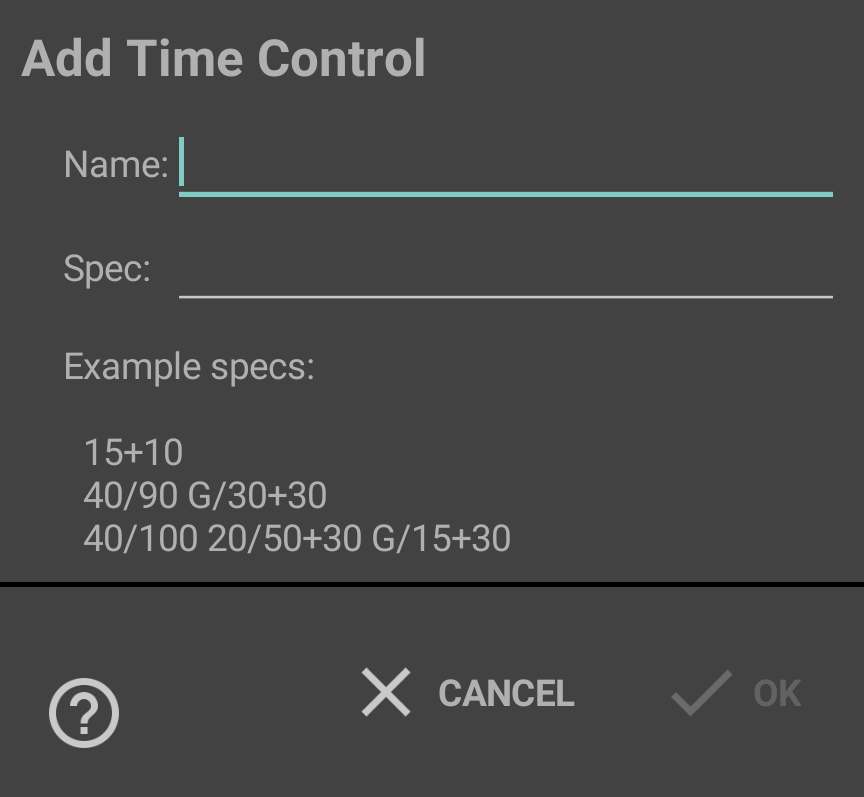

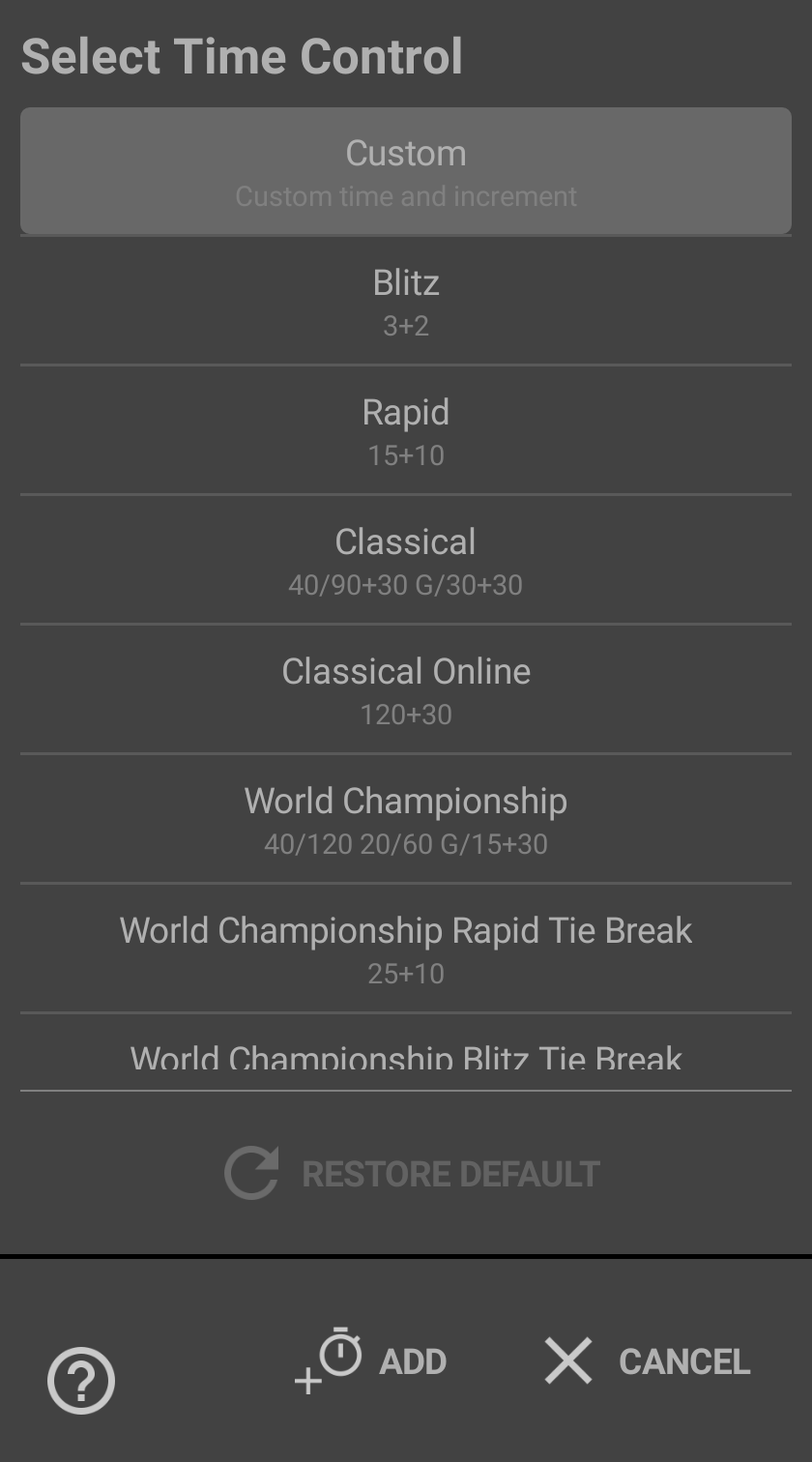

Press the settings button to select more advanced time controls from the time control selection dialog.

When a player runs out of time, he usually loses the game (but not always: see autoflagging).

Note
Online chess servers only support a simple single-period time control, with an optional Fischer increment but without a move limit.
Chess960 and Blindfold toggles
FIGURE 3.4: Chess960 and Blindfold toggles

The Chess960 button toggles the Chess960 mode. In this mode, a random Chess960 position is used for the new game.

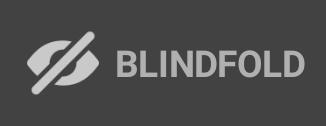

The blindfold button toggles the blindfold mode. In this mode, the board is masked and moves must be entered via speech recognition.

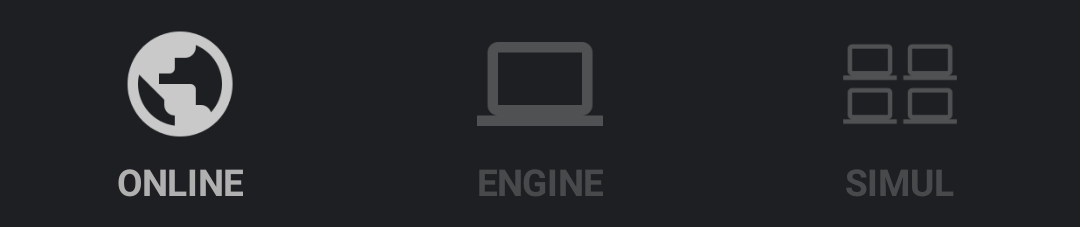

The game type selector
FIGURE 3.5: The game type selector

The game type selector allows you to choose between different game types.

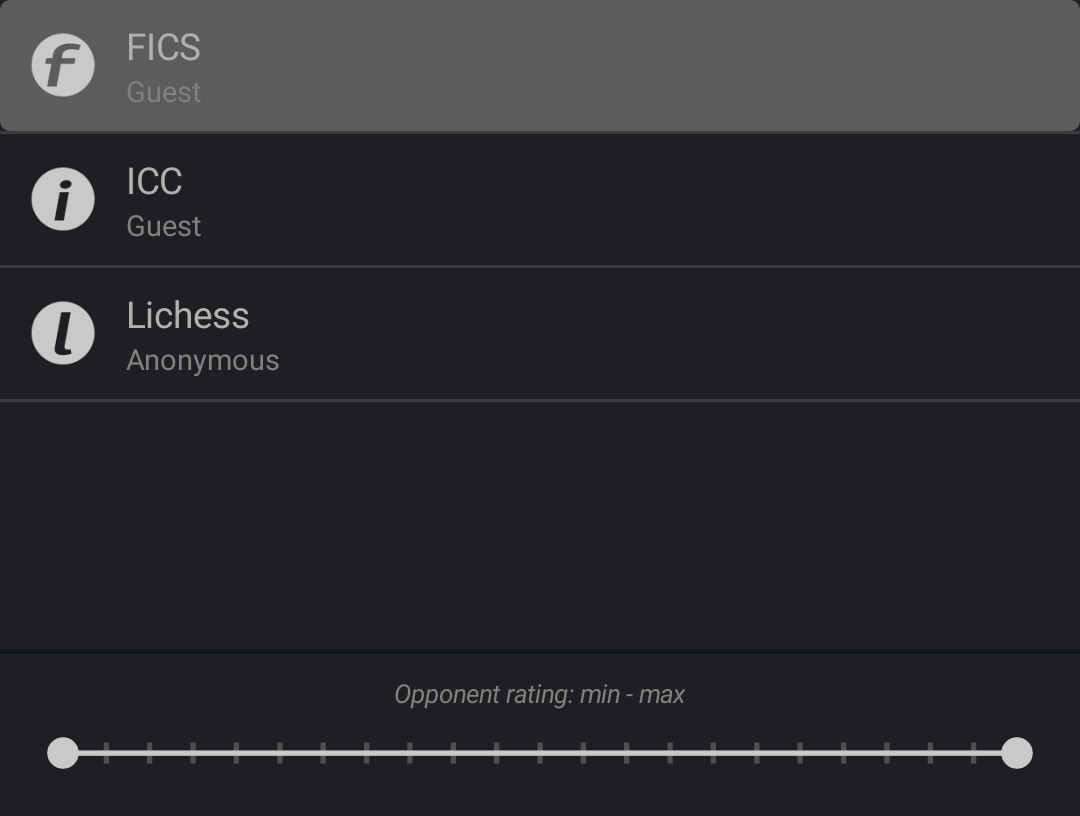

The ONLINE tab
FIGURE 3.6: The ONLINE tab

Select this tab to play a game on an online chess server.

By default, guest accounts for the three supported servers are configured. You can add more accounts (guest or authenticated) with the add toolbar button at the bottom of the screen.

The connection status of an account is displayed at the bottom right of its icon.

Icon Description
Not connected.
Connecting Connecting.
Connected Connected.
Contact lost Contact lost.
TABLE 3.2: Connection status

An opponent rating range can be selected using the bottom slider. Note that if a Lichess account is selected, this slider is only available if the account is not anonymous.

By default, an unrated game is created. To play a rated game, select an account having a username and password, then press the trophy icon at the left of the PLAY button.

When the ONLINE tab is selected, the toolbar contains the following buttons:

Button Description
The “add account” toolbar button Add a chess account.
The “player search” toolbar button Search for a player on the selected server.
The “online friends” button View friends online on the selected server.
TABLE 3.3: Online toolbar buttons
Note
Searching for a player and viewing online friends is only possible on FICS and Lichess. Moreover, viewing online friends is only possible with an authenticated account.
The ENGINE tab

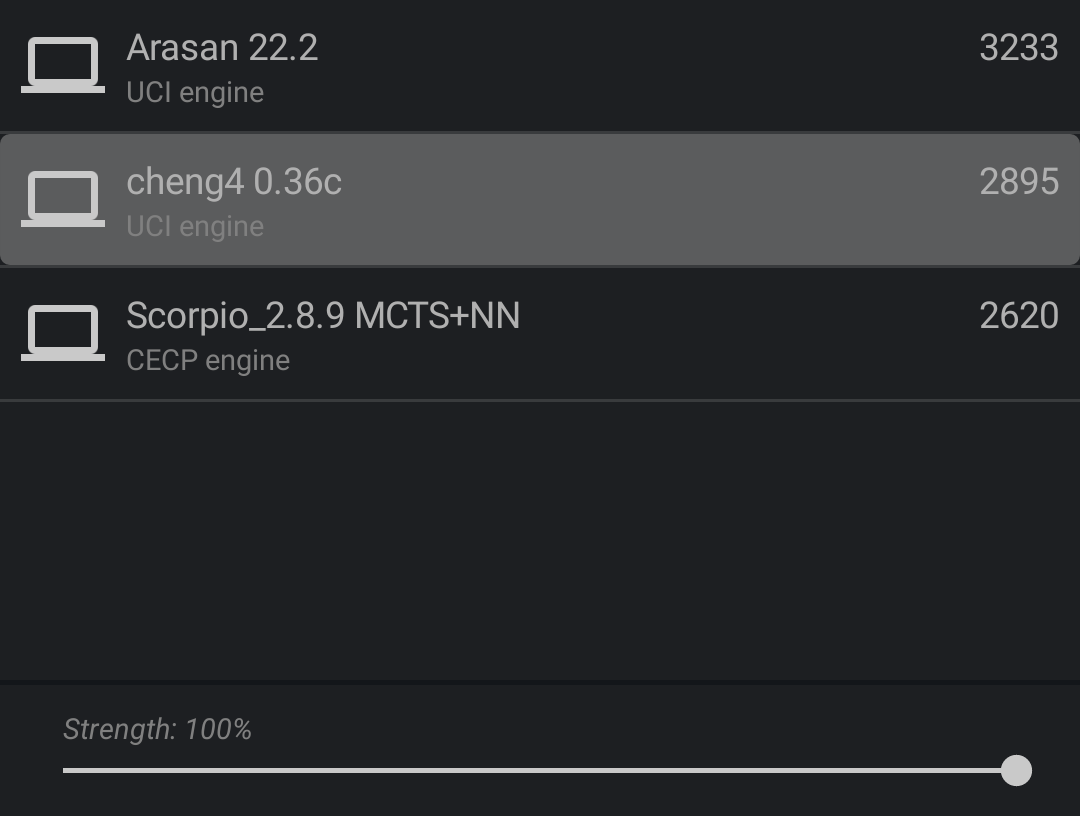

FIGURE 3.7: The ENGINE tab

Select this tab to play a game against a chess engine installed on your device.

Acid Ape Chess ships with three built-in engines. You can add more engines with the add toolbar button at the bottom of the screen.

If the selected engine supports adjustable strength, the engine strength can be selected using the bottom slider.

If the selected engine supports personalities, a personality selector is displayed instead of the strength slider. At the time of this writing, one such engine (Rodent III) can be found in our separate Chess Engines Collection package. This package can be quickly installed using the add toolbar button.

Note
The ELO rating at the right of each engine is updated every 24 hours from CCRL 40/15.

When the ENGINE tab is selected, the toolbar contains the following buttons:

Button Description
The “add engine” toolbar button Add a chess engine.
TABLE 3.4: Engine toolbar buttons

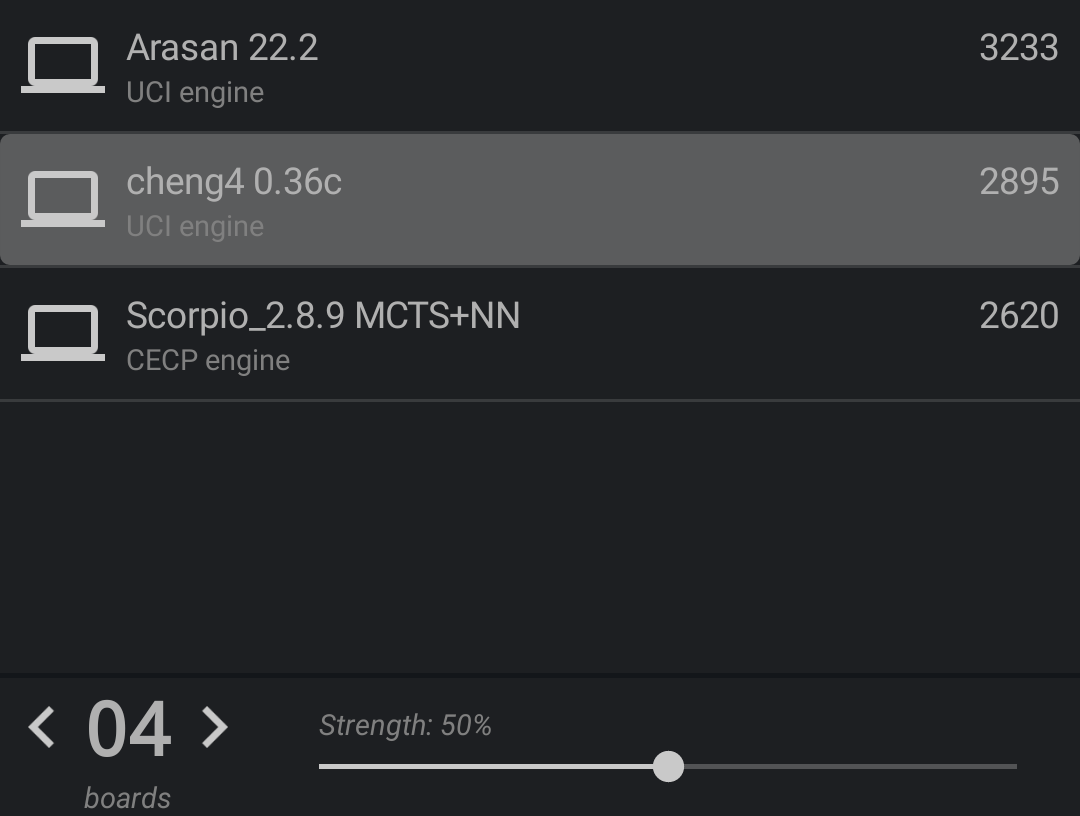

The SIMUL tab
FIGURE 3.8: The SIMUL tab

Select this tab to play a simul against multiple instances of a chess engine installed on your device.

Differences with the ENGINE tab:

  • the default strength is 50% (it is assumed that you will prefer weaker opponents when playing many of them);
  • a boards control allows you to select the number of opponents.
Warning
The boards value defaults to a small number (smaller than most real life exhibitions) for good reasons. Since one engine instance is running per board, you might exceed your device processor and/or memory capabilities by inadvertently configuring too many boards (if your device becomes overloaded, it might freeze for long periods while trying to recover).

When the SIMUL tab is selected, the toolbar contains the following buttons:

Button Description
The “add engine” toolbar button Add a chess engine.
TABLE 3.5: Simul toolbar buttons

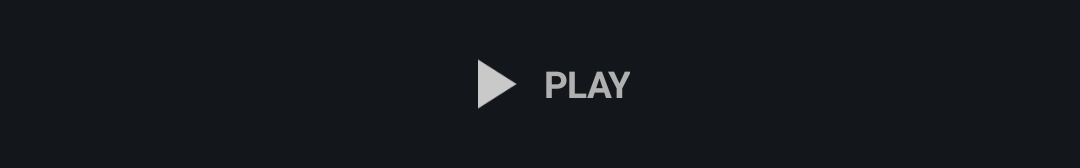

The PLAY/CANCEL button
FIGURE 3.9: The PLAY/CANCEL button

Press this button to create a game of the selected type or to cancel a seek in progress.

The game page

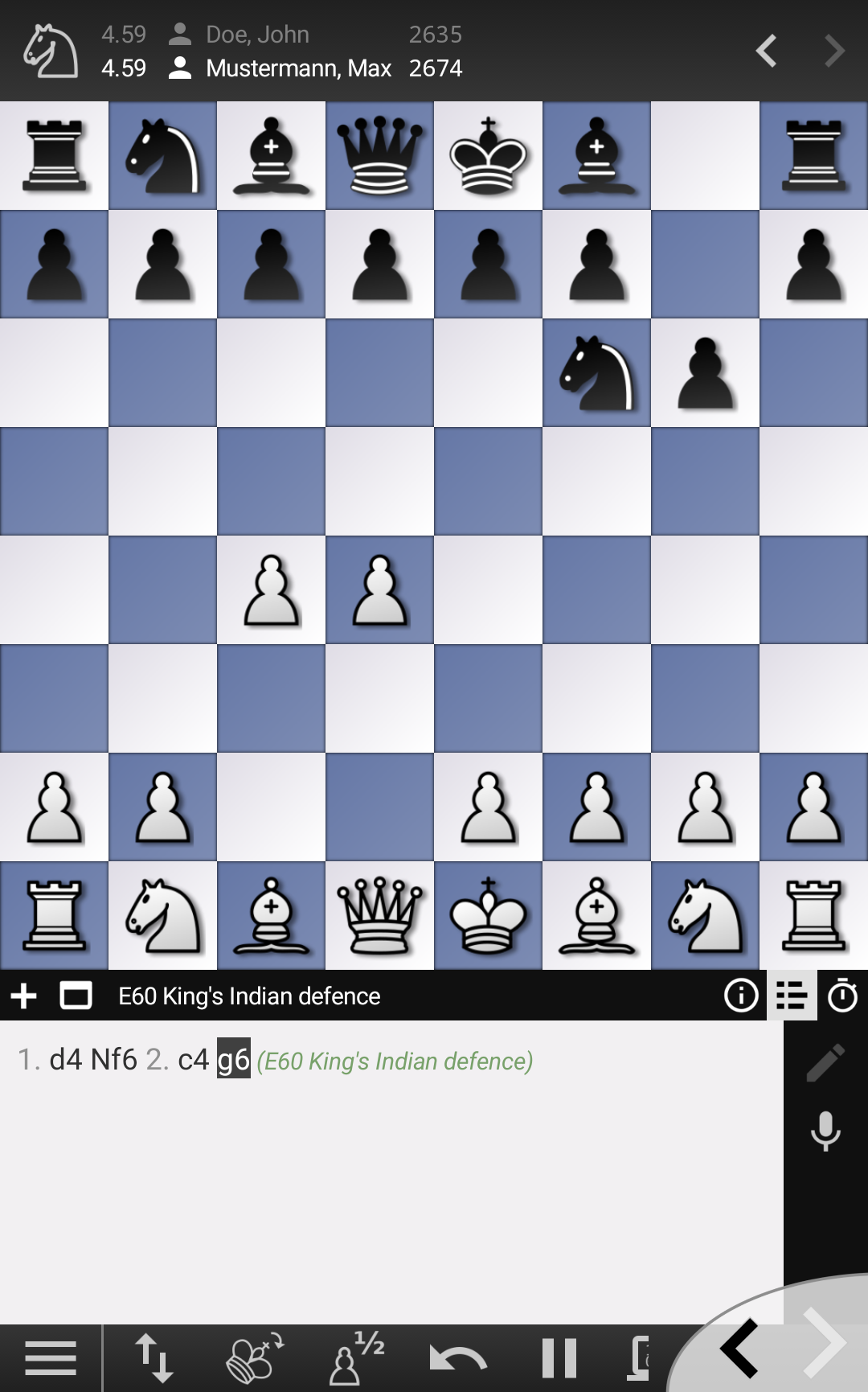

FIGURE 3.10: The game page

The game page allows you to play, view, analyze and edit a game.

The game page can be accessed via various parts of the app.

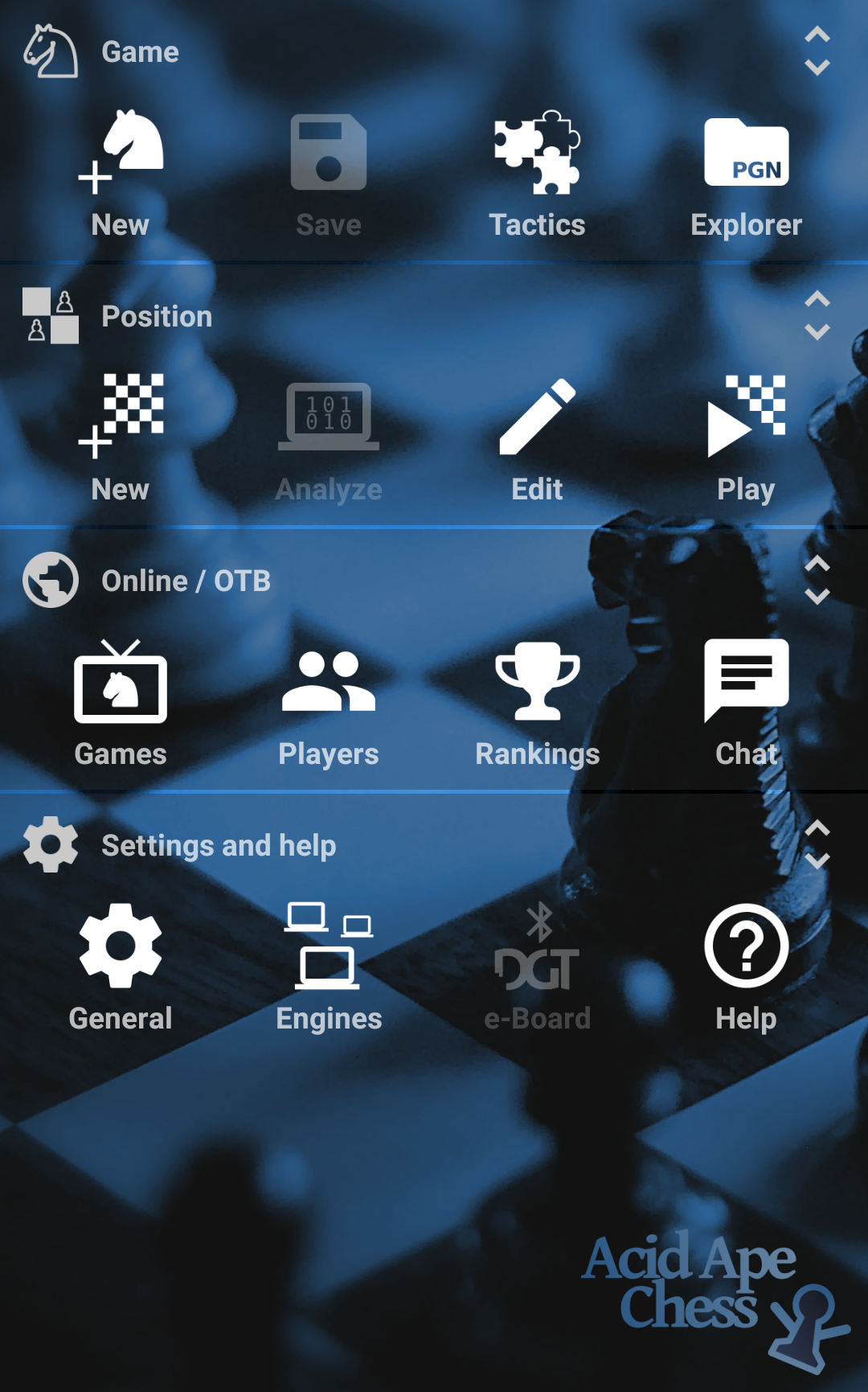

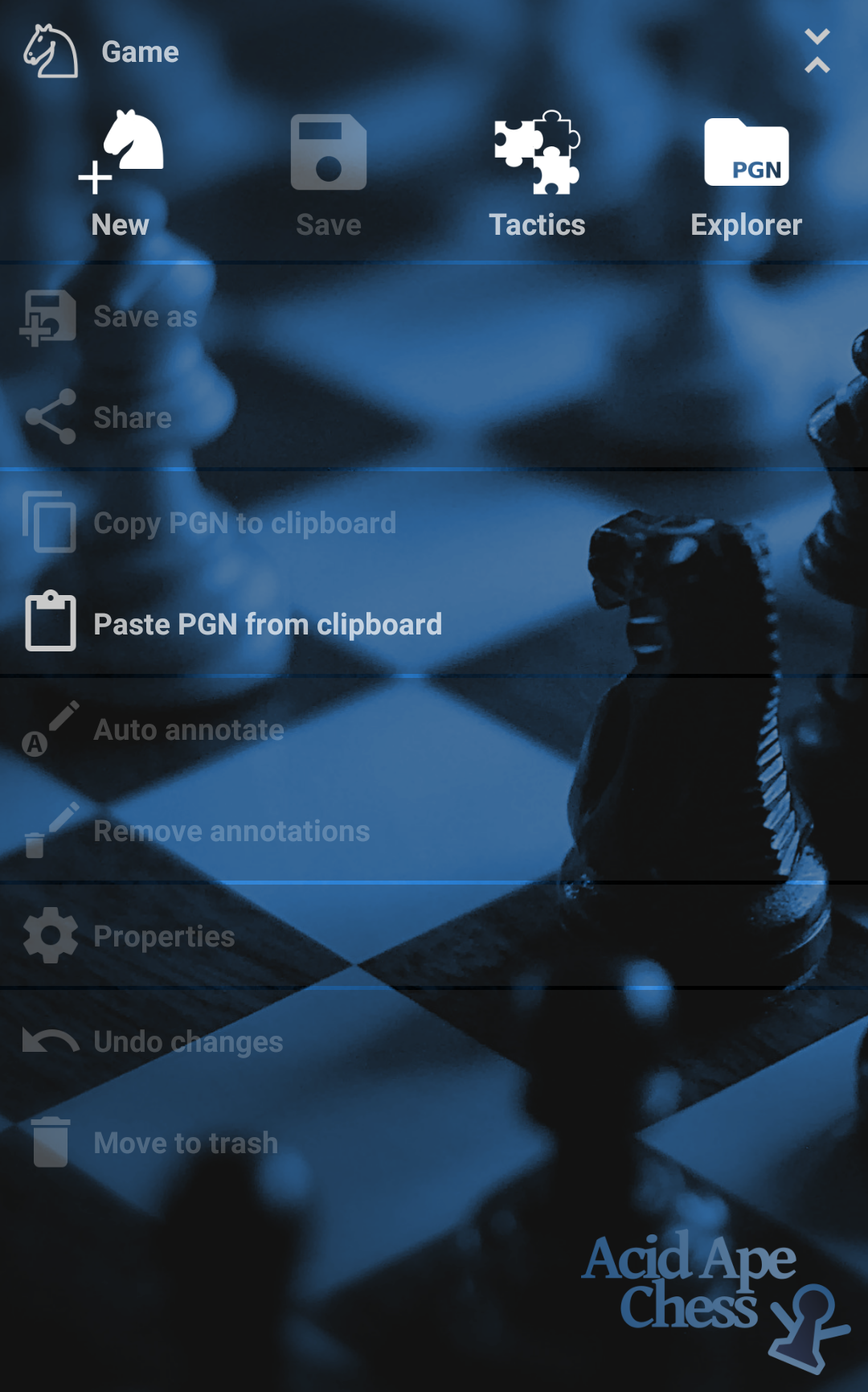

Most notably, from the main menu:

  • an online game, engine game or simul can be created with Game > New;

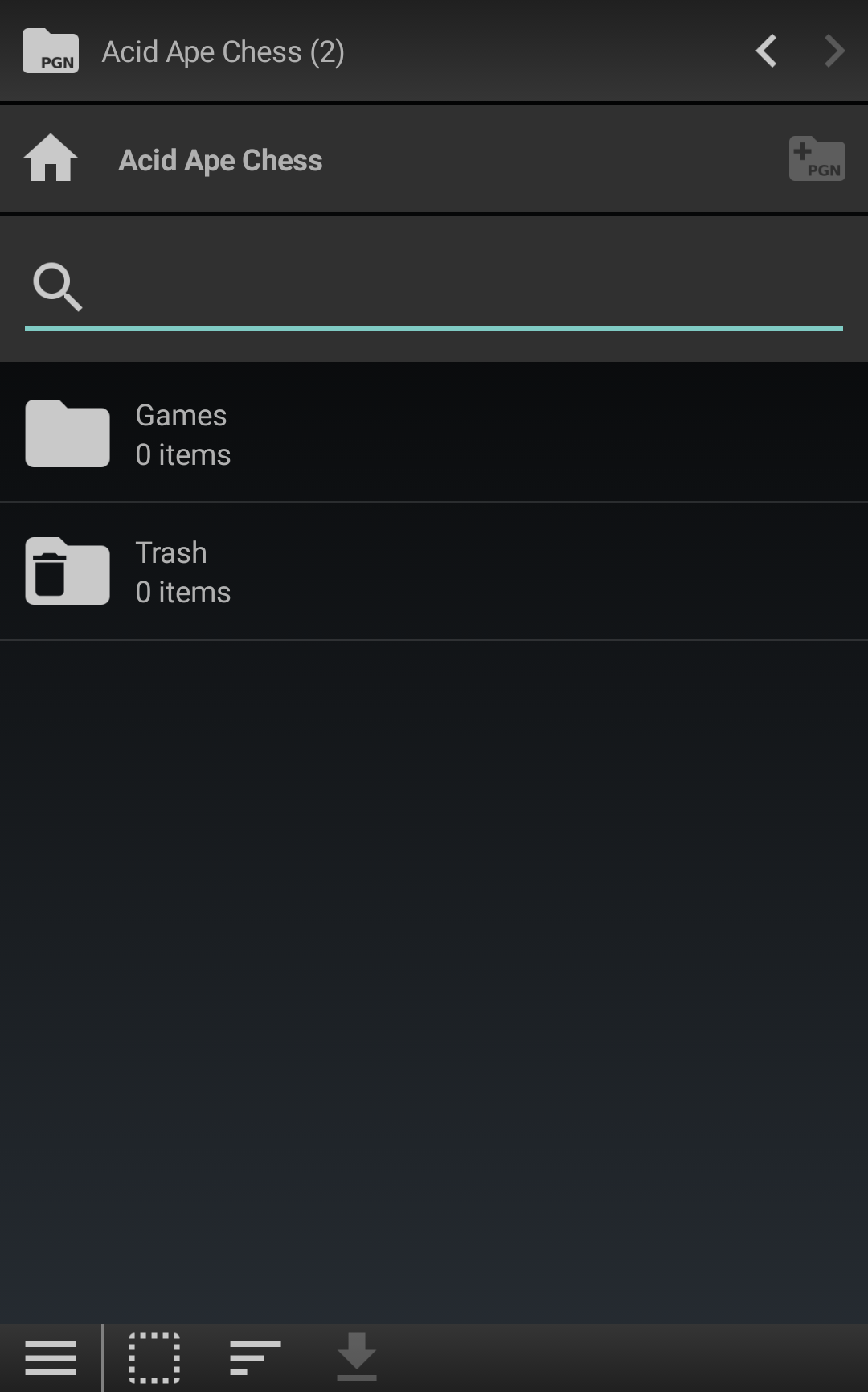

  • a PGN file can be opened with Game > Explorer;
  • a scratch board can be created with Position > New;
  • a custom game (two-player game, engine duel, asymmetric clocks, custom position, ...) can be created with Position > Play;

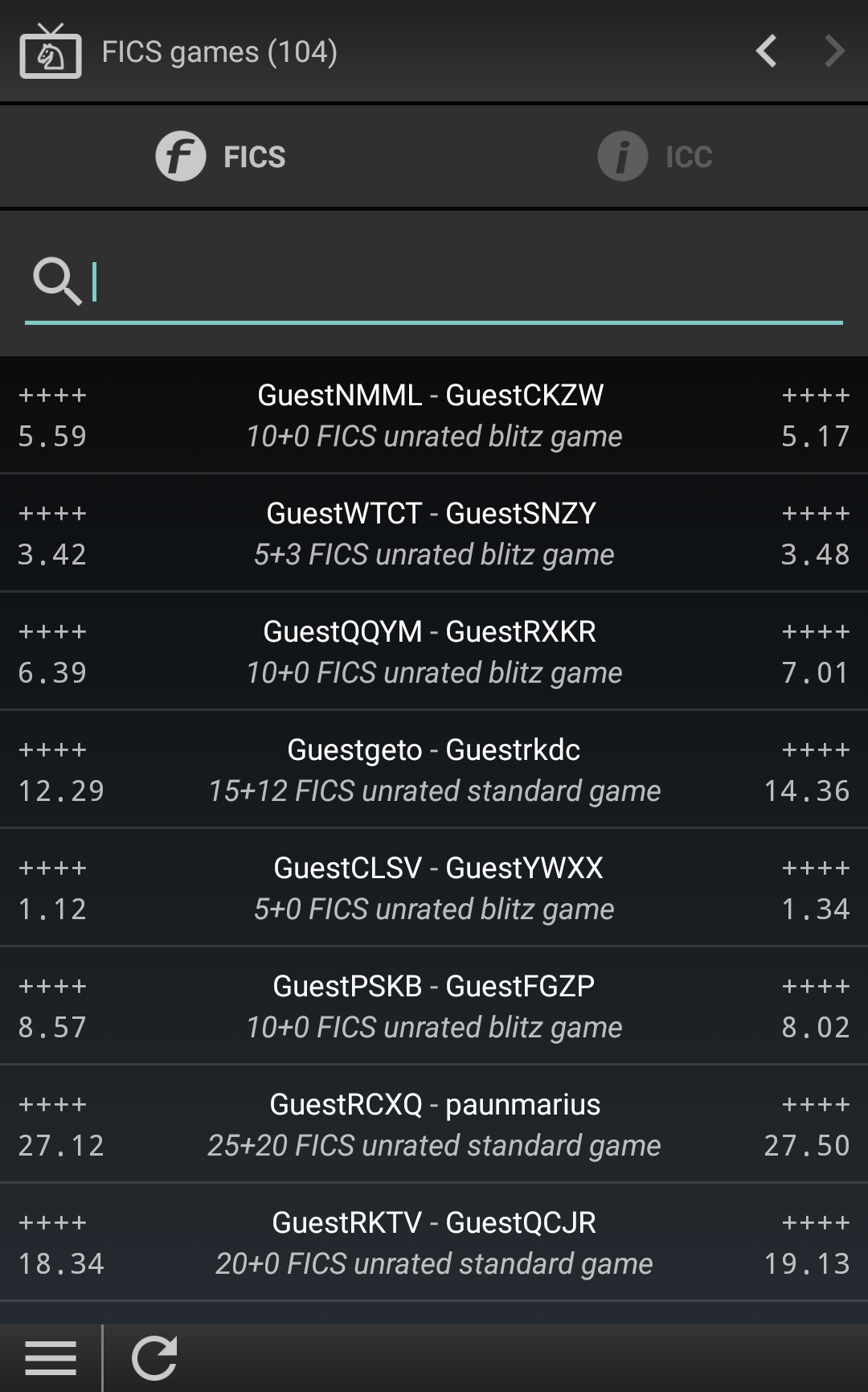

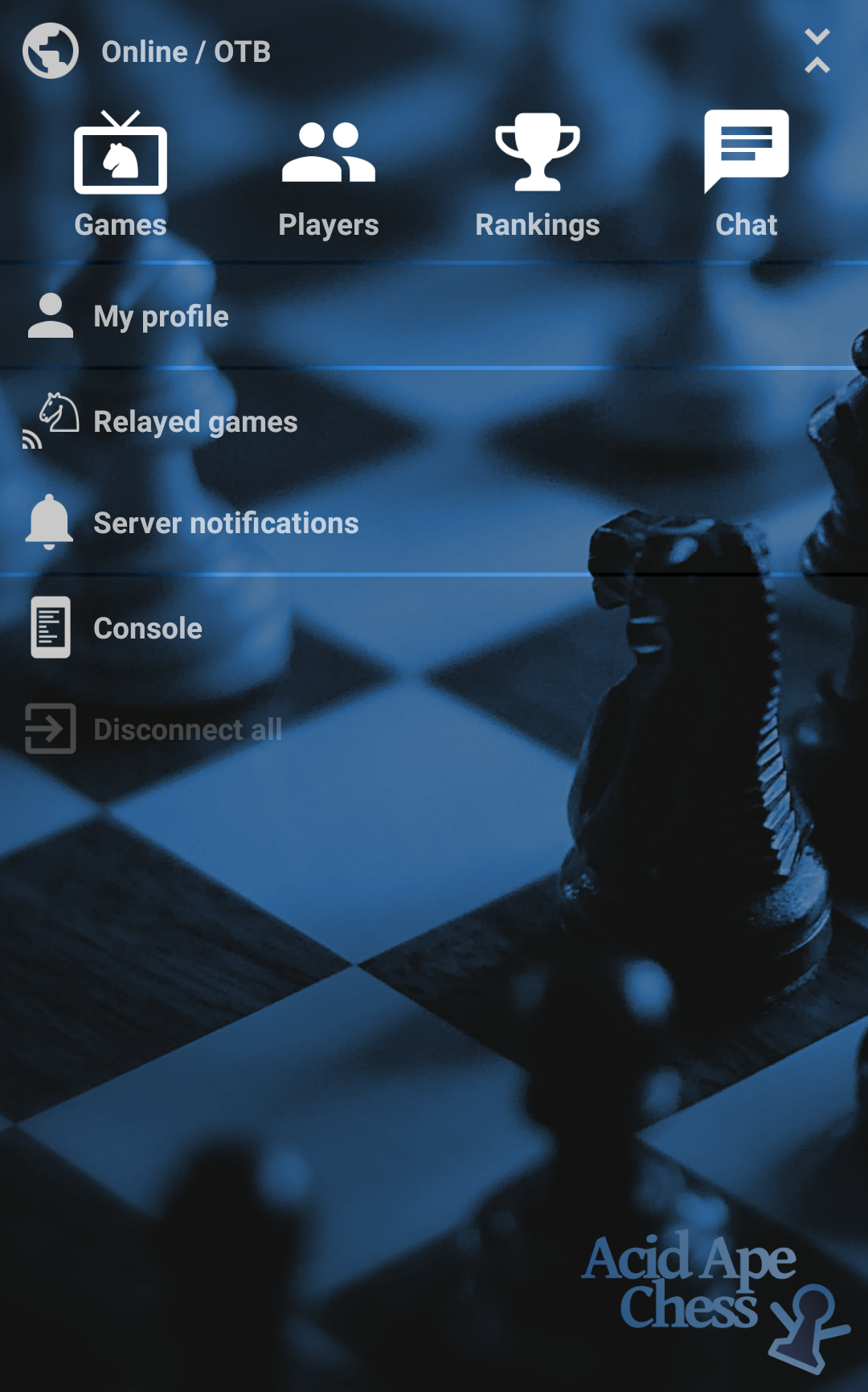

  • a live online game can be watched with Online / OTB > Games;
  • a live OTB game can be watched with Online / OTB > Relayed games;

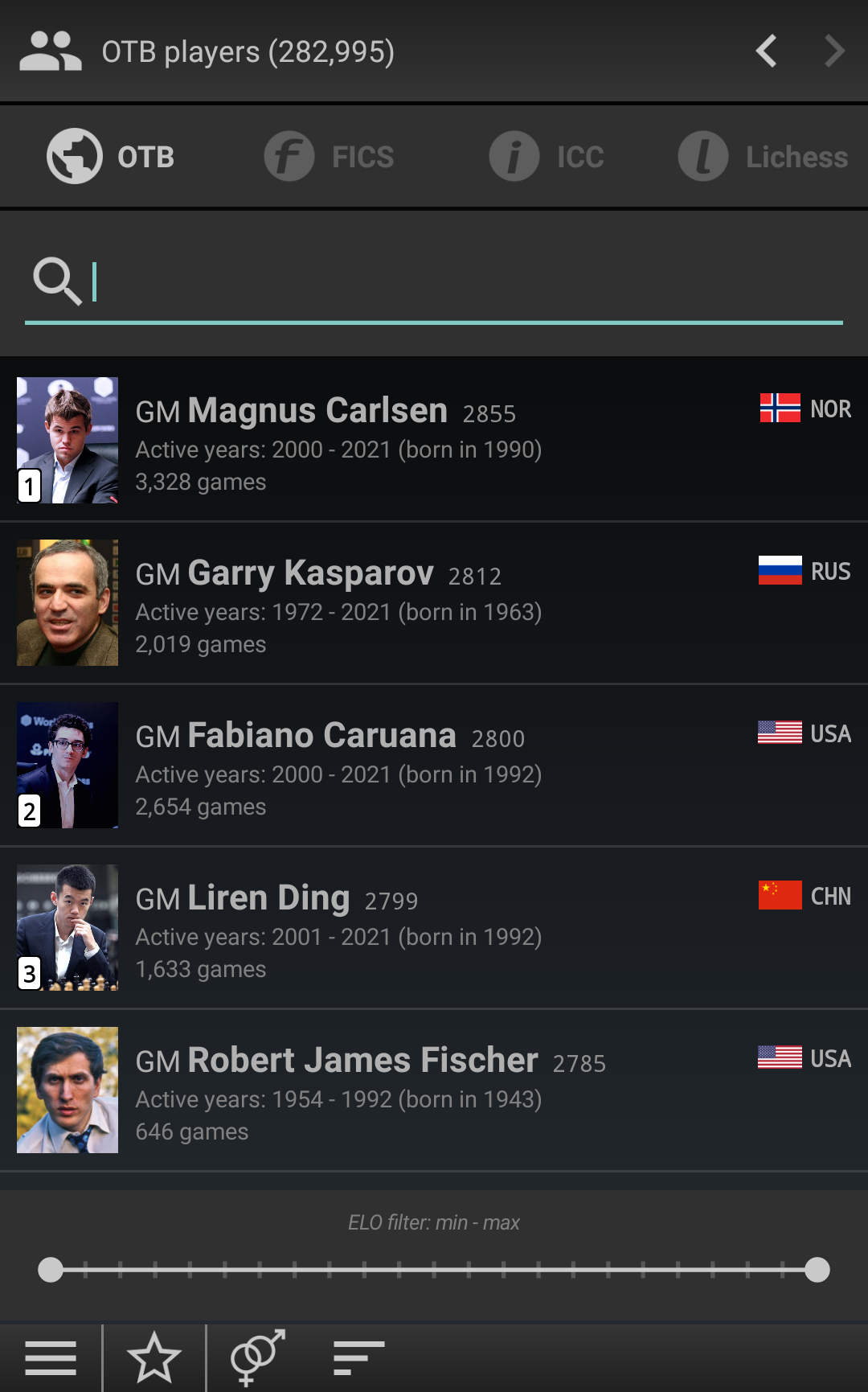

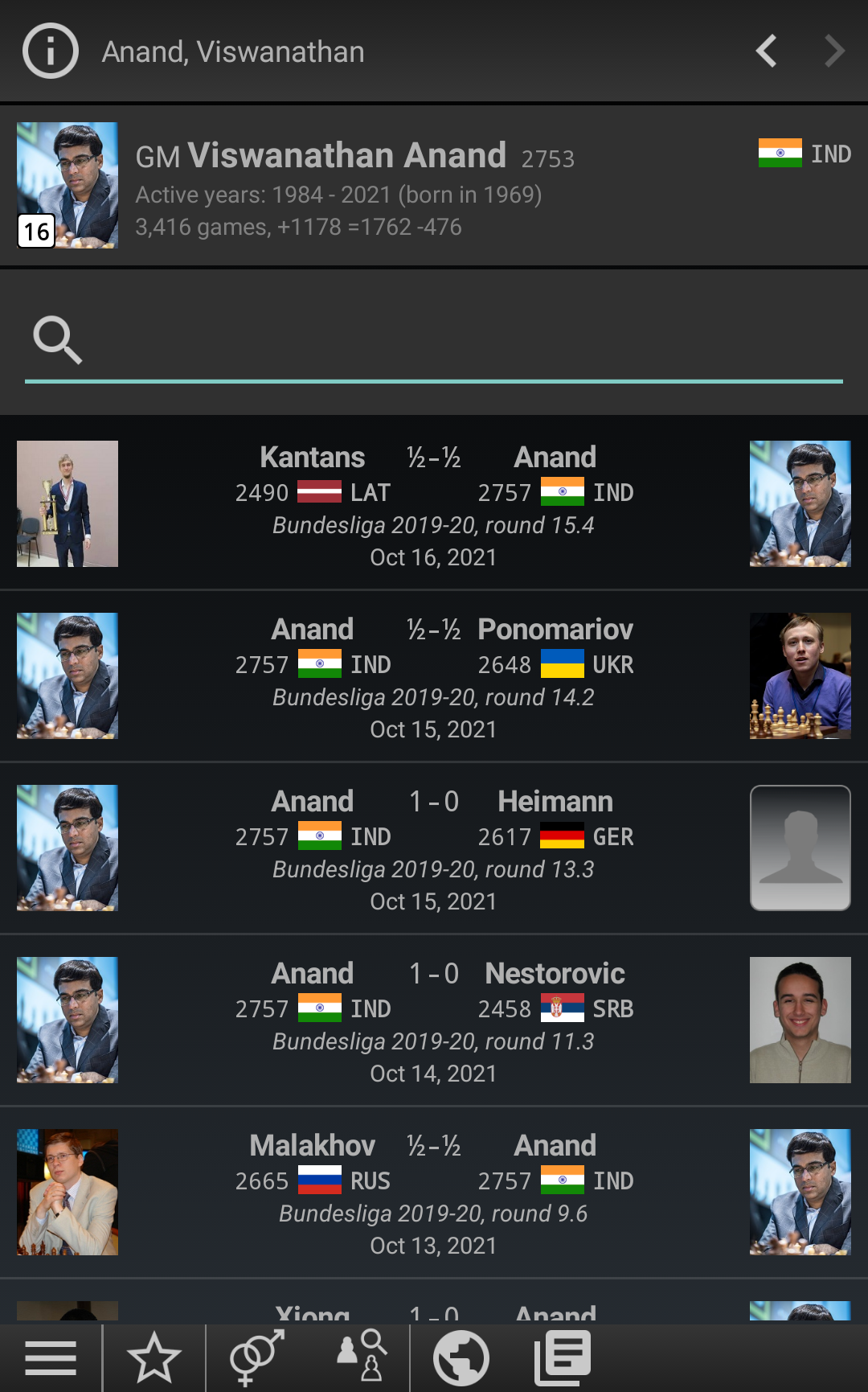

  • a recorded OTB game can be opened via Online / OTB > Players.

In the context of inter page communication, the game page is both a game data source and a game data sink.

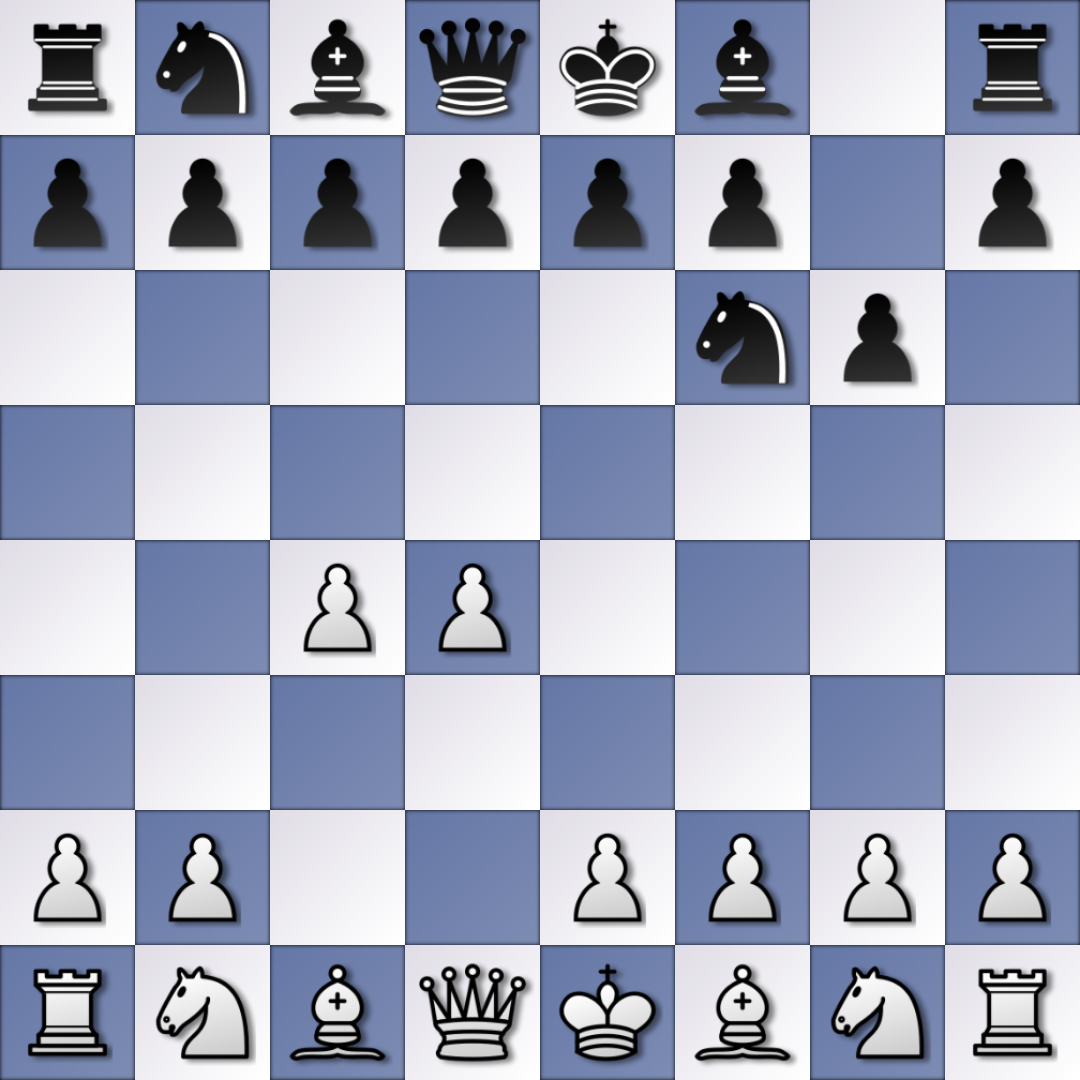

The chessboard
FIGURE 3.11: The chessboard

The chessboard is obviously the central feature of Acid Ape Chess.

You can input moves using two different methods:

  • press the source square, then the destination square;
  • drag the piece from the source square to the destination square.

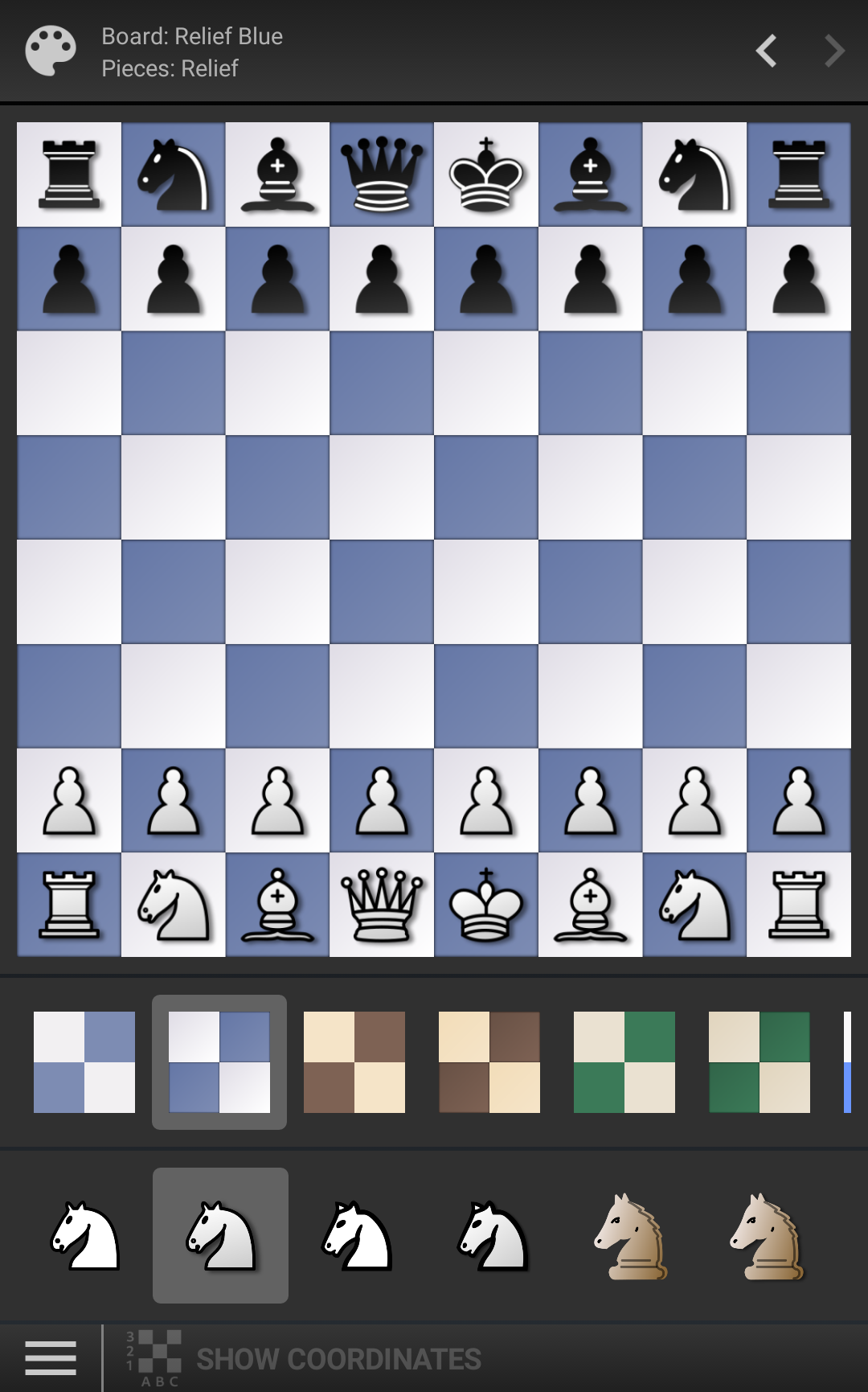

The board appearance can be modified in the board theme page.

Specific chessboard squares may be highlighted.

Square Description
The move source square The source of the current move.
The touch feedback square The square being touched.
The illegal square The square being touched is an illegal source or destination.
TABLE 3.6: Move highlighters
Square Description
The DGT move in progress square The square participates in an uncompleted OTB move. Complete your move.
The DGT error square The piece on the physical board square differs from the piece on the Acid Ape Chess board square. Fix the physical square.
TABLE 3.7: OTB play highlighters
Square Description
The puzzle hint move source square The source of the current puzzle hint.
TABLE 3.8: Miscellaneous highlighters

Arrows may appear over the chessboard to highlight specific moves.

These arrows are displayed when made relevant by the current move list location.

Arrow Description
The last move arrow The last move.
The mainline arrow The next move in the current line (may feature a score gauge).
The variation arrow The start of a variation (may feature a score gauge).
TABLE 3.9: Game flow arrows
Note
When the evaluation graph is enabled, the blue arrows may feature a score gauge. Each score is computed by averaging the evaluations of the visible plots.
Note
These arrows can be toggled in the settings page.

These arrows are displayed when a chess engine is playing the game.

Arrow Description
The best move arrow The best move (may feature a score gauge).
The ponder move arrow The probable next opponent move.
The best reply arrow The best reply to the next opponent move (may feature a score gauge).
TABLE 3.10: Engine computations arrows
Note
In a human vs engine game, these arrows are only displayed if the engine information subpage is currently active. In an engine duel, these arrows are always displayed.

These arrows are displayed when analysis or the evaluation graph are enabled, and may feature a score gauge.

Arrow Description
The forced move arrow The only legal move.
The engine #1 arrow The evaluation of engine 1.
The engine #2 arrow The evaluation of engine 2.
The engine #3 arrow The evaluation of engine 3.
The engine #4 arrow The evaluation of engine 4.
The engine #5 arrow The evaluation of engine 5.
The engine #6 arrow The evaluation of engine 6.
The engine #7 arrow The evaluation of engine 7.
The engine #8 arrow The evaluation of engine 8.
TABLE 3.11: Analysis arrows

These arrows are displayed when analysis is enabled and when the endgame tablebases online service could be queried (the board must not contain more than 7 pieces).

Arrow Description
The tablebase win arrow The path to the EGTB win.
The tablebase cursed win arrow The path to the EGTB cursed win.
The tablebase draw arrow The path to the EGTB draw.
The tablebase blessed loss arrow The path to the EGTB blessed loss.
The tablebase loss arrow The path to the EGTB loss.
TABLE 3.12: Endgame tablebases arrows

Cursed wins and blessed losses are mates that can be forced, but not under the fifty-move rule.

Arrow Description
The pending clock move arrow A legal move not yet confirmed by a clock tap.
TABLE 3.13: OTB/OTP play arrows
Arrow Description
The premove arrow The current premove, and the move currently being pressed in the opening explorer.
The puzzle hint arrow The puzzle hint.
TABLE 3.14: Miscellaneous arrows

Some arrows may feature a score gauge.

When the Display relative eval option is enabled in the settings page, the score gauge is relative to the side to move and ranges from 0 to 400 centipawns.

Arrow Description
The -4.0 arrow The side to move is losing by 400 centipawns or more.
The -2.0 arrow The side to move is losing by 200 centipawns.
The 0.0 arrow The score is absent, zero or negligible.
The +2.0 arrow The side to move is winning by 200 centipawns.
The +4.0 arrow The side to move is winning by 400 centipawns or more.
TABLE 3.15: Relative score gauge examples

When the Display relative eval option is disabled in the settings page, the score gauge is relative to white, ranges from -400 to 400 centipawns and is centered at 0.

Arrow Description
The -4.0 arrow Black is winning by 400 centipawns or more.
The -2.0 arrow Black is winning by 200 centipawns.
The 0.0 arrow Sides are equal.
The +2.0 arrow White is winning by 200 centipawns.
The +4.0 arrow White is winning by 400 centipawns or more.
TABLE 3.16: Absolute score gauge examples
The eval gauge displaying a +0.25 eval
FIGURE 3.12: The eval gauge displaying a +0.25 eval

The eval gauge displays chess engine and EGTB evaluations.

The displayed value is expressed in pawn units and clamped to the range [-4.0, +4.0].

Note
For clarity purposes, the eval gauge ignores the Display relative eval setting: it always displays absolute evaluations.

When analysis is in progress, the eval gauge displays the following data:

  • if an EGTB result is available, that result;
  • otherwise, if one of the analyzers has computed a mate, that mate;
  • otherwise, the average evaluation of the participating analyzers.

Otherwise, the eval gauge averages evaluation data provided by visible subpages that are evaluation providers as follows:

  • if a visible subpage has computed a mate, that mate;
  • otherwise, the average evaluation of the visible subpages.

Subpages that provide evaluations are:

Finally, if no visible subpages provide evaluations and if the current move has an auto annotation, the eval gauge displays the engine evaluation contained in the annotation.

Note
If the current position has an automatic result (checkmate, stalemate, draw by insufficient mating material, draw by fivefold repetition or draw by seventy-five-move rule), evaluation providers are not consulted: the eval gauge always displays the automatic result.

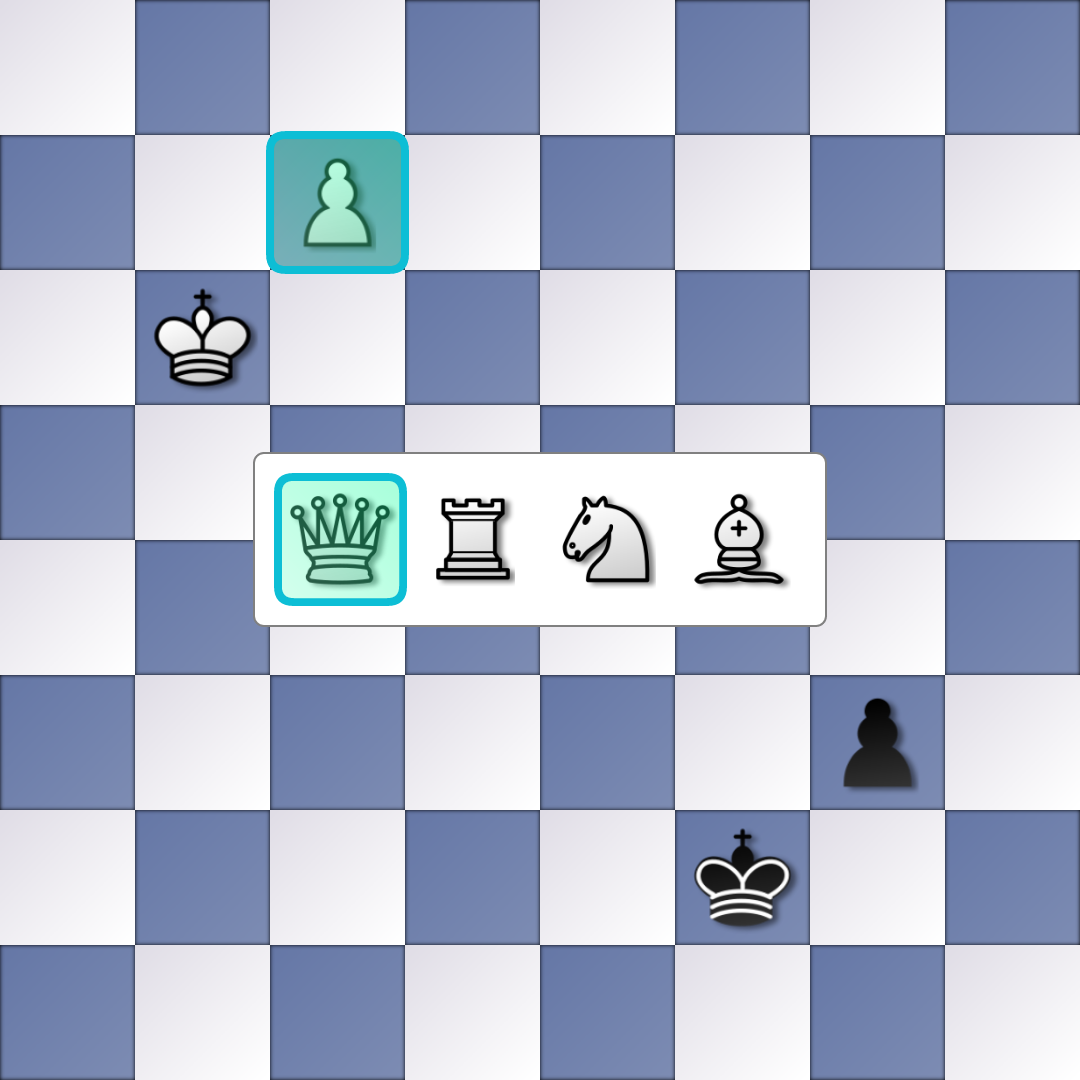

The promotion piece selector
FIGURE 3.13: The promotion piece selector

When a promotable pawn is selected, a promotion piece selector appears in the center of the chessboard.

Select the piece to promote the pawn to, then play the promotion move.

The subpage area appears at the bottom of the game page.

The move list navigation buttons
FIGURE 3.14: The move list navigation buttons

You can navigate in the move list by using the navigation buttons in the bottom right corner of the screen. Keep a button pressed for faster navigation.

Toolbar buttons are described below. Note that some of these buttons are only available in a given context (for instance only if the game is in progress, or only for engine games).

Button Description
The “flip” toolbar button Flip the board.
The “resign” toolbar button Resign the game.
The “draw” toolbar button Offer or claim a draw.
The “draw armed” toolbar button Claim a draw after next move.
The “takeback” toolbar button Request a takeback.
The “resume” toolbar button Start or resume the game.
The “pause” toolbar button Pause the game.
The “rematch” toolbar button Offer a rematch.
The “start analysis” toolbar button Start analysis.
The “stop analysis” toolbar button Stop analysis. If long-pressed, pause analysis.
The “resume analysis” toolbar button Resume analysis.

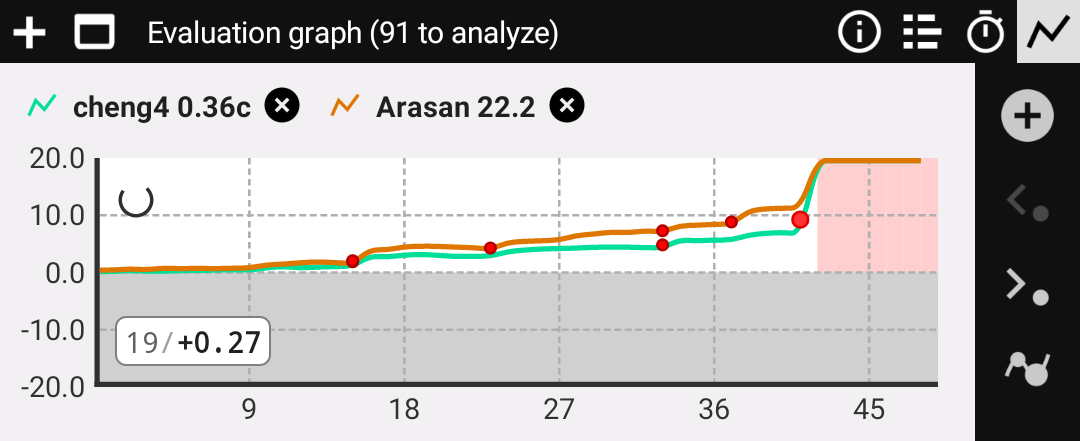

The “enable evaluation graph” toolbar button Enable the evaluation graph.
The “disable evaluation graph” toolbar button Disable the evaluation graph.
The “enable opening explorer” toolbar button Enable the opening explorer.
The “disable opening explorer” toolbar button Disable the opening explorer.

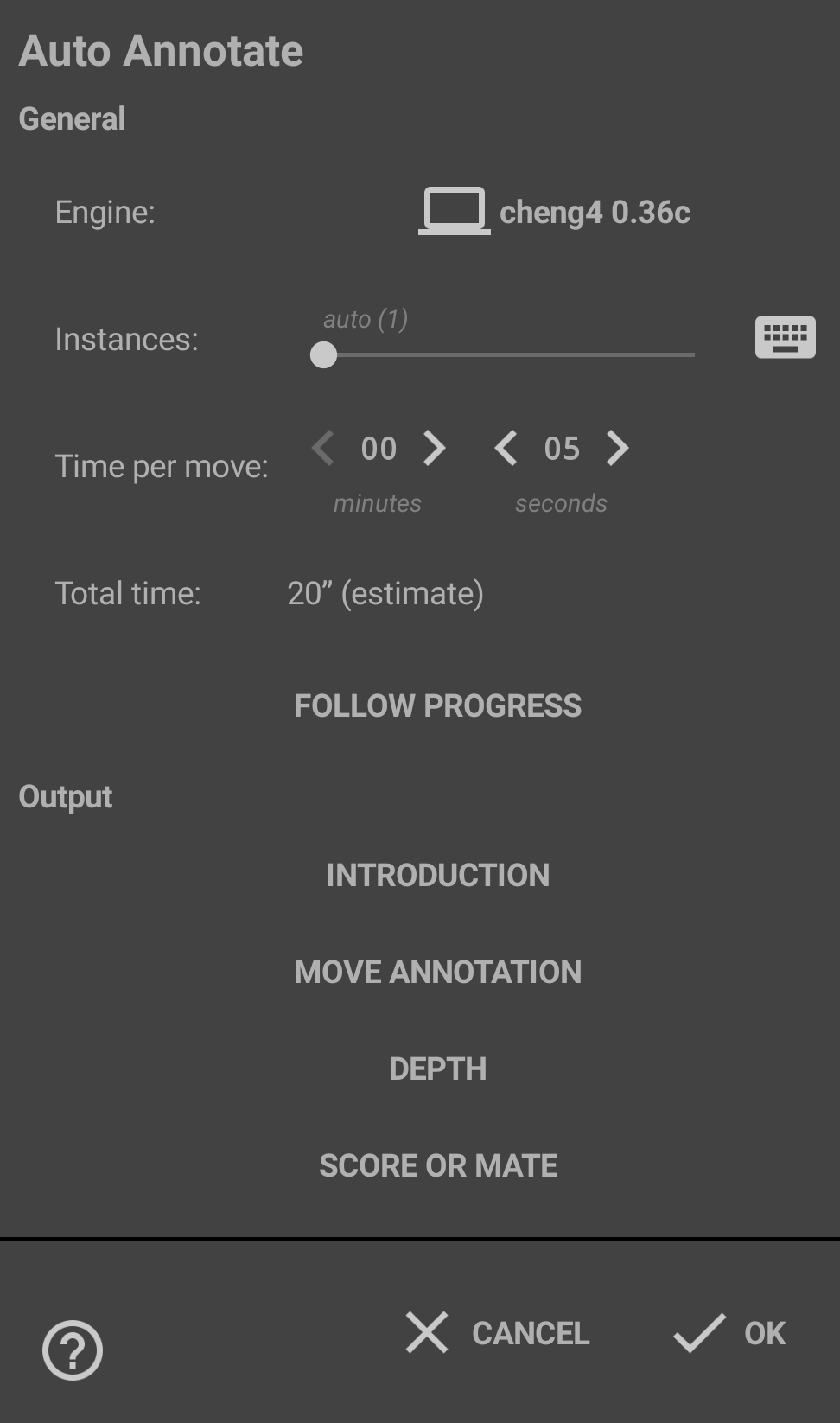

The “auto annotate” toolbar button Open the auto annotate dialog.
TABLE 3.17: Toolbar buttons
Note
In a two-player game using a physical clock, the start/pause/resume buttons are only displayed if the physical clock option is not set to 25.

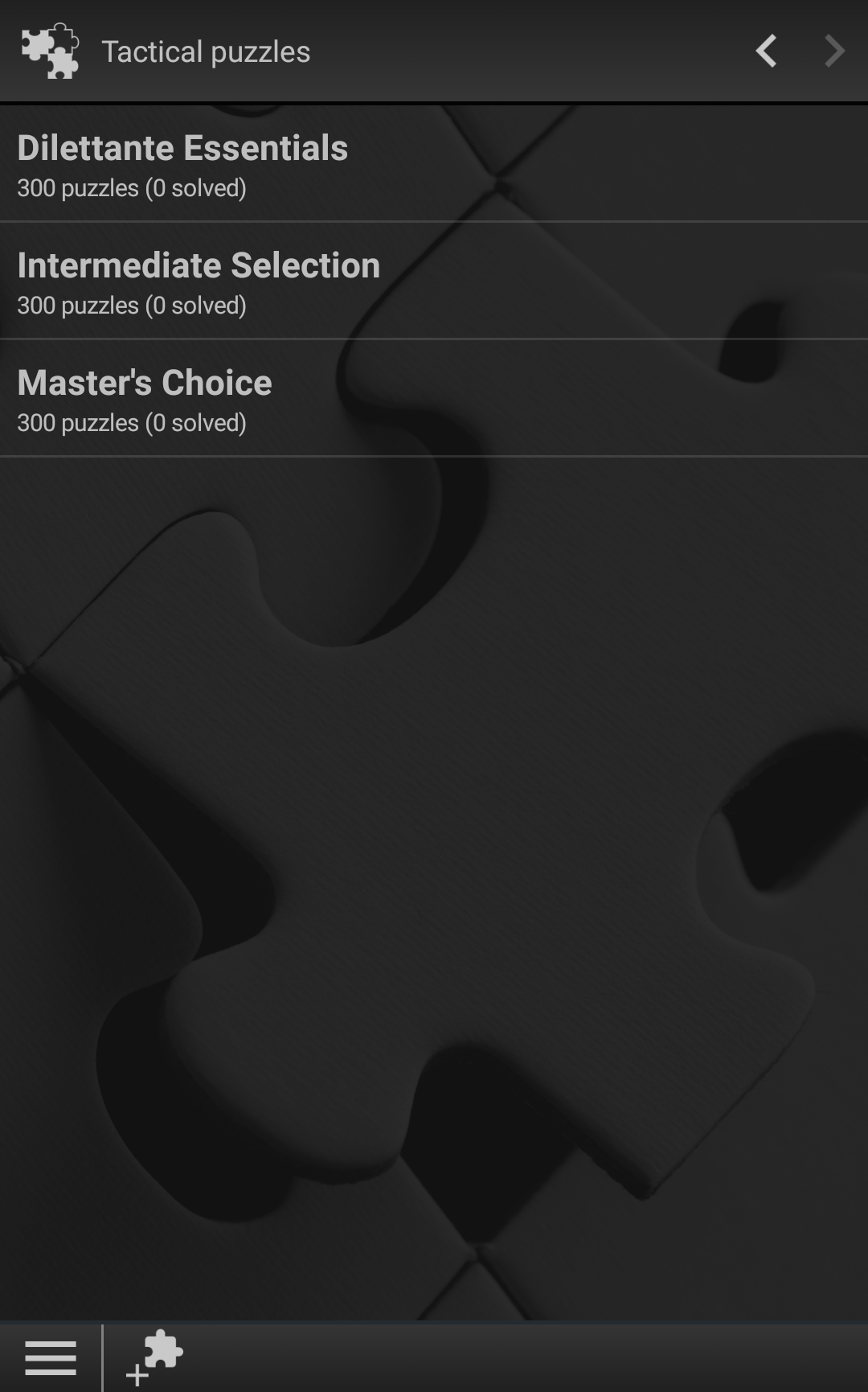

The tactical puzzles page
FIGURE 3.15: The tactical puzzles page

The tactical puzzles page allows you to open a tactical puzzle collection.

Acid Ape Chess ships with three puzzle collections of increasing difficulty, and you can import a PGN file as a custom puzzle collection.

Pressing a puzzle collection opens the puzzle collection page.

Button Description
The “import puzzle collection” toolbar button Import a PGN file.
TABLE 3.18: Toolbar buttons

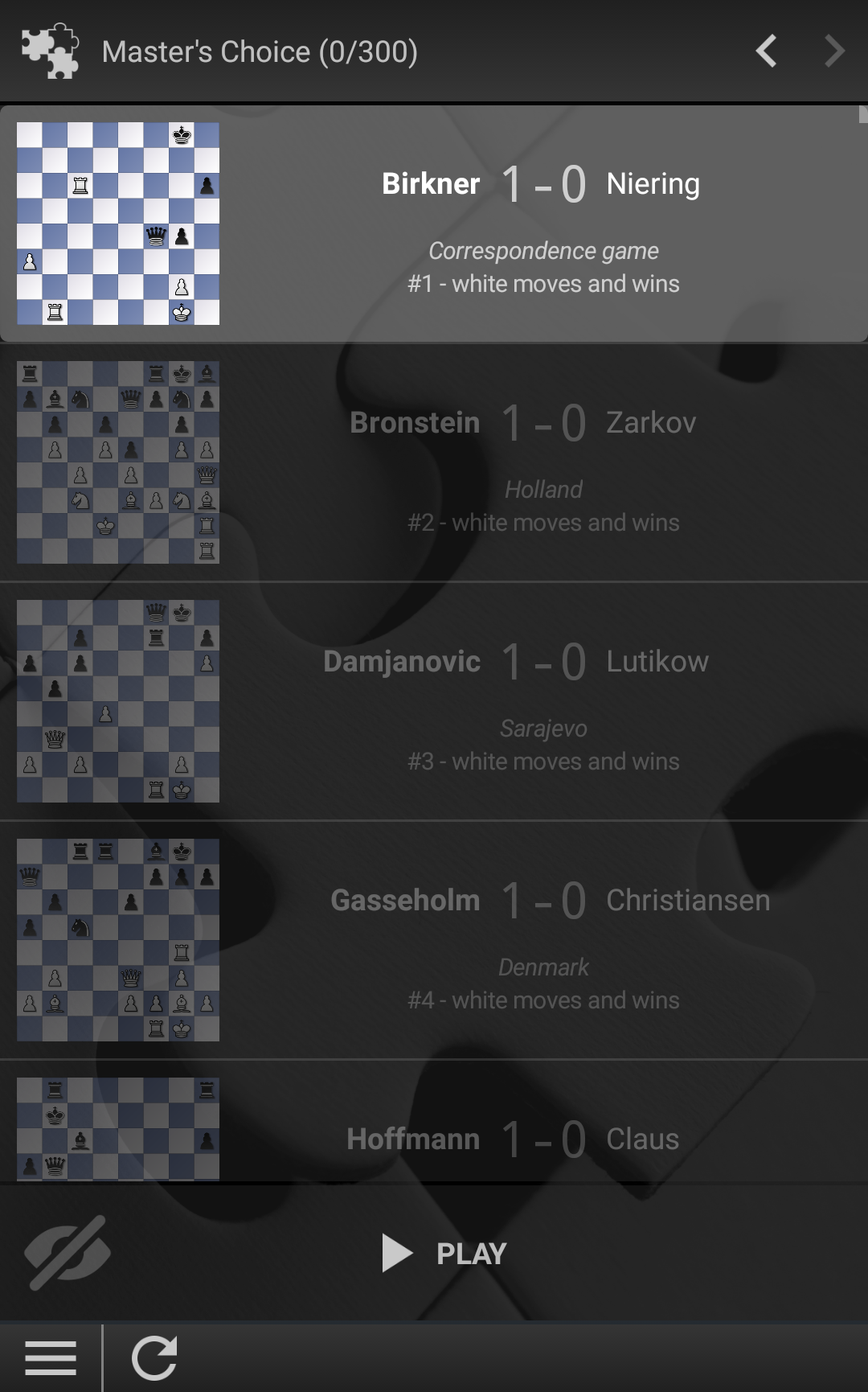

The puzzle collection page
FIGURE 3.16: The puzzle collection page

The puzzle collection page allows you to play and replay the tactical puzzles in a given puzzle collection.

Blindfold mode can be enabled with the large blindfold toggle at the left of the PLAY button.

Button Description
The “reset puzzles” toolbar button Reset puzzles to their unsolved state.
TABLE 3.19: Toolbar buttons
The PGN explorer page
FIGURE 3.17: The PGN explorer page

The PGN explorer page allows you to manipulate and open PGN files stored in the Acid Ape Chess app-specific storage area.

While Android does not let you access this storage area from outside Acid Ape Chess, the PGN explorer allows you to import/export files by leveraging the system file picker.

Warning
If you uninstall Acid Ape Chess, Android deletes the app-specific storage area containing your PGN files. It is therefore recommended that you periodically back up your games using the built-in export feature, or that you enable the system backup.

The PGN explorer page can be accessed by using Game > Explorer in the main menu.

The PGN explorer functions like a typical mobile file manager, with first-class support for PGN files:

  • a PGN file containing a single game is displayed as a normal file;
  • a PGN file containing no games or more than one game is displayed as a virtual directory where each game of the PGN file is a virtual file.

This design allows you to navigate inside a PGN file and manipulate individual games as if they were files (delete them from the PGN file, copy them and so on).

The header

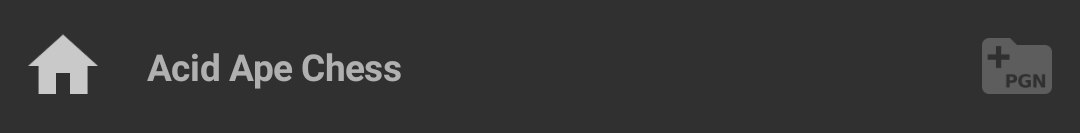

FIGURE 3.18: The header

The header contains the Home button, the breadcrumb and the Create button.

Press the home button to navigate to the home directory: Acid Ape Chess/Games.

This is where your games are autosaved and adjourned.

Long-press the home button to open the home directory in a new page.

Scroll the breadcrumb and press one of its components to navigate to the corresponding location.

Long-press a component to open that location in a new page.

Press the create button to create a directory or an empty PGN file.

The file or directory will be created in the current location.

To operate on a single item (game, file or directory), use its context menu by long-pressing it.

To operate on multiple items, use the Select toolbar button to enable multiple selection mode.

The Select toolbar button
FIGURE 3.19: The Select toolbar button

File operations are achieved with the cut/copy/paste file management semantics you are used to.

By default, the PGN explorer is in single selection mode (pressing an item opens it). Pressing the Select toolbar button enables multiple selection mode. Pressing it again selects all items. And again, clears the selection.

When multiple selection mode is enabled:

  • pressing an item selects or deselects it;
  • the multiple selection toolbar is displayed, allowing you to operate on the selected items.

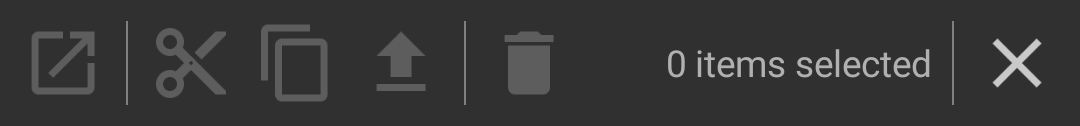

The multiple selection toolbar.
FIGURE 3.20: The multiple selection toolbar.

The multiple selection toolbar contains the following buttons (from left to right):

  • the Open button: open the selected games in new game pages;
  • the Cut button: start a cut operation on the selected items;
  • the Copy button: start a copy operation on the selected items;
  • the Export button: export the selected items;
  • the Delete button: move the selected items to the trash;
  • the Close button: disable multiple selection mode.

The PGN explorer maintains a clipboard used for file operations.

When cut items are in the clipboard, a toolbar similar to the following one appears:

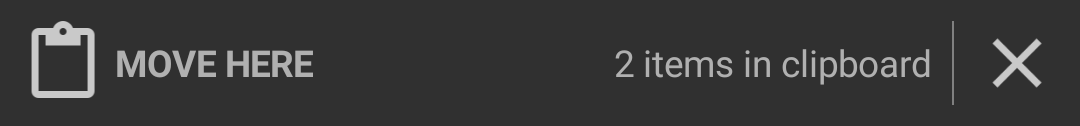

The clipboard toolbar for cut items
FIGURE 3.21: The clipboard toolbar for cut items

Pressing the MOVE HERE button effectively launches the move operation. Pressing the Close button cancels the operation.

When copied items are in the clipboard, a toolbar similar to the following one appears:

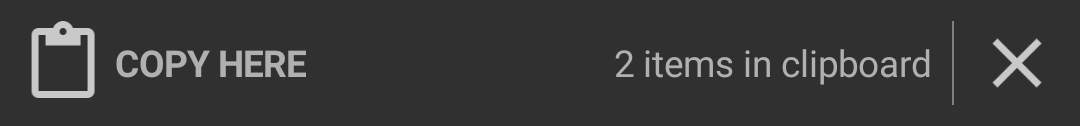

The clipboard toolbar for copied items
FIGURE 3.22: The clipboard toolbar for copied items

Pressing the COPY HERE button effectively launches the copy operation. Pressing the Close button cancels the operation.

The trash is located in Acid Ape Chess, the root location. It can be accessed with the breadcrumb.

Button Description
The “select” toolbar button Enable multiple selection mode.
The “change sort order” toolbar button Change the sort order.
The “import” toolbar button Import files into the current location.
TABLE 3.20: Toolbar buttons
Note
The sort order is location-specific and saved to the Acid Ape Chess settings.
The position editor page

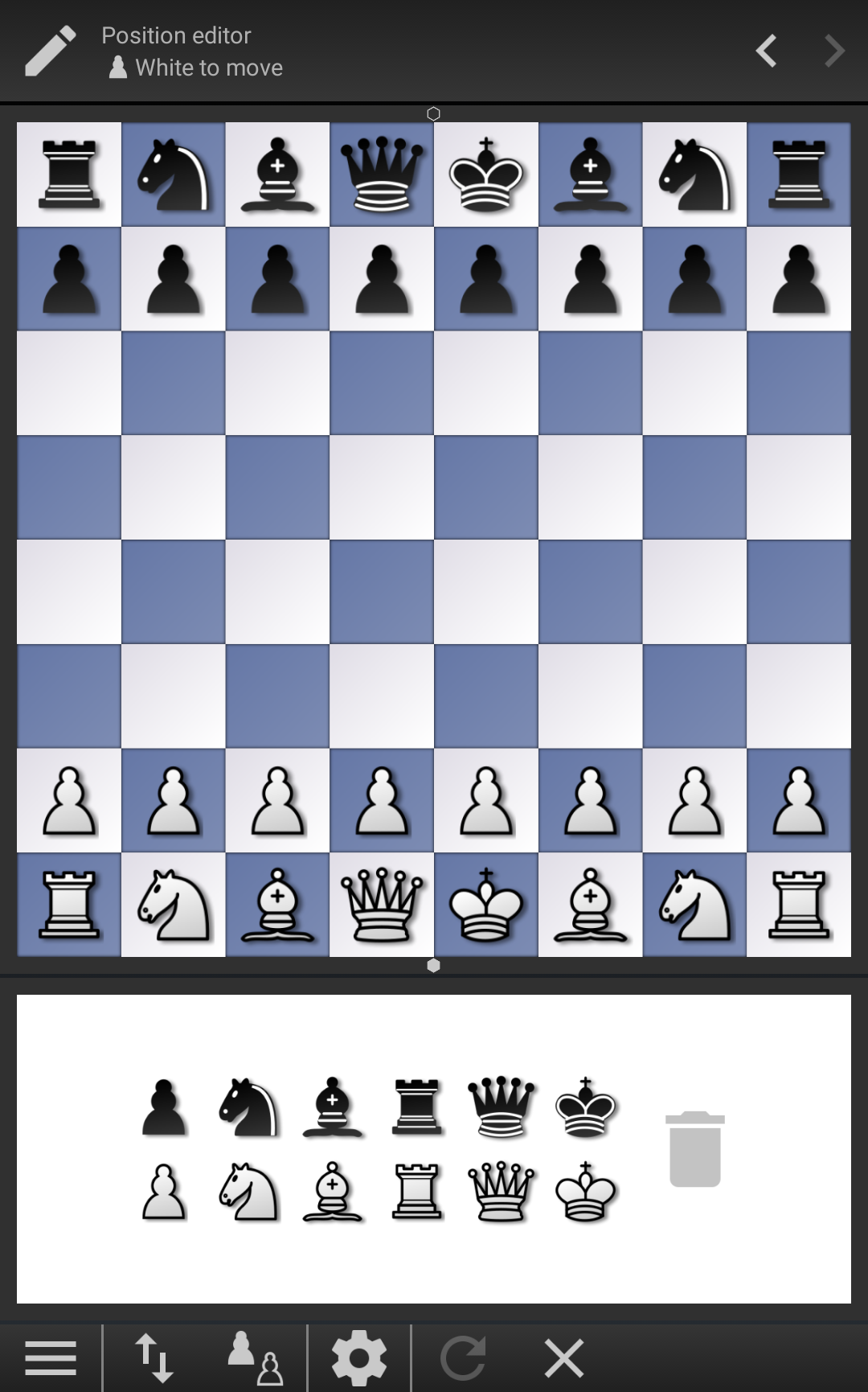

FIGURE 3.23: The position editor page

The position editor page allows you to edit a chess position and use it for various tasks.

The position editor page can be accessed by using Position > Edit in the main menu.

In the context of inter page communication, the position editor page is both a game data source and a game data sink.

Select a piece in the bottom piece picker. This piece becomes the selected source piece.

You can now press one or more board squares to add the selected source piece to these squares.

If a square is already occupied, it is replaced by the selected source piece.

To remove a piece, first unselect the selected source piece (if any) by pressing it in the bottom piece picker, then:

  1. press the piece to remove;
  2. press the trashcan icon.

To edit the position properties (move number, castle rights, etc.), press the properties button in the page toolbar.

To toggle the side to move, press the side to move button in the page toolbar (the side to move is displayed in the page title bar).

If you edit the position in a way that makes it illegal, a red warning message is displayed at the top of the screen.

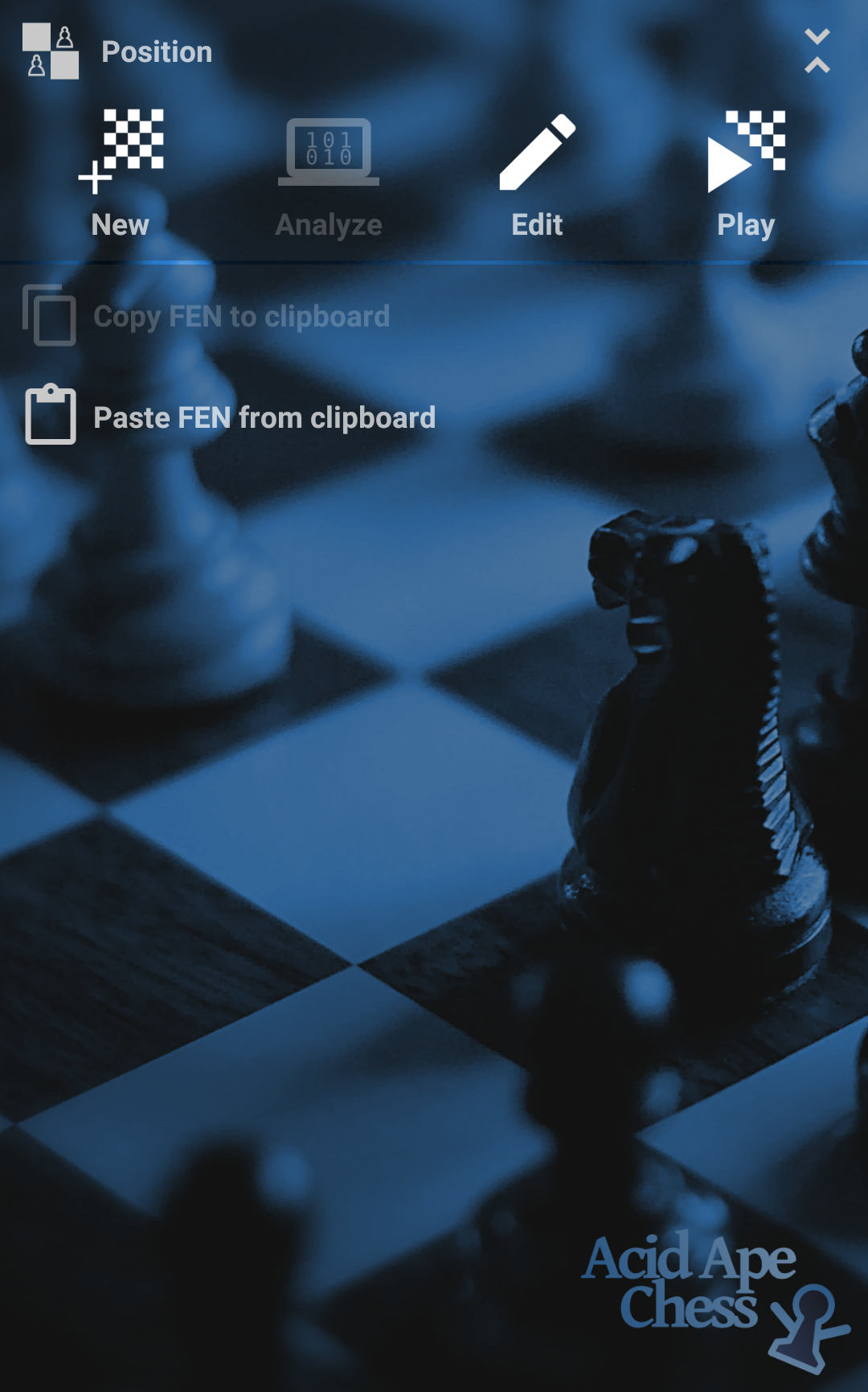

Use Position > Analyze in the main menu. This creates a new game page in which position analysis is enabled on the position.

Use Game > Save in the main menu. This opens a dialog which allows you to save the position to a PGN file.

Use Position > Copy FEN to clipboard in the main menu.

Use Position > Play in the main menu. This opens the play dialog, allowing you to create an OTB, OTP or engine game from the position.

Note
In Acid Ape Chess, this is how you can assign a chess handicap (for instance pawn odds) to one side. Edit the initial position to match the desired handicap, then create a game out of it.
Button Description
The “flip” toolbar button Flip the board.
The “toggle side to move” toolbar button Toggle the side to move.
The “properties” toolbar button Edit the position properties.
The “reset” toolbar button Reset to the standard initial position.
The “clear” toolbar button Remove all pieces from the board.
TABLE 3.21: Toolbar buttons
The games page
FIGURE 3.24: The games page

The games page lists the games currently in progress on FICS and ICC.

Press a game to observe it.

The games page can be accessed by using Online / OTB > Games in the main menu.

Button Description
The “refresh” toolbar button Refresh the game list.
TABLE 3.22: Toolbar buttons
The players page
FIGURE 3.25: The players page

The players page lists:

The players page can be accessed by using Online / OTB > Players in the main menu.

The OTB tab lists the players of the Acid Ape Chess game database.

The player list can be filtered by name (using the search box), by sex (using the toolbar button) and by ELO (using the slider at the bottom of the tab). The sort order can be changed using the toolbar button.

Pressing a player opens the OTB player information page.

Button Description
The “toggle favorites” toolbar button Toggle between displaying all players or only favorite ones.
The “cycle sex” toolbar button Cycle the player sex filter.
The “change sort order” toolbar button Change the sort order.
TABLE 3.23: Toolbar buttons

These tabs list the online users currently connected to the respective chess server.

Pressing a user opens the user information page.

Note
The Lichess player list is not very representative, as Lichess servers only list 50 users (seemingly chosen at random). You can however search for specific Lichess players by pressing Search for more in the toolbar of the Lichess tab.
The OTB player information page
FIGURE 3.26: The OTB player information page

The OTB player information page displays the data, statistics and entire official game history of a given OTB player.

Press a game to open it in a new game page.

You can conveniently search for the player on the Internet using the page toolbar.

The OTB player information page can be accessed via Online / OTB > Players in the main menu.

In some cases, it can also be accessed by pressing the name of a player in the game information subpage.

The OTB player information page retrieves its data online from the large Acid Ape Chess game database.

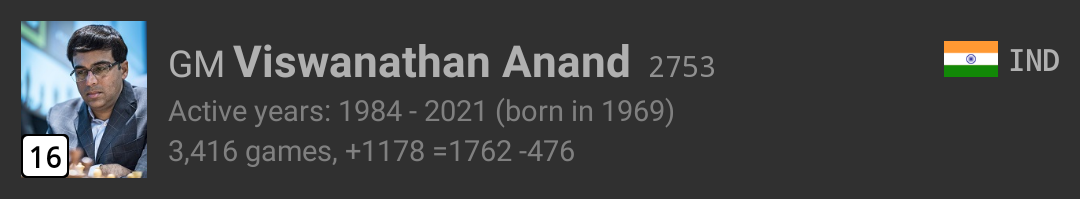

The player information dock
FIGURE 3.27: The player information dock

The player information dock displays the player's title, full name, ELO rating, federation and statistics.

These statistics include the player's official record in the standard +wins =draws -losses form, and are updated when the game list is narrowed down via filtering.

You can filter games by entering search terms in the search box, and/or by using the filter buttons in the page toolbar.

Button Description
The “favorite on” toolbar button Mark or unmark the player as a favorite.
The “opponent sex filter” toolbar button Cycle the opponent sex filter.
The “color and ECO filter” toolbar button Filter the game list by color and/or opening.
The “web” toolbar button Search for the player on the web.
The “Wikipedia” toolbar button Search for the player on Wikipedia.
TABLE 3.24: Toolbar buttons

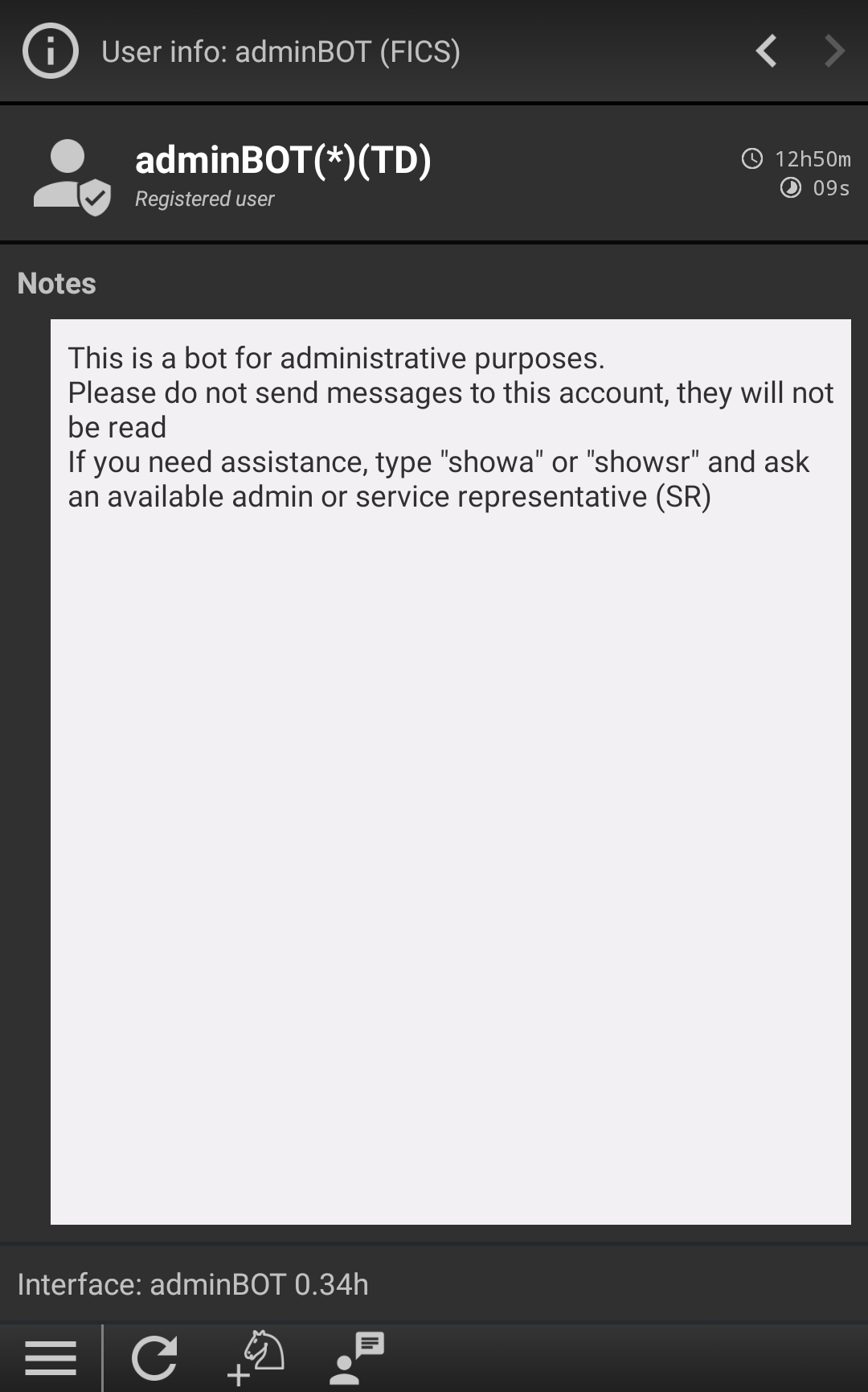

The user information page
FIGURE 3.28: The user information page

The user information page displays various information about a user connected to FICS, ICC or Lichess.

The user information page for a particular user can be accessed via Online / OTB > Players in the main menu.

In some cases, it can also be accessed by pressing the name of a player in the game information subpage.

Your own chess server profile can be accessed via Online / OTB > My profile in the main menu, or in some cases, by pressing your name in the game information subpage.

Depending on the server and user, the following user information may be included:

  • the user handle;
  • the user type (registered or unregistered);
  • the time since the user has connected to the server;
  • the time the user has been idle;
  • whether the user has Timeseal support (FICS/ICC only);
  • the user ratings and statistics in various categories;
  • the game history of the user (games can be opened by pressing them);
  • the user notes.

Toolbar buttons are described below. Note that some of these buttons are only available for some user types and/or servers.

Button Description
The “refresh” toolbar button Refresh the user information.
The “web” toolbar button Open the user's web profile.
The “favorite on” toolbar button Mark or unmark the user as a friend.
The “challenge” toolbar button Challenge the user.
The “chat” toolbar button Chat with the user.
The “edit” toolbar button Edit your profile notes.
TABLE 3.25: Toolbar buttons

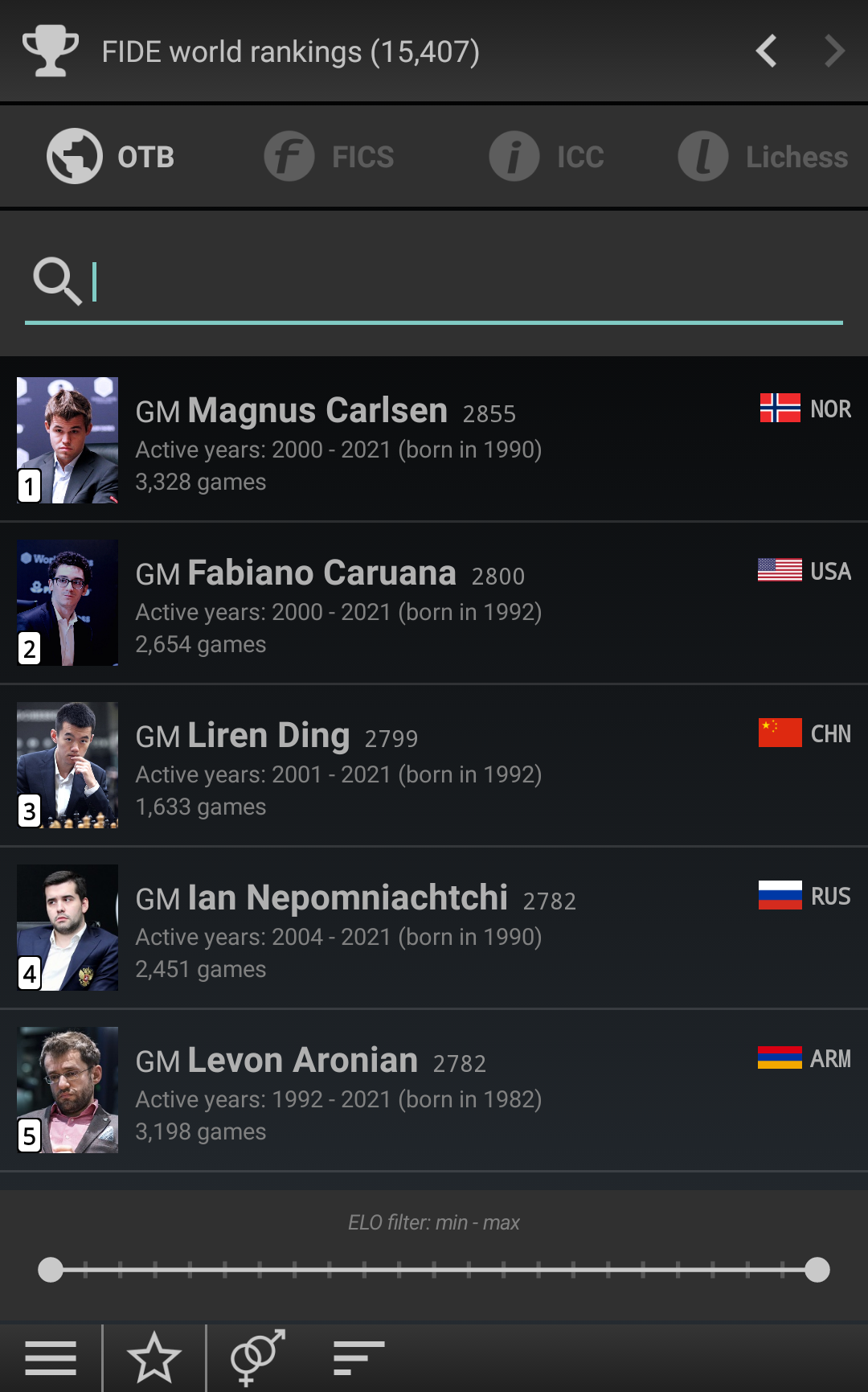

The rankings page
FIGURE 3.29: The rankings page

The rankings page displays:

The rankings page can be accessed by using Online / OTB > Rankings in the main menu.

The OTB tab displays the FIDE world rankings contained in the large Acid Ape Chess game database.

The player list can be filtered by name (using the search box), by sex (using the toolbar button) and by ELO (using the slider at the bottom of the tab). The sort order can be changed using the toolbar button.

Pressing a player opens the OTB player information page.

Button Description
The “toggle favorites” toolbar button Toggle between displaying all players or only favorite ones.
The “cycle sex” toolbar button Cycle the player sex filter.
The “change sort” order toolbar button Change the sort order.
TABLE 3.26: Toolbar buttons

These tabs display the rankings of the respective chess server.

Pressing a user opens the user information page.

The chat page
FIGURE 3.30: The chat page

The chat page allows you to chat with other FICS and ICC users.

The chat page can be accessed by using Online / OTB > Chat in the main menu.

The chat page contains one tab per FICS/ICC chess account.

A number of standard chat channels are supported by Acid Ape Chess.

Acid Ape Chess sends chat messages using the tell FICS/ICC command.

Channel Description
#1 Server help.
#4 Guest help.
#50 Registered chat.
#53 Guest chat.
TABLE 3.27: Supported FICS channels
Channel Description
#1 Server help.
#250 Lobby.
TABLE 3.28: Supported ICC channels
The relayed games page

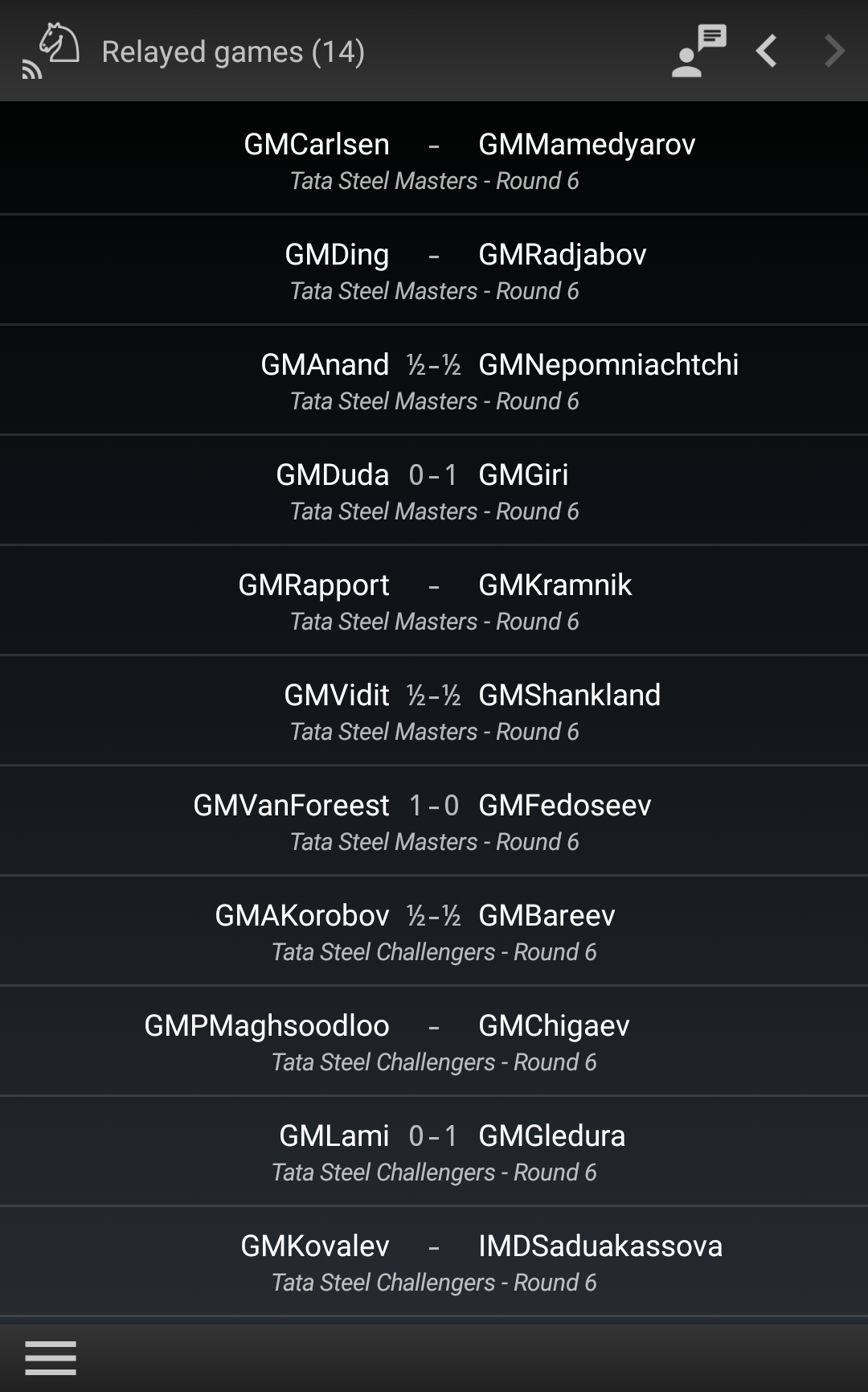

FIGURE 3.31: The relayed games page

The relayed games page lists OTB games relayed live by FICS.

The relayed games page can be accessed by using Online / OTB > Relayed games in the main menu.

The server notifications page

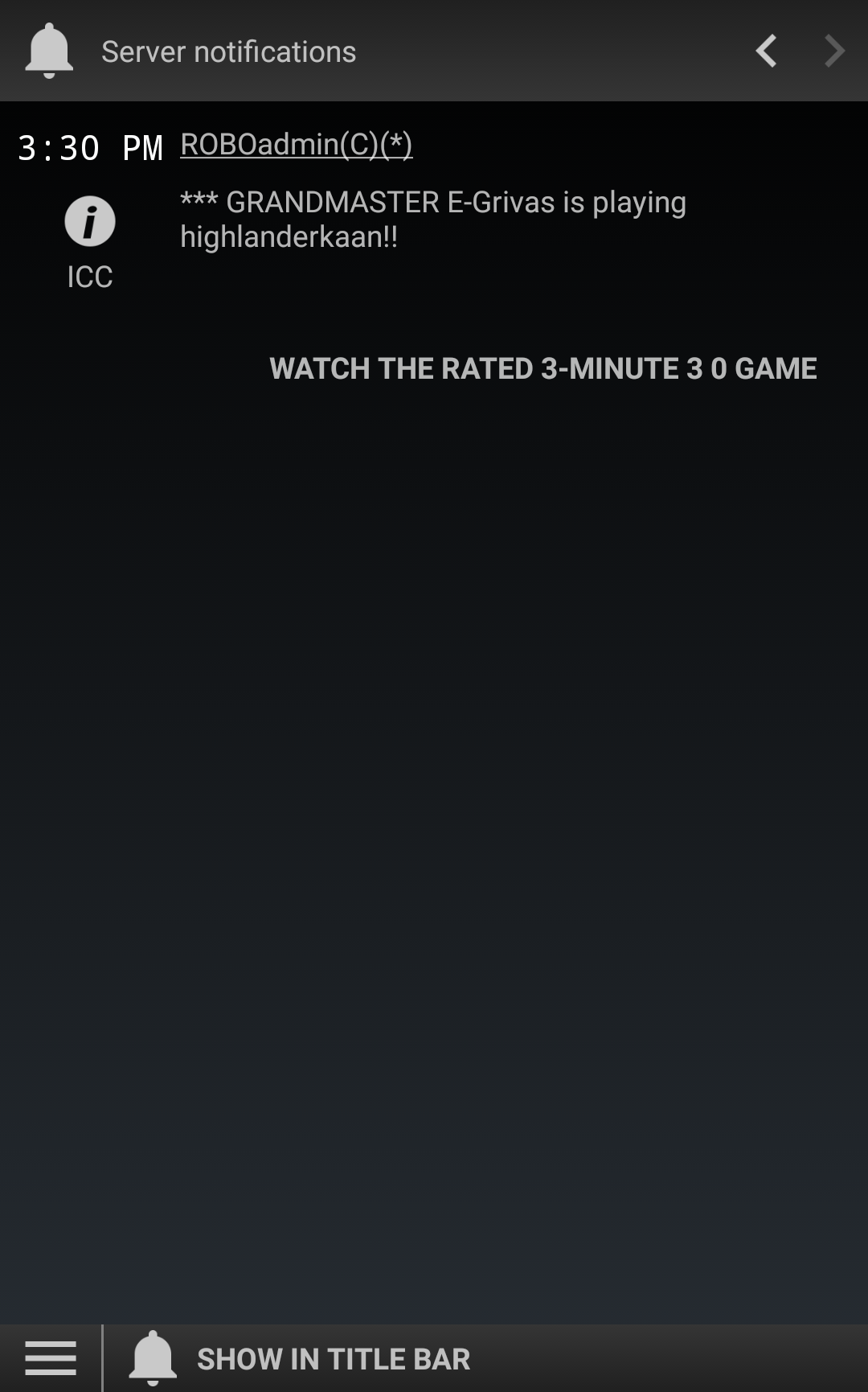

FIGURE 3.32: The server notifications page

The server notifications page displays the notifications received from FICS and ICC.

The server notifications page can be accessed by using Online / OTB > Server notifications in the main menu.

When Acid Ape Chess is connected to FICS and/or ICC, it automatically records the server notifications it receives (even if the server notifications page is not opened).

Each server notification also triggers a title bar notification, unless you disable the SHOW IN TITLE BAR toggle in the page toolbar.

Some notifications can contain action buttons. For instance, a notification about an ongoing game will usually contain a button for observing the game.

The console page

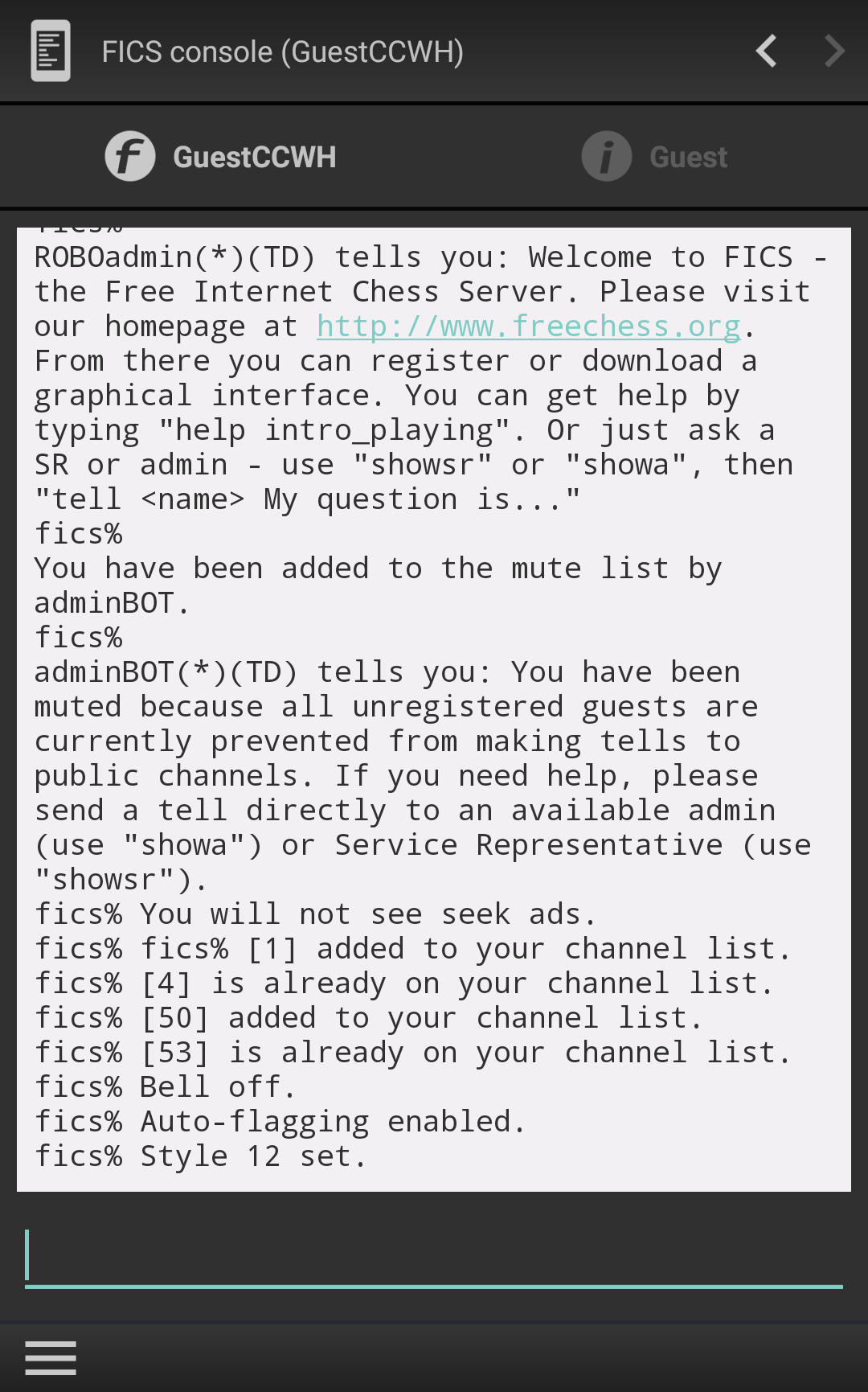

FIGURE 3.33: The console page

The console page allows you to use the FICS and ICC consoles.

The console page can be accessed by using Online / OTB > Console in the main menu.

The console page contains one tab per FICS/ICC chess account.

To display the server help, type help.

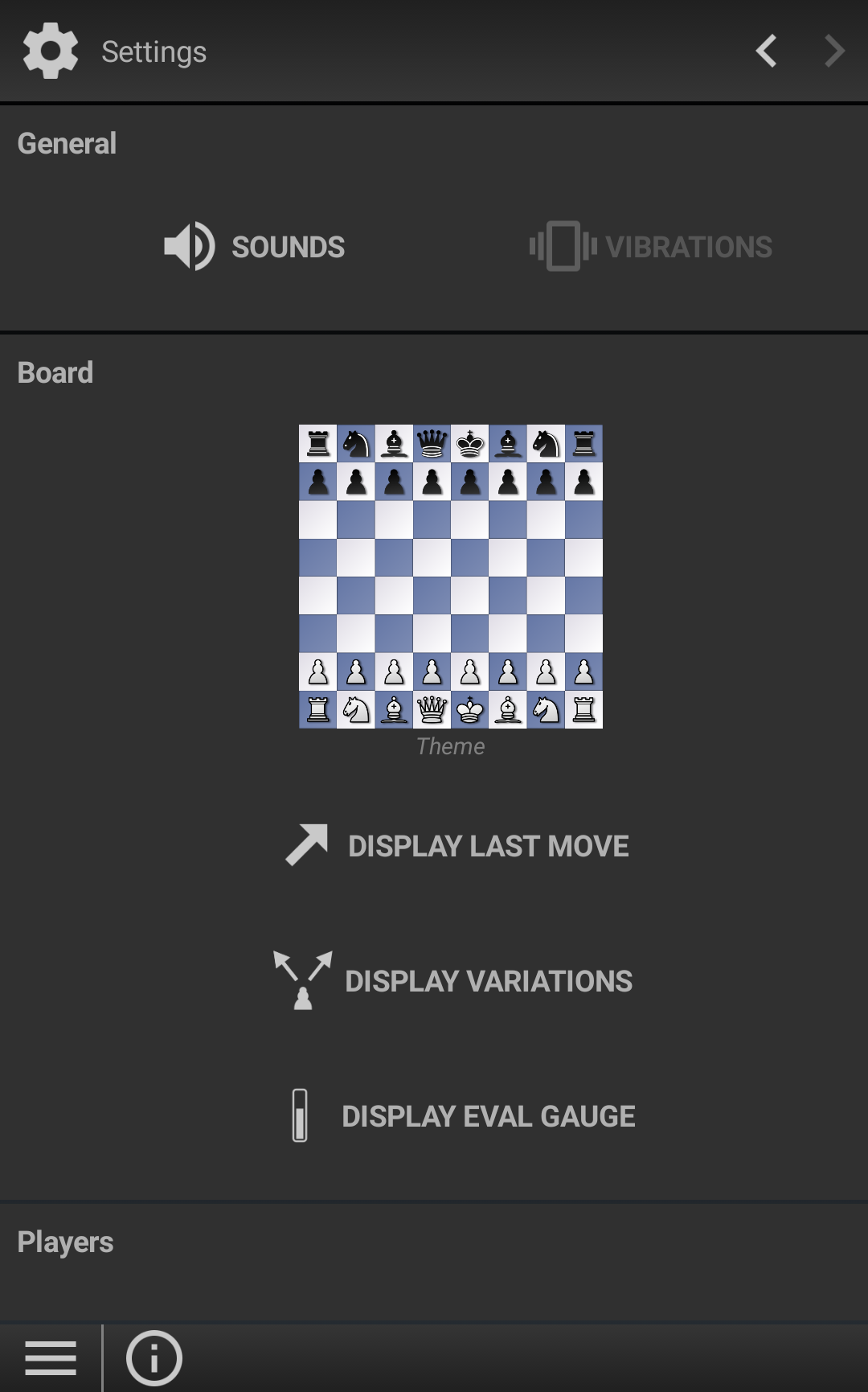

The settings page
FIGURE 3.34: The settings page

The settings page allows you to configure Acid Ape Chess.

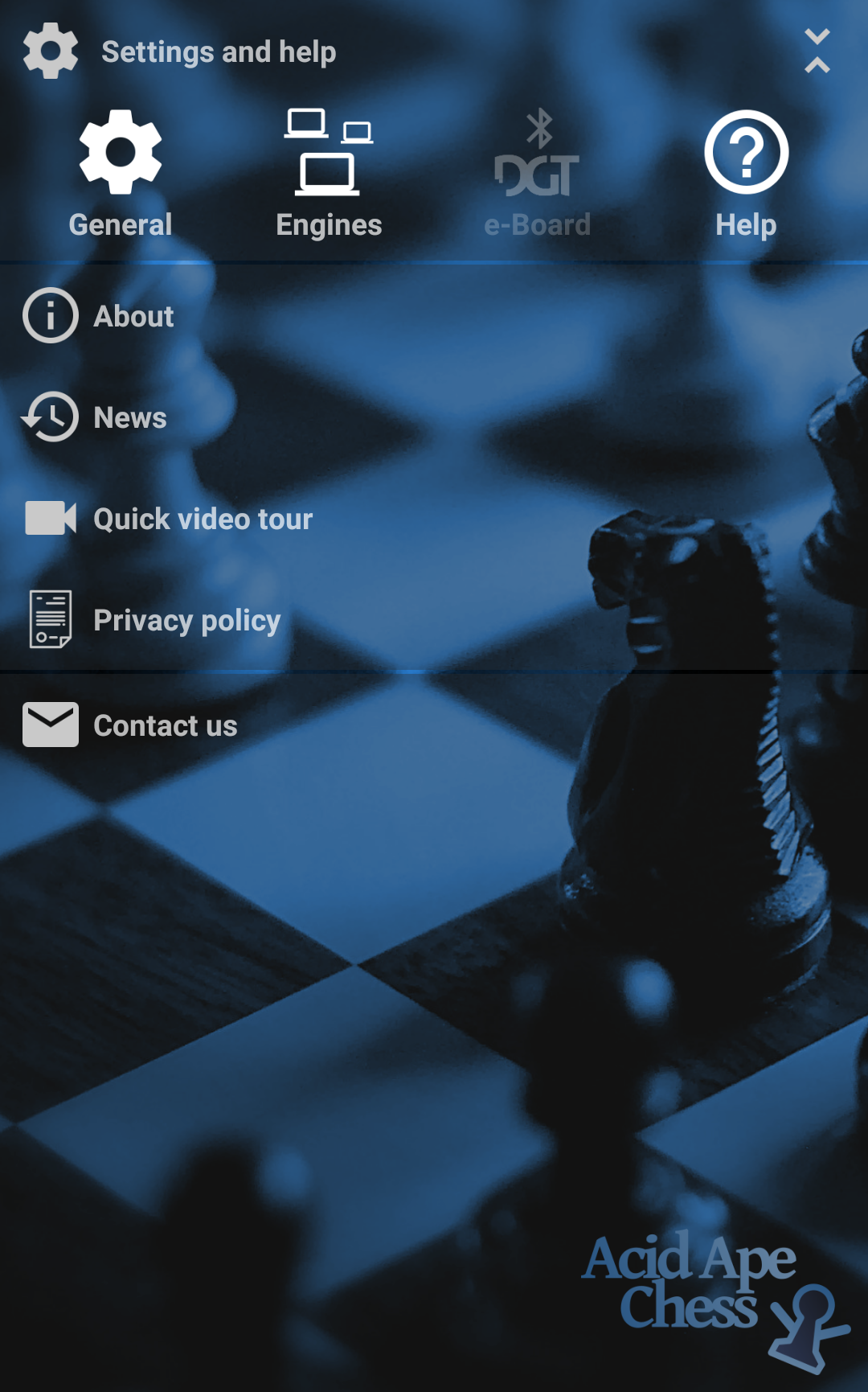

The settings page can be accessed by using Settings and help > General in the main menu.

Item Description
Sounds Toggle sounds.
Vibrations Toggle vibrations.
TABLE 3.29: General settings
Note
For usability reasons, sounds and vibrations are always enabled while the fullscreen clock is in use.
Item Description
Theme Open the board theme page.
Display last move Toggle the last move arrow.
Display variations Toggle variation arrows.
Display eval gauge Toggle the eval gauge.
TABLE 3.30: Board settings
Item Description
Manage players Open the player manager page.
TABLE 3.31: Players settings
Item Description
Always annunciate moves Toggle whether to always say opponent moves
TABLE 3.32: Speech synthesis settings
Note
If Always annunciate moves is off, opponent moves are only announced if a physical board is connected or if blindfold mode is enabled.
Item Description

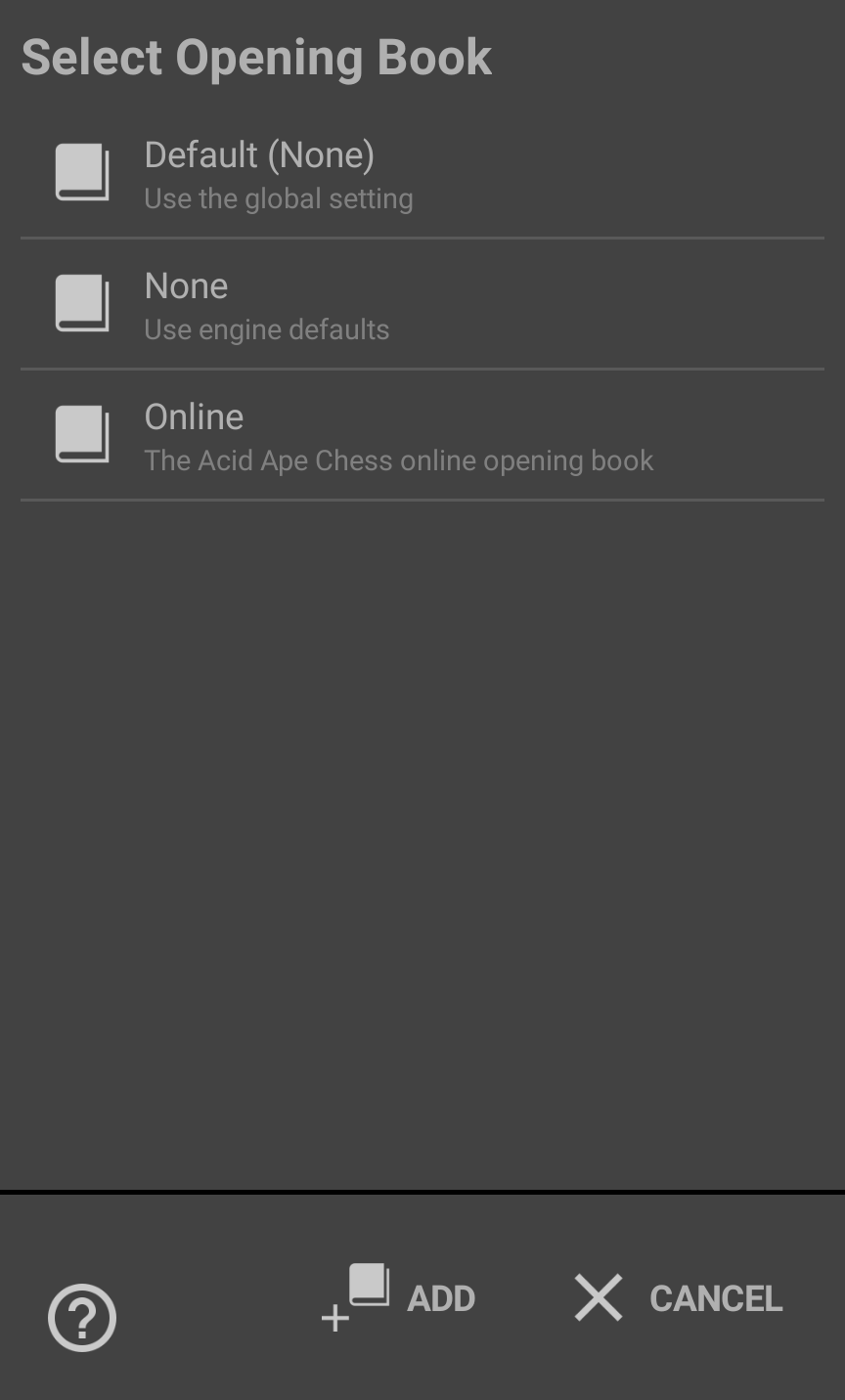

Default opening book Select a default opening book.
Display relative eval Toggle whether to display chess engine evaluations relative to the side to move.
Principal variations The number of best moves to display.
TABLE 3.33: Chess engines settings
Note
The Display relative eval option does not affect auto annotation nor the eval gauge, both of which always use absolute evaluations (for better interoperability and readability).
The board theme page
FIGURE 3.35: The board theme page

The board theme page allows you to choose from a list of predefined chessboard themes and piece sets, and to toggle coordinates display.

The board theme page can be accessed by pressing the Theme button in the Board section of the settings page.

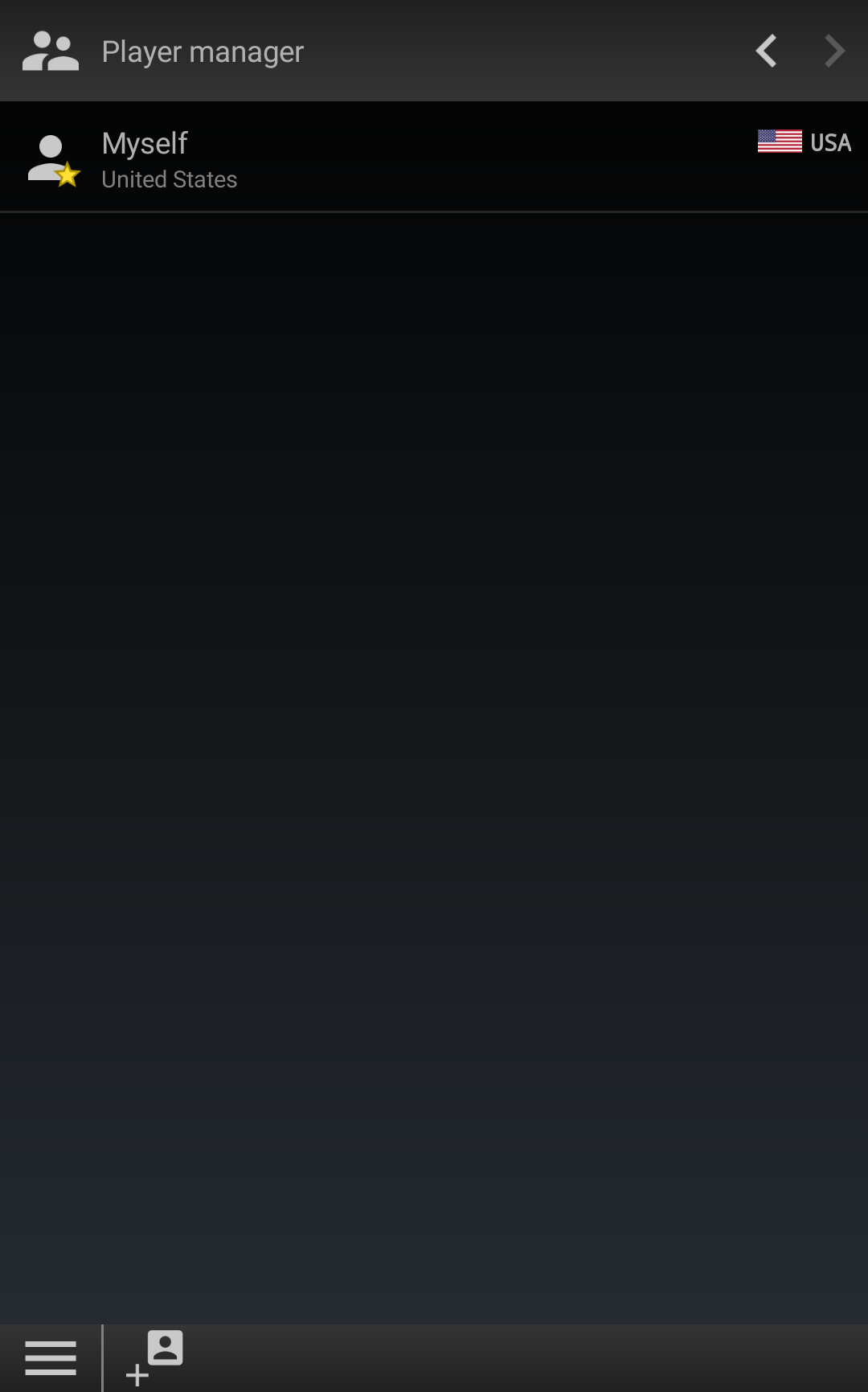

The player manager page
FIGURE 3.36: The player manager page

The player manager page allows you to add, remove and edit human players that will be interacting with this installation of Acid Ape Chess.

By default, your player entry is automatically added as Myself; your country is autodetected from the language settings of your device.

You can manage players with the page toolbar or the context menu of a player.

The player manager page can be accessed by pressing MANAGE PLAYERS in the Players section of the settings page.

The default player is indicated with a distinguishable star icon and can be changed by either of the following:

  • selecting a player, then pressing the star icon in the toolbar;
  • long-pressing a player, then pressing Set as default.

When playing on Lichess, the default player is used to supplement the following Lichess data:

  • your nickname, if it is Anonymous;
  • your chess title, rating, country and FIDE ID, if they are missing.
Note
These replacements are performed locally and are only visible to yourself.

The default player is not used on FICS and ICC because they allocate a random username to guest players and have special meanings for ratings such as ++++, ---- and unreg.

When playing against a chess engine (or multiple engines in the case of a simul), the default player is used as the human side.

You might have a group of friends, colleagues or relatives with whom you are frequently playing OTB games (using a physical board) or OTP games (using OTP mode).

Adding a player entry for each group member allows for neat publication-ready data. You can for instance publish PGN files on your company intranet, or share your saved games using the game sharing feature.

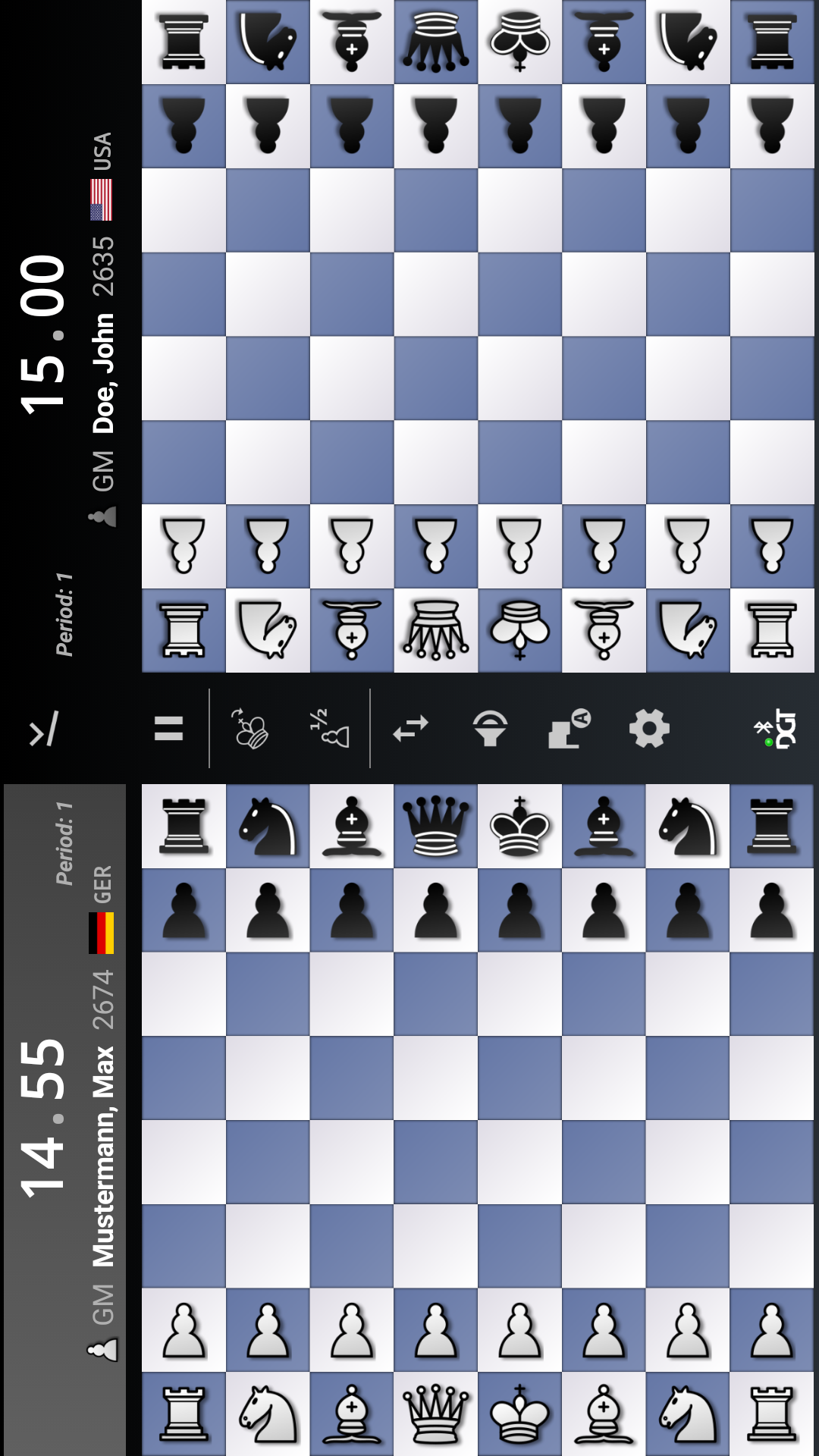

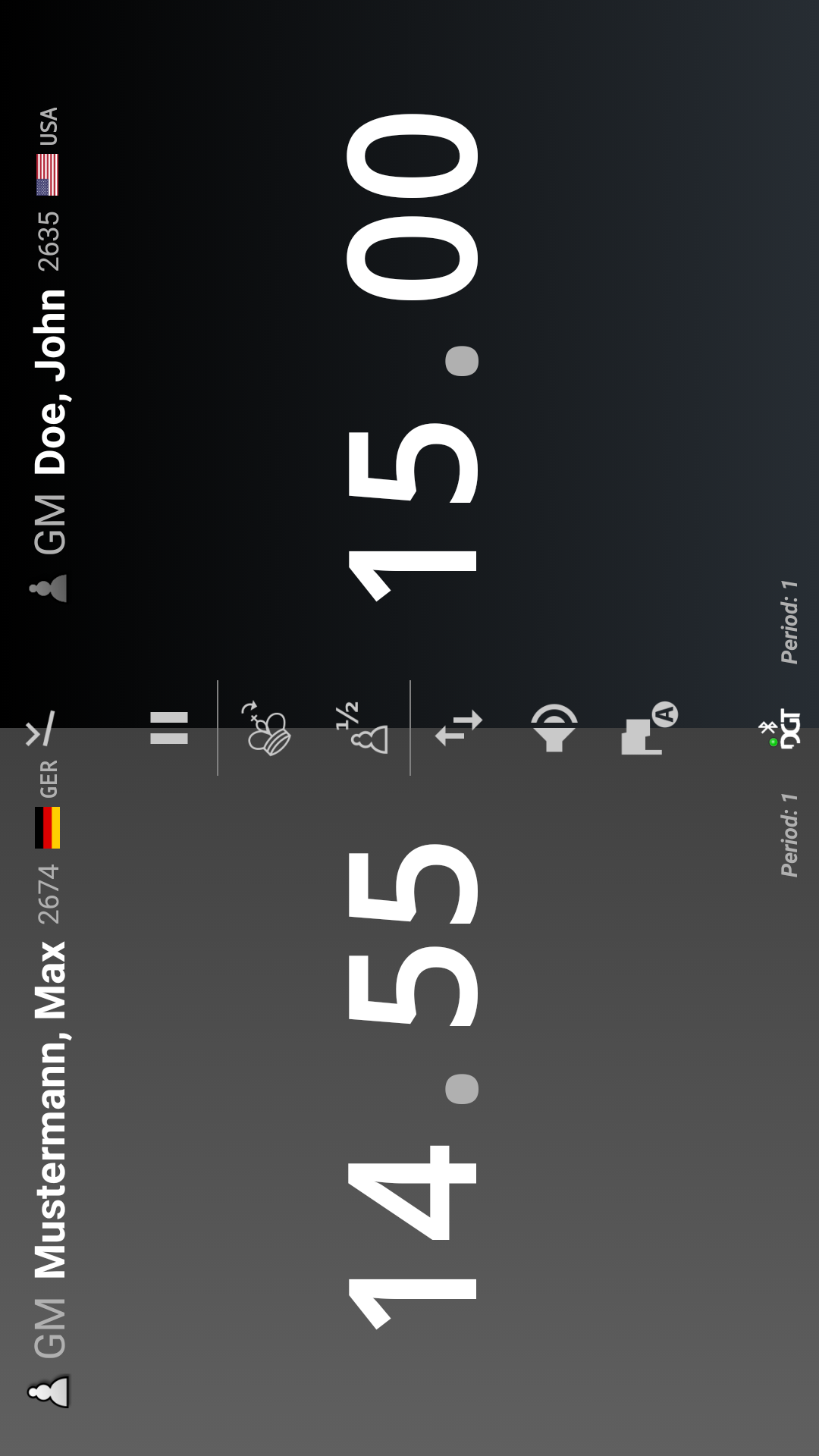

It also makes for a nicer fullscreen clock or OTP display during the game.

The engine manager page

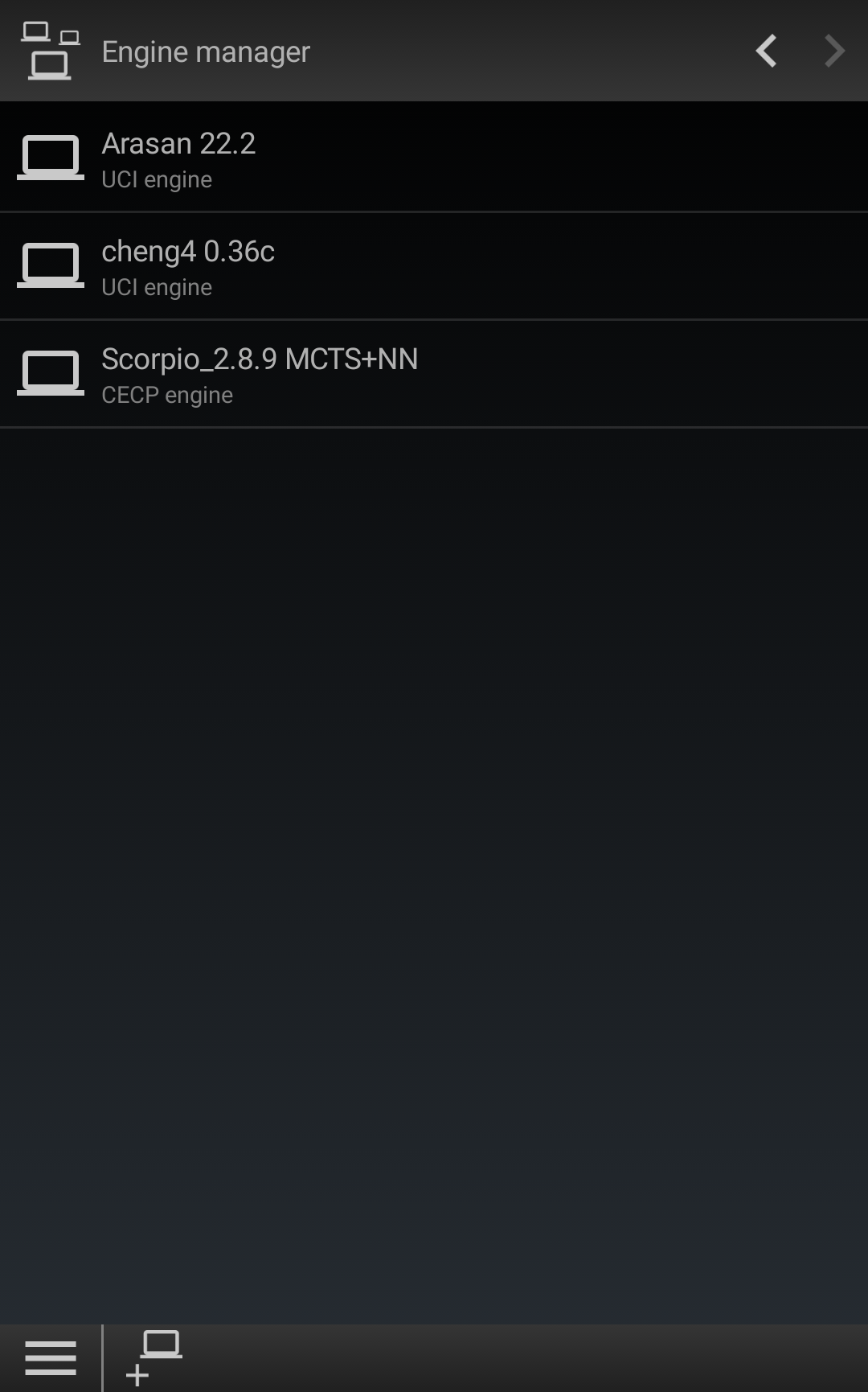

FIGURE 3.37: The engine manager page

The engine manager page allows you to add, remove or configure chess engines.

While similar functionalities are provided by the ENGINE and SIMUL tabs of the New Game page, this page might be more convenient if you have added many engines.

The engine manager page can be accessed by using Settings and help > Engines in the main menu.

The physical board page allows you to connect to a physical board and test it.

From this page, you can also:

The physical board page can be accessed by using Settings and help > e-Board in the main menu.

Note
When the physical board page is opened with no physical board connected, the Bluetooth connectivity of your device is automatically enabled.

In the context of inter page communication, the physical board page is a game data source.

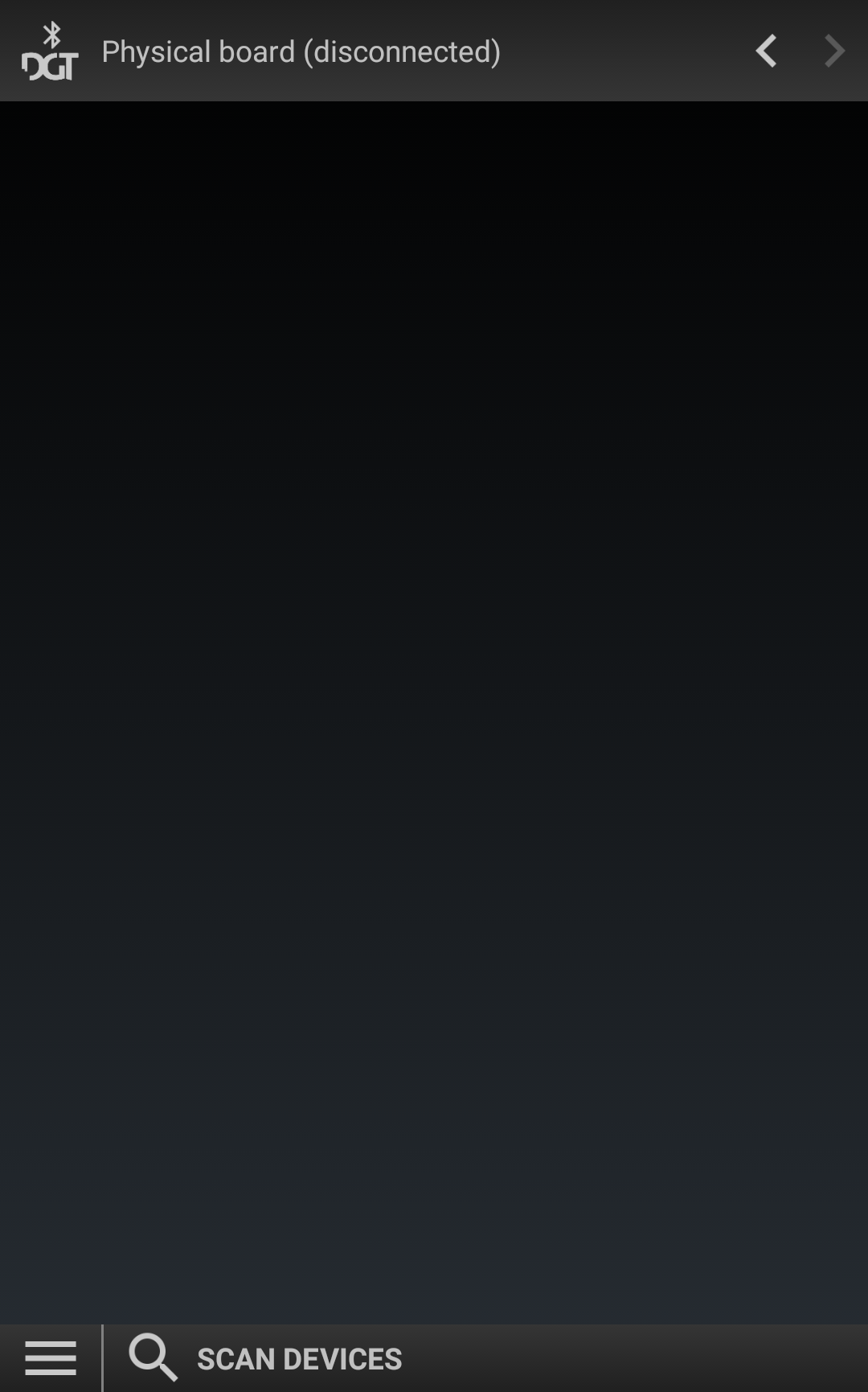

The physical board list
FIGURE 3.38: The physical board list

When no physical board is connected, the page allows you to scan for Bluetooth physical boards and connect to one.

Button Description
The “toggle Bluetooth” toolbar button Toggle your device's Bluetooth connectivity.
The “scan” toolbar button Scan for Bluetooth devices.
TABLE 3.34: Toolbar buttons
The physical board information

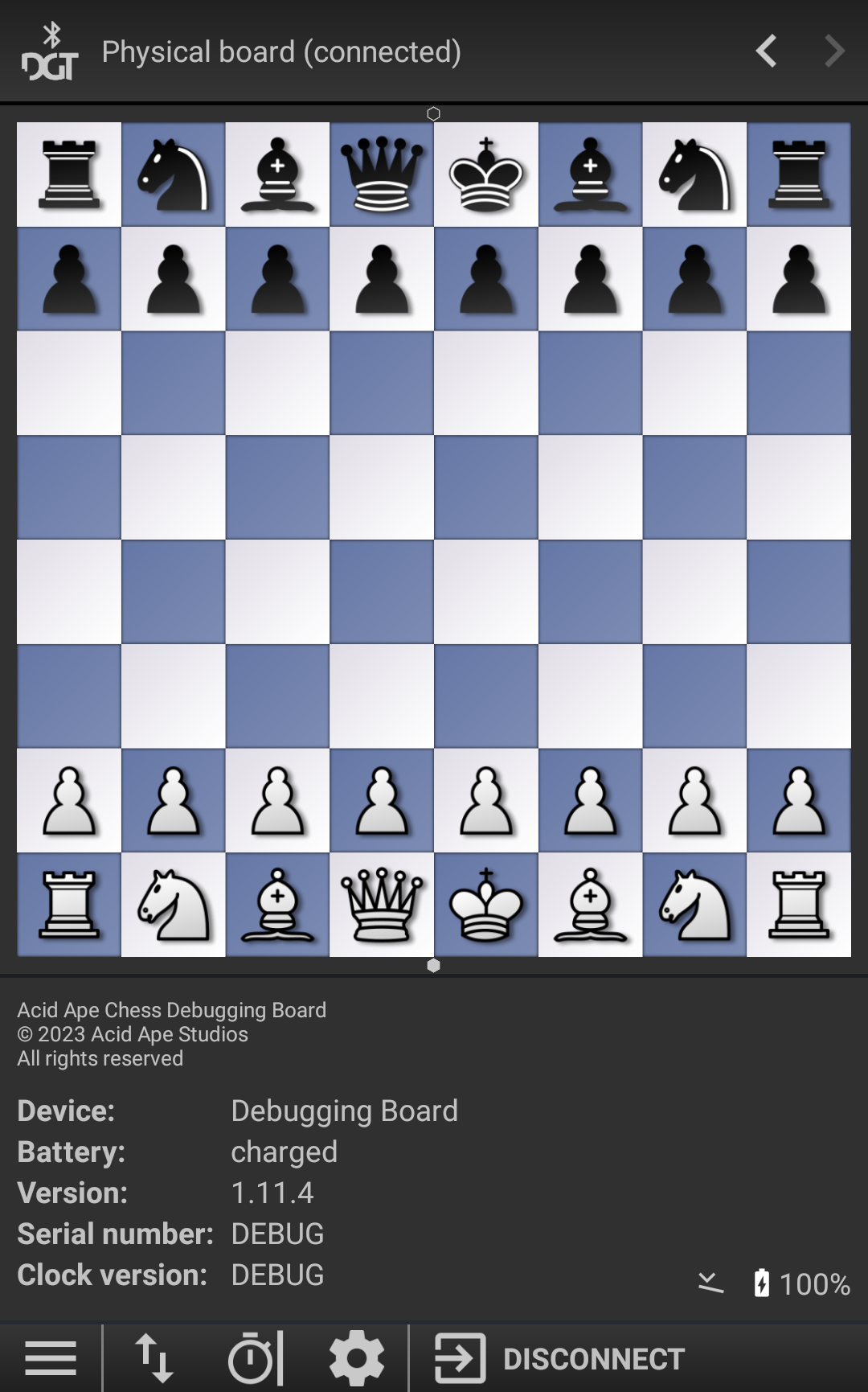

FIGURE 3.39: The physical board information

When a physical board is connected, the page displays:

  • the state of board;
  • the board properties (as obtained from the board);
  • the state and properties of the physical clock, if one is connected.
Button Description
The “flip” toolbar button Flip the page interpretation of the physical board orientation (treat the h8 square as the a1 square).
The “toggle clock at left” toolbar button Toggle the side of the physical clock relative to the board (left/right).

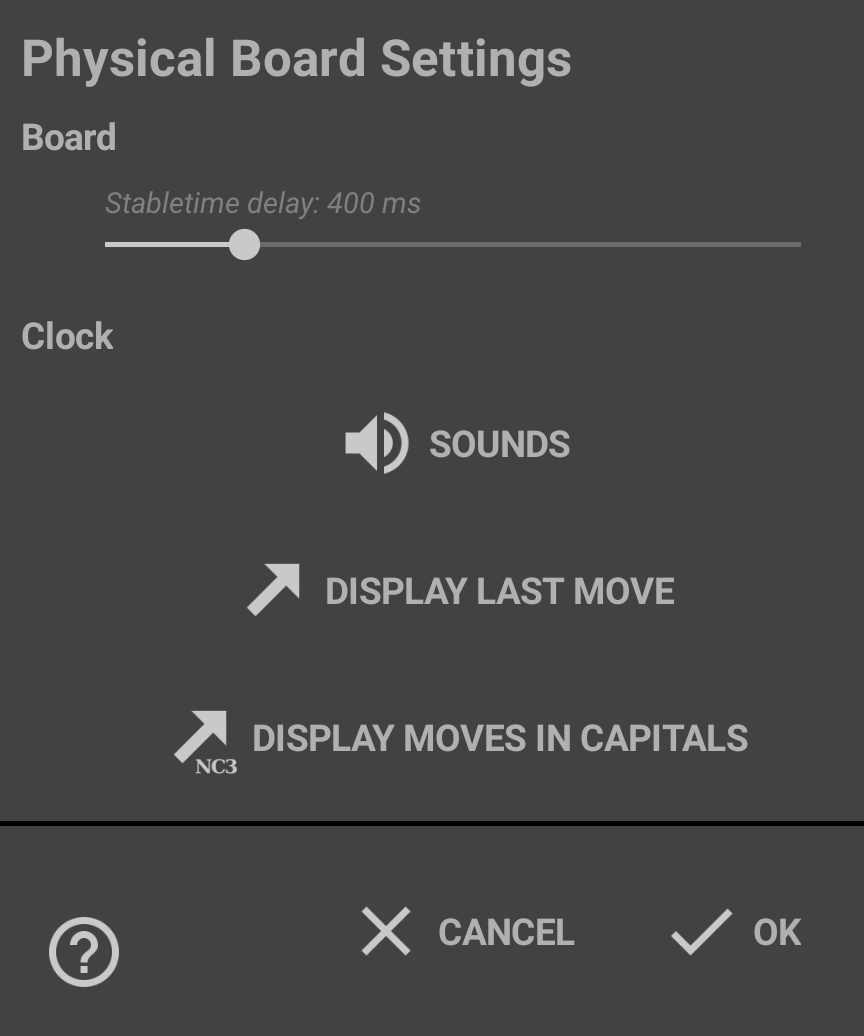

The “settings” toolbar button Configure the physical board.
The “disconnect” toolbar button Disconnect from the physical board.
TABLE 3.35: Toolbar buttons
Note
The disconnect button is only present when connected to a Bluetooth board.
Icon Description
The “clock turn left” status icon A physical clock is connected, and its lever is up on the left side.
The “clock turn right” status icon A physical clock is connected, and its lever is up on the right side.
The “battery” status icon The board battery state.
TABLE 3.36: Status icons
The manual page

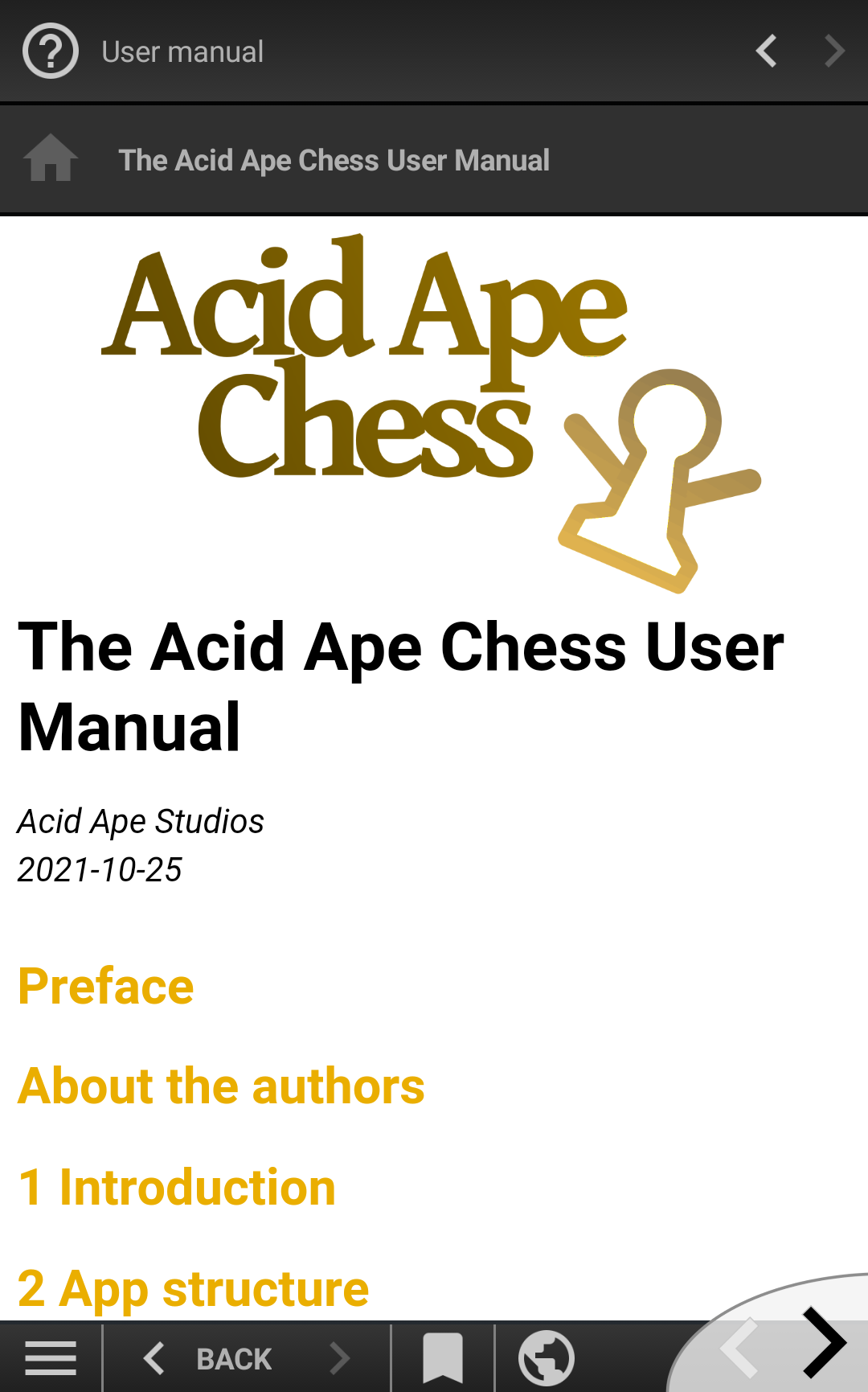

FIGURE 3.40: The manual page

The manual page allows you to browse the Acid Ape Chess User Manual.

The manual page can be accessed by using Settings and help > Help in the main menu.

Scroll the breadcrumb and press one of its components to navigate to the corresponding manual section.

Button Description
The “back” toolbar button Go back in the history list.
The “forward” toolbar button Go forward in the history list.
The “mark” toolbar button (Normal press) Navigate to the saved mark.
The “mark” toolbar button (Long press) Save the mark.
The “online manual” toolbar button View the manual online.
TABLE 3.37: Toolbar buttons

You can navigate through manual sections sequentially by using the navigation buttons in the bottom right corner of the screen. Keep a button pressed for faster navigation.

The game subpage area
FIGURE 4.1: The game subpage area

The game subpage area contains a number of utility subpages (which may or may not be present depending on the game context).

At the top left of the subpage area, subpage management buttons can be used to alter the layout of the area.

Button Description
The subpage “add” button Split the subpage area vertically.
The subpage “close” button Unsplit the subpage area.
The subpage “maximize” button Maximize the subpage.
The subpage “unmaximize” button Unmaximize the subpage.
The subpage “swap” button Swap the top and bottom subpages.
TABLE 4.1: Subpage management buttons

You can move between subpages by swiping a subpage left or right, or by pressing a subpage icon at the right of the subpage title.

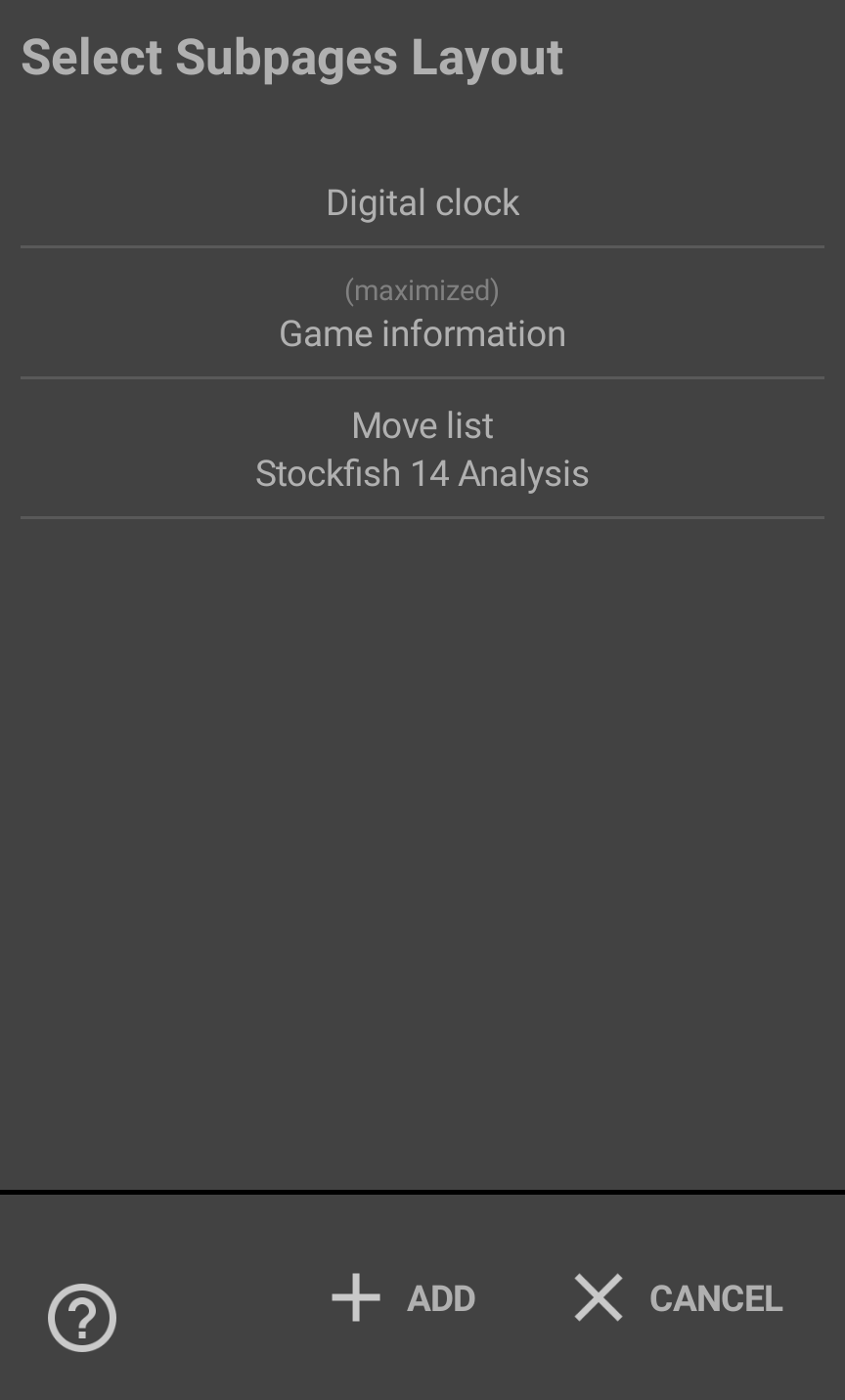

Pressing the subpage title toggles the subpage selector. Long-pressing the subpage title displays the subpages layout selection dialog.

Some subpages cannot be closed, while some others can usually be closed by pressing the toggle button that opened them. Consult the relevant subpage section for details.

Notable game subpages include:

The game information subpage

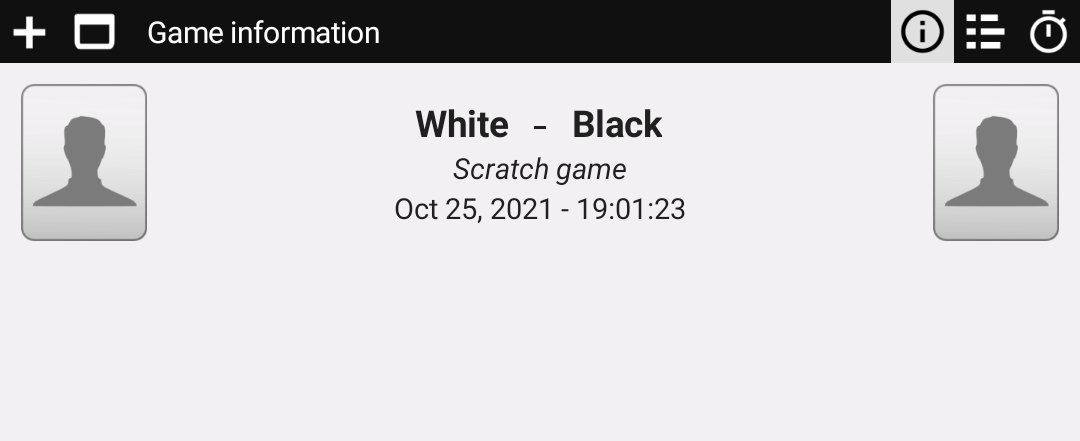

FIGURE 4.2: The game information subpage

This subpage provides information about the current game.

This subpage appears automatically when relevant and cannot be closed.

The game information subpage displays information and statistics about the current game.

If a player name is underlined, pressing it opens the OTB player information page or the user information page (depending on the player type).

The game information subpage is also the subpage from where you can enable the fullscreen clock and OTP mode. When relevant, FULLSCREEN CLOCK and OTP MODE buttons are present at the bottom of the subpage (on smaller screens, you might have to scroll the subpage down a bit to reach these buttons).

The move list
FIGURE 4.3: The move list

This subpage allows you to view or edit the move list.

This subpage appears automatically when relevant and cannot be closed.

  • Variations;
  • ECO display;
  • Move annotations;
  • Comments.

Action buttons are present at the right of the move list.

Button Description
The “enable edition” button Enable edition mode.
The “disable edition” button Disable edition mode.
The “recognize move” button Enter a move via speech recognition.
TABLE 4.2: Action buttons

When edition mode is enabled, the move list can be edited by navigating to the appropriate node, then pressing a button in the edition toolbar.

Note
Changes are applied to the backing file when the game is saved.
Button Description
The “truncate line” button Truncate the current line.
The “move variation up” button Move the current variation up.
The “move variation down” button Move the current variation down.
The “edit annotation” button Edit the annotation of the current move.
The “add comment before” button Add a comment before the current node.
The “add comment after” button Add a comment after the current node.
The “edit comment” button Edit the current comment.
The “delete comment” button Delete the current comment.
TABLE 4.3: Edition toolbar buttons

When a draw offer is made, it is recorded in the move list as (=), in accordance with the FIDE Laws of Chess rule C.12: The offer of a draw shall be marked as (=).

Note
A draw offer is only recorded when the player proposing the draw is the side to move.
The digital clock with all segments on

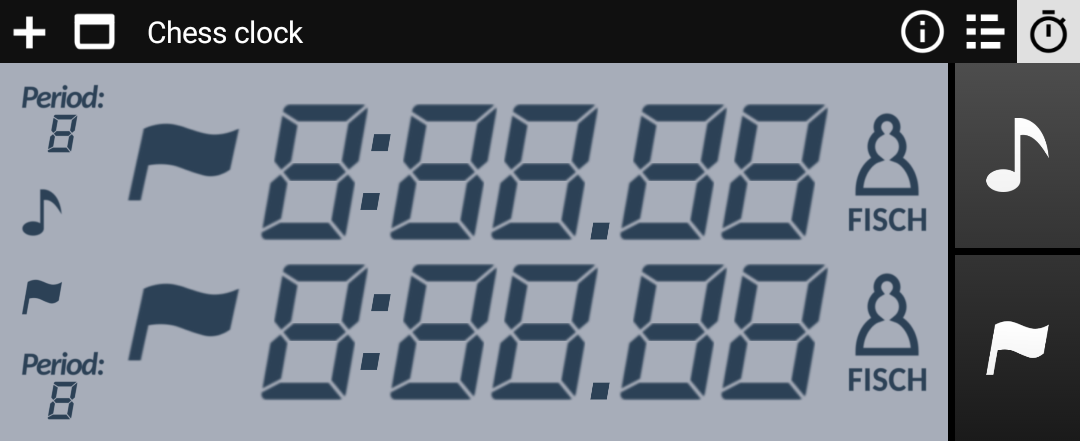

FIGURE 4.4: The digital clock with all segments on

This subpage provides a visually appealing digital clock, loosely modeled after the well-known DGT3000.

This subpage appears automatically when relevant and cannot be closed.

The clock buttons can be used to toggle the clock beeper and autoflagging. The state of these options is app-global, persisted, and displayed at the left of the clock LCD.

Button Description
The “sound” button Toggle the clock beeper.
The “flag” button Toggle autoflagging.
TABLE 4.4: Clock buttons

When the clock beeper is enabled, a player is alerted that he is running out of time with:

  • short beeps when 10, 5, 4, 3 and 2 seconds remain;
  • a continuous beep during the last second.
Note
The sound button only toggles the clock beeper, not other app sounds such as clock taps. The master app sound toggle is in the settings page. For the clock beeper to emit sounds, both toggles must be on.

If autoflagging is enabled, the opponent is automatically flagged when he runs out of time. If a player is already out of time when autoflagging is enabled, that player is flagged immediately.

Symbol Description
The “period” LCD symbol This side's time control has multiple periods. The current period number is indicated.
The “sound” LCD symbol The clock beeper is enabled.
The “flag” LCD symbol Autoflagging is enabled.
The large “flag” LCD symbol This side has run out of time (blinking).
The “pawn” LCD symbol This side is to move.
The “Fisch” LCD symbol This side uses an increment.
TABLE 4.5: LCD symbols

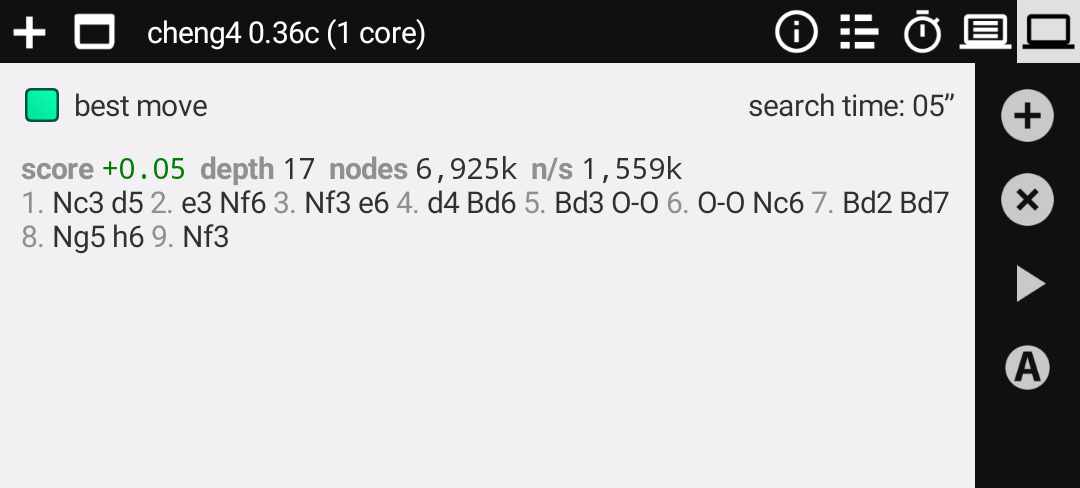

The engine information subpage
FIGURE 4.5: The engine information subpage

This subpage displays the output of a chess engine.

One instance of this subpage is automatically added for each engine running in the parent game page, and is automatically removed when the engine is terminated.

This subpage includes the following items:

  • one or more colored squares displaying the colors of the engine computations arrows;
  • if an endgame tablebases match is found, a colored square displaying the color of the EGTB arrow;
  • the time spent searching the current position;
  • a statistics header;
  • the principal variations (multiple principal variations can be displayed by increasing the Principal variations setting); during analysis, pressing a variation plays its first move.
Note
Multiple principal variations are only supported by some UCI chess engines.

The statistics header may contain the following fields:

Field Description
score The engine evaluation score in pawns.
mate If a forced mate is found, the number of moves leading to it.
depth The search tree depth.
nodes The number of nodes evaluated.
n/s The engine throughput in nodes per second.
TABLE 4.6: Statistics fields
Note
By default, the engine evaluation score and mate move count are absolute (positive when white is winning, zero when equal, negative when black is winning). Relative score and mate move count display (positive when the side to move is winning, zero when equal, negative when the side to move is losing) can be selected by enabling the Display relative eval option in the settings page.

Analysis buttons are displayed at the right of the subpage when the engine is participating in analysis (not when the engine is playing a game).

Global analysis buttons operate the global analysis controller associated with the containing game page.

Button Description
The “add analyzer” button Add an analyzer.
The “remove analyzer” button Remove an analyzer.
TABLE 4.7: Global analysis buttons

Engine analysis buttons operate the analysis controller associated with the current engine.

Button Description
The “play move” button Play the engine best move.
The “start auto analysis” button Start auto analysis.
The “stop auto analysis” button Stop auto analysis.
TABLE 4.8: Engine analysis buttons

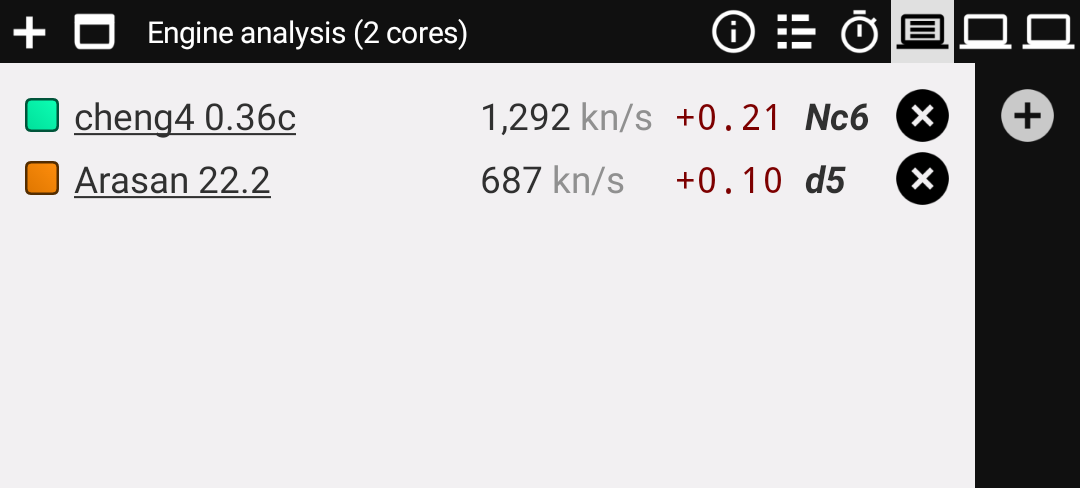

The analysis information subpage
FIGURE 4.6: The analysis information subpage

This subpage displays a summary of each analyzer (a chess engine or the endgame tablebases).

To toggle analysis, use the analysis toolbar button of the game page.

This subpage is present if you have enabled it.

Each engine analyzer entry includes the following items:

  • the engine name;
  • the engine throughput in kilonodes per seconds;
  • the engine evaluation score in pawns, or if a forced mate is found, the number of moves leading to it;
  • the engine best move;
  • a close button for removing the analyzer.

Pressing an engine name splits the subpage area vertically and displays the engine information subpage in the other pane.

Note
By default, the engine evaluation score and mate move count are absolute (positive when white is winning, zero when equal, negative when black is winning). Relative score and mate move count display (positive when the side to move is winning, zero when equal, negative when the side to move is losing) can be selected by enabling the Display relative eval option in the settings page.

The EGTB entry only appears if an EGTB match is found, and includes the following items:

  • the game result (win, cursed win, draw, blessed loss or loss);
  • the best move;
  • the distance to zero ply (the next pawn move or capture).

Cursed wins and blessed losses are mates that can be forced, but not under the fifty-move rule.

Action buttons are present at the right of the subpage.

Button Description
The “add analyzer” button Add an analyzer.
TABLE 4.9: Action buttons
Note
The endgame tablebases analyzer is always enabled and cannot be added with the add button.
The evaluation graph
FIGURE 4.7: The evaluation graph

This subpage displays chess engine evaluations for every position in the game.

To toggle this subpage, use the evaluation graph toolbar button of the game page.

This subpage is present if you have enabled it.

  • Above the graph is the plot selector: press a plot to toggle it; press the close button of a plot to remove it.
  • The x-axis represents the position index (0 is the initial position).
  • The y-axis represents the engine evaluation of a position, in pawn units (positive when white is winning, zero when equal, negative when black is winning).
  • A red background indicates that a mate is possible in that segment of the game (if the red background is above the 0.0 line, white is mating; otherwise, black is mating).
  • Red circles indicate key moves.

When an engine game is played, Acid Ape Chess records engine evaluations during the game. These plots are labeled White (engine name) or Black (engine name).

This data is saved to PGN, so it is also available when you open a previously played engine game from the PGN explorer page.

To remove a recorded plot, press the close button of that plot in the plot selector (this also removes the data from the PGN file when the game is saved).

When the game contains annotations, an Annotations plot is present.

Pressing the close button of that plot in the plot selector removes the annotations from the game. This is equivalent to selecting Game > Remove annotations in the main menu.

When you enable the subpage, Acid Ape Chess analyzes the game with the currently enabled engine analyzers. This data is cached to memory and to persistent storage; to recompute it, press the refresh button at the right of the subpage.

To add a live plot, press the add button at the right of the subpage.

To remove a live plot, press the close button of that plot in the plot selector.

The list of enabled engine analyzers is shared with analysis mode.

Note
When an engine game is being played, live analysis only starts when the game finishes. This is to avoid depriving the game engine(s) of CPU power and to avoid overloading your device.

Red circles are placed before key moves (moves that change the engine evaluation significantly):

  • small red circles indicate minor key moves, corresponding to ! or ? auto annotations;
  • larger, brighter red circles indicates major key moves, corresponding to !! or ?? auto annotations.
The score indicator
FIGURE 4.8: The score indicator

The score indicator is displayed in the bottom left corner of the graph. It displays evaluation data for the current position, this data being collected from the visible plots. The data is in the form depth/score, depth/#mate or result, where:

  • depth is the maximum search depth;
  • score is the average evaluation score, in pawns (positive when white is winning, zero when equal, negative when black is winning);
  • mate is the minimum number of moves to reach a mate (positive when white is winning, negative when black is winning);
  • result is the automatic result (1-0 if black is checkmated; 0-1 if white is checkmated; ½-½ for a stalemate, draw by insufficient mating material, draw by fivefold repetition or draw by seventy-five-move rule).

Moreover, the score indicator displays whether the current position is a claimable draw (threefold repetition or fifty-move rule).

Action buttons are present at the right of the subpage.

Button Description
The “add live plot” button Add a live plot.
The “go to previous key move” button Navigate to the previous key move.
The “go to next key move” button Navigate to the next key move.
The “no key moves displayed” button Key moves are disabled, press to display major key moves.
The “major key moves displayed” button Major key moves are displayed, press to display all key moves.
The “all key moves displayed” button All key moves are displayed, press to disable key moves.
The “refresh” button Recompute the graph (tries to increase the evaluation depth).
The “settings” button Open the settings dialog.
TABLE 4.10: Action buttons
Note
Recomputing the graph may be useful if it was first computed when CPU power was limited. For instance, devices usually throttle their CPU speed when battery is low: recomputing the graph when battery is full may increase the precision of the graph.
The opening explorer

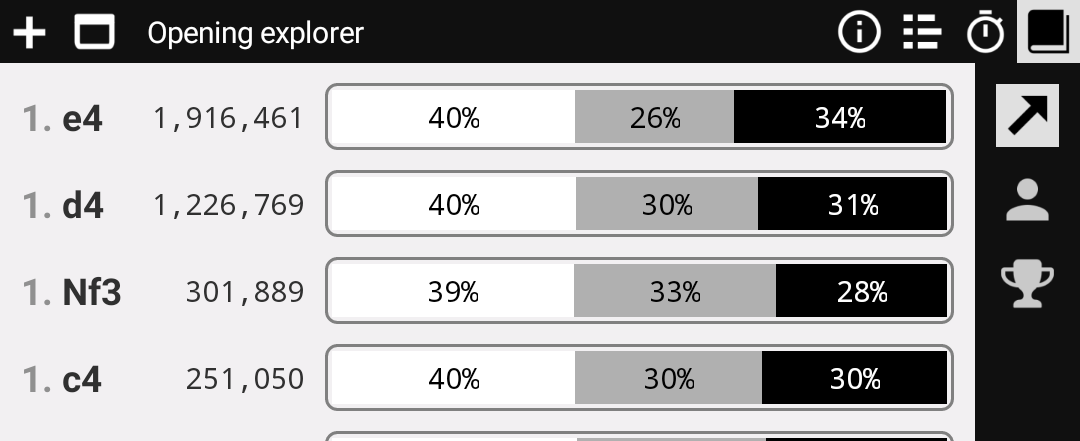

FIGURE 4.9: The opening explorer

This subpage displays the opening moves, players and games related to the current position.

To toggle this subpage, use the opening explorer toolbar button of the game page.

This subpage is present if you have enabled it.

The opening explorer retrieves its data online from the large Acid Ape Chess game database.

Tabs can be switched using the buttons at the right of the subpage.

The moves tab
FIGURE 4.10: The moves tab

The moves tab lists the 20 most played moves at the current position.

For each move, the following information is provided:

  • the move;
  • the number of games in which it was played;
  • a bar chart displaying the percentage of these games that ended in a white win (white background), draw (gray background) and black win (black background).

Moves are sorted by game count in descending order.

Pressing a move plays that move.

Keeping the move entry pressed highlights the move with an arrow.

The players tab

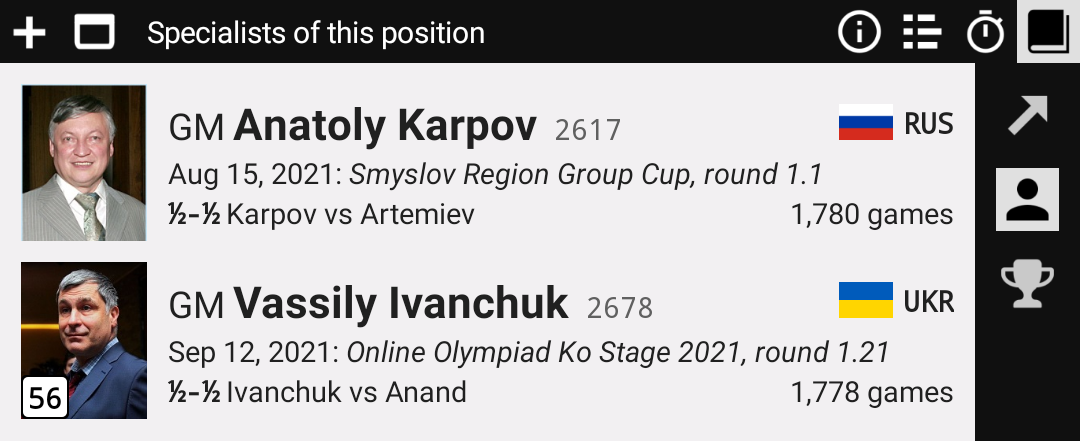

FIGURE 4.11: The players tab

The players tab lists the 20 players that encountered the current position the most (as the side that just moved, or as white if the current position is the initial position).

For each player, the following information is provided:

  • his picture, if available;
  • his chess title;
  • his name;
  • his most recent ELO rating in the database;
  • his chess federation;
  • a summary of the most recent game in which he encountered the current position;
  • the number of games in which he encountered the current position.

Pressing a player opens the player information page for that player.

The games tab

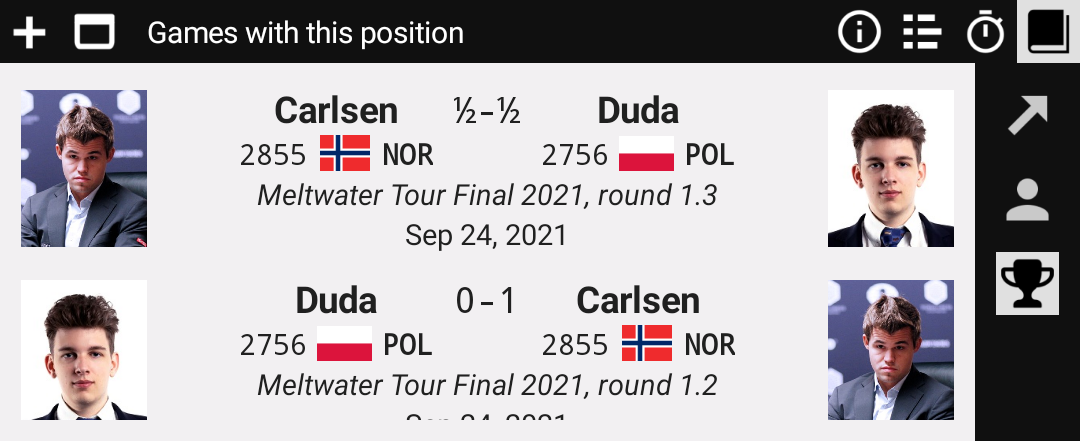

FIGURE 4.12: The games tab

The games tab lists the 20 most recent games in which the current position was encountered.

Pressing a game opens the game in a new game page and navigates to the current position.

The chat subpage

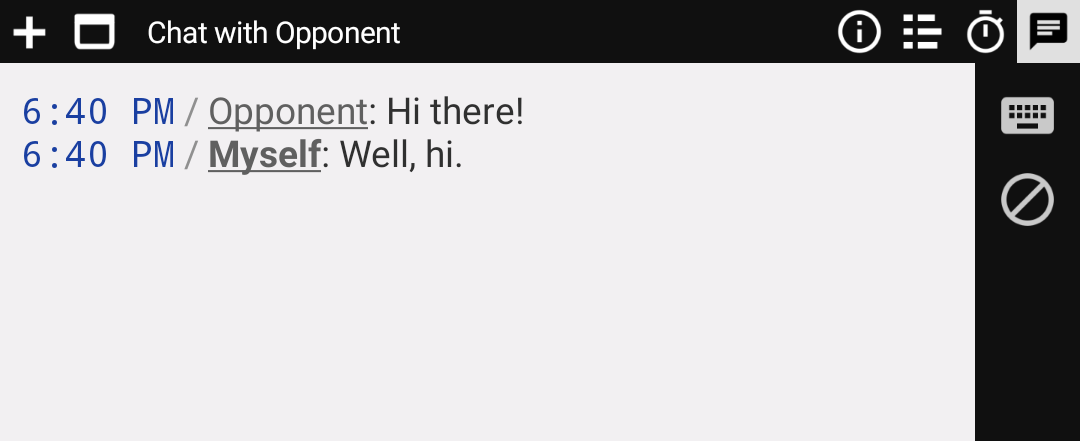

FIGURE 4.13: The chat subpage

This subpage allows you to chat with your opponent (using the chat facilities of the chess server the game is played on).

This subpage appears automatically when relevant and cannot be closed.

Action buttons are present at the right of the subpage.

Button Description
The keyboard button Send a message.
The block button Block your opponent.
TABLE 4.11: Action buttons
  1. Switch to the chat subpage.
  2. Press the keyboard button.
  3. Type your message and confirm.

Notable Acid Ape Chess dialogs include:

The time control selection dialog
FIGURE 5.1: The time control selection dialog

The time control selection dialog allows you to select from predefined and custom time controls.

The time control selection dialog can be accessed by pressing the settings button in the time selectors of the New Game page and of the play dialog.

  • To select a time control, press it.
  • To restore the associated time selector to the custom time/increment mode, select the Custom entry at the top of the list.
  • To restore the associated time selector to the default value (usually 05.00), use the RESTORE DEFAULT button.
  • To add a custom time control to the list, use the ADD button.
  • To edit or remove a custom time control, access its context menu by long-pressing the entry.
Note
Predefined time controls cannot be removed.
The time control properties dialog
FIGURE 5.2: The time control properties dialog

The time control properties dialog allows you to add a custom time control to the list of the time control selection dialog, or to edit such a custom time control.

Item Description
Name Provide a friendly name for the time control.
Spec Set the time control specification.
TABLE 5.1: Dialog fields
The play dialog

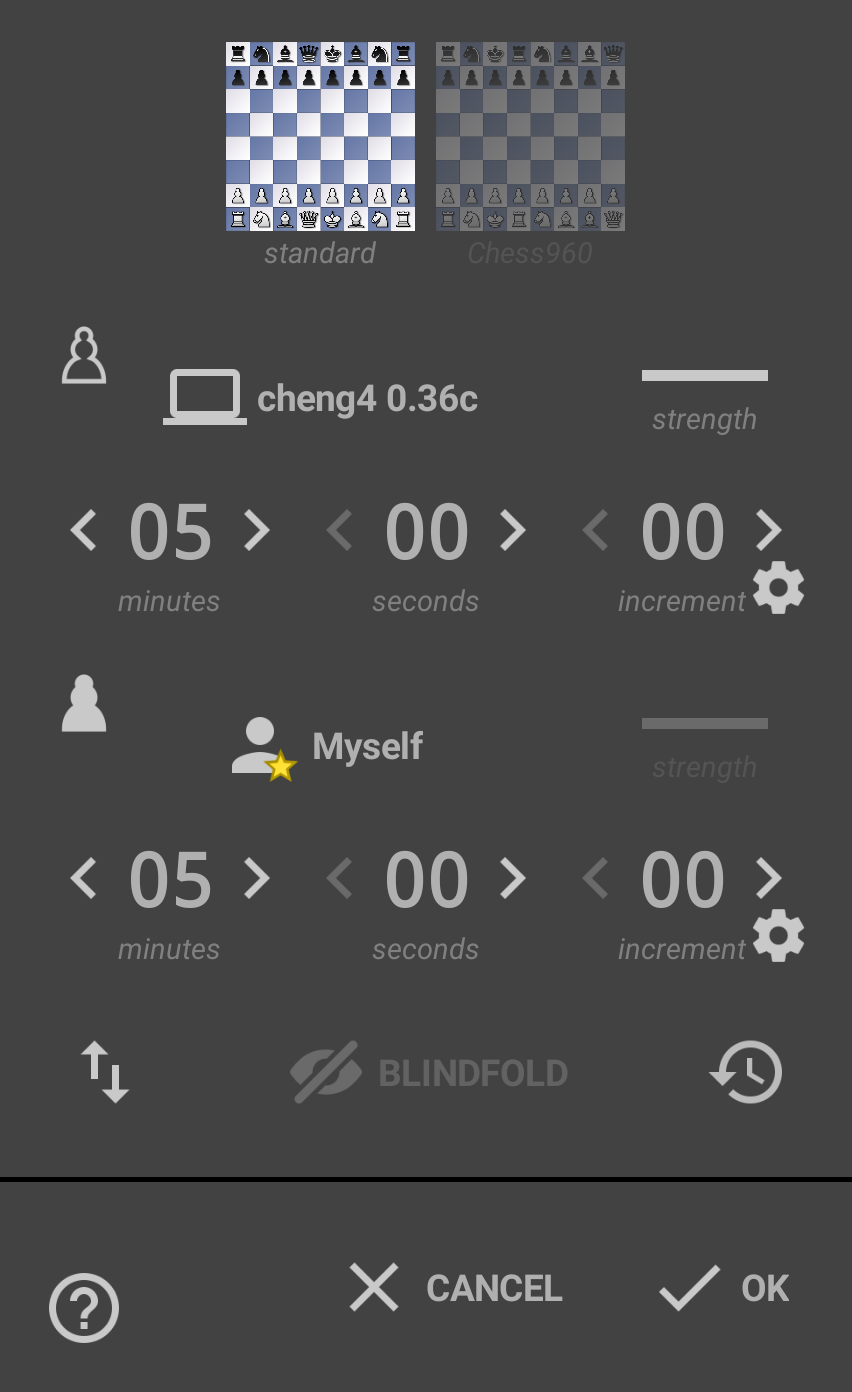

FIGURE 5.3: The play dialog

The play dialog allows you to create advanced chess engine games, engine duels and human duels.

While the New Game page allows you to create simple online games, engine games and simuls, the play dialog allows you to configure asymmetric clocks and use a custom initial position.

The play dialog can be accessed by using Position > Play in the main menu.

The position selector allows you to select the starting position.

Position Description
standard The standard initial position.
Chess960 A randomly generated Chess960 position.
current (if applicable) The current position of the active game data source.
custom (if applicable) A non-standard initial position from a previously created game.
TABLE 5.2: Position selector items

Each side configurator includes:

  • a player selector, for selecting a human or engine player;
  • if an engine which supports variable strength is selected, an engine strength selector;
  • if an engine which supports personalities is selected, an engine personality selector;
  • a time selector supporting simple and advanced time controls.

If the play dialog is opened when the active page is a game data source, the default values of the side configurators are taken from that game data source.

When a physical clock is connected and two human players are selected, select an option on the physical clock to choose the time source of the game (Acid Ape Chess in option 25, the physical clock in other options).

Buttons are present below the black and white configurators.

Button Description
The “flip” button Swap the black and white configurations.
The “blindfold” button Toggle blindfold mode (this button is disabled when the two sides are engines).
The “recent” button Display the recent games dialog.
TABLE 5.3: Play dialog buttons

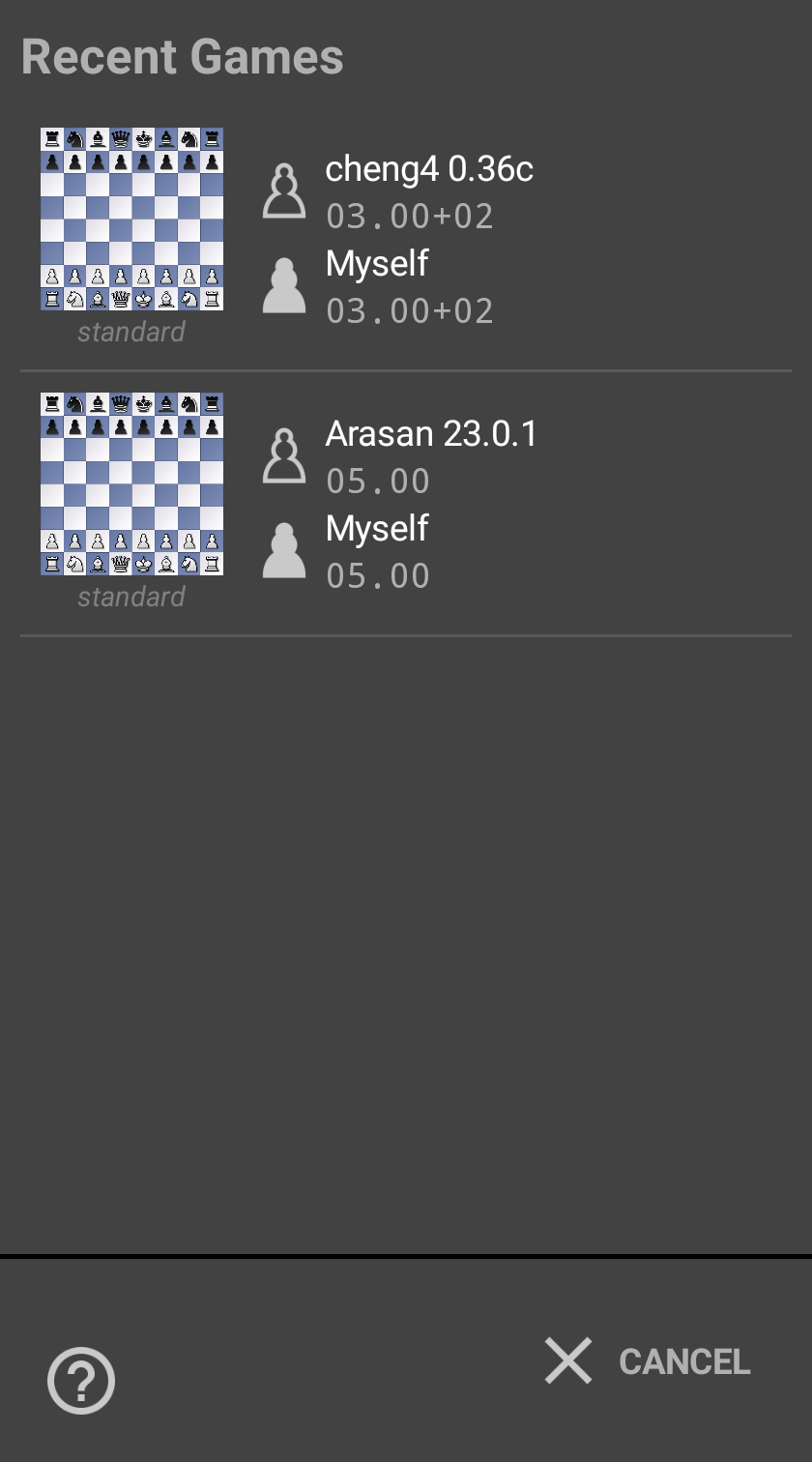

The recent games dialog
FIGURE 5.4: The recent games dialog

The recent games dialog lists recent settings of games created with the play dialog (from most recent to least recent). Pressing a list entry configures the play dialog with the corresponding settings.

The recent games dialog can be accessed by pressing the recent button at the bottom right of the play dialog.

The new position dialog

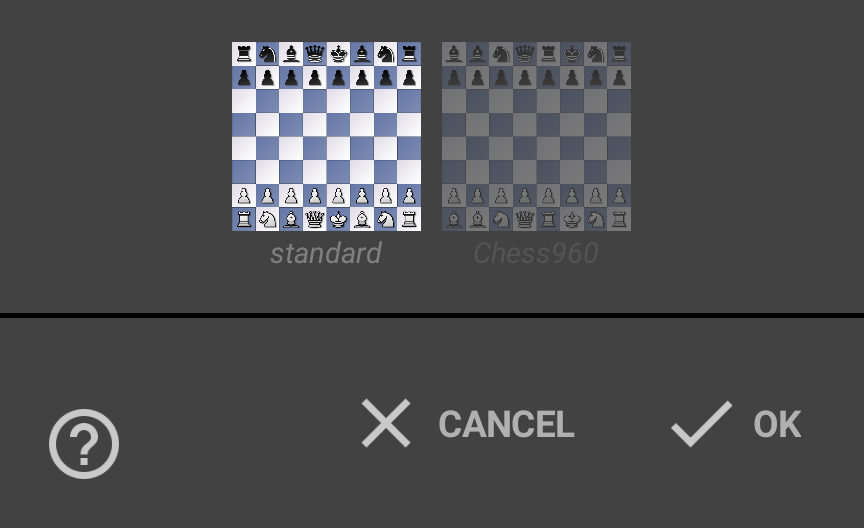

FIGURE 5.5: The new position dialog

The new position dialog allows you to create a scratch game page.

The new position dialog can be accessed by using Position > New in the main menu.

The position selector allows you to select the starting position.

Position Description
standard The standard initial position.
Chess960 A randomly generated Chess960 position.
current (if applicable) The current position of the active game data source.
TABLE 5.4: Position selector items
The subpages layout selection dialog
FIGURE 5.6: The subpages layout selection dialog

The subpages layout selection dialog allows you to save and restore multiple game subpages layouts.

The subpages layout selection dialog can be accessed by long-pressing a game subpage title.

  • To add the current subpages layout to the list and close the dialog, use the ADD button.
  • To apply a subpages layout to the current game page, press it.
  • To remove a subpages layout, access its context menu by long-pressing the entry.
The evaluation graph settings dialog

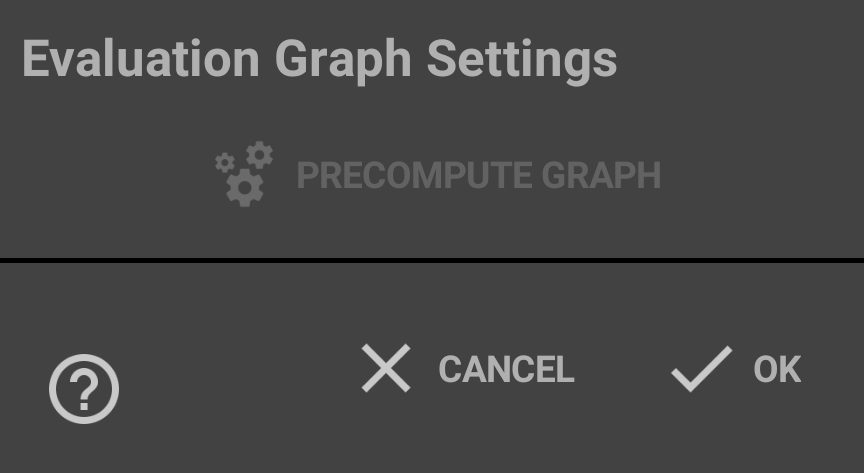

FIGURE 5.7: The evaluation graph settings dialog

The evaluation graph settings dialog allows you to configure the evaluation graph.

The evaluation graph settings dialog can be accessed by pressing the settings button at the right of the evaluation graph.

Item Description
Precompute graph If enabled, the evaluation graph is precomputed in the background while playing or viewing a game. This allows the graph plots to be available shortly after a game ends.
TABLE 5.5: Evaluation graph settings
Warning
Enabling Precompute graph increases CPU usage and reduces battery life. It also decreases the number of CPU cores made available to engines during engine games. However, precomputation is inhibited when maximum engine power is required: during analysis and during auto annotation.
The auto annotate dialog
FIGURE 5.8: The auto annotate dialog

The auto annotate dialog allows you to launch automatic annotation of the current game using a chess engine, endgame tablebases and some heuristics.

The auto annotate dialog can be accessed by using Game > Auto annotate in the main menu or the auto annotate toolbar button of the game page.

Item Description
Engine Select the engine used for annotation.
Instances Set the number of engine instances that should be used concurrently.
Time per move Set the search time allocated to each move.
Total time Displays the estimated total computation time, computed from Instances, Time per move and the number of moves to annotate.
Follow progress Navigate to moves as they are annotated.
TABLE 5.6: General settings

These toggle buttons allow you to enable or disable individual output items.

Item Description
Introduction Insert a PGN introduction comment before the first move.
Move annotation Add move quality annotations (!, !!, ? or ??) for moves that change the engine evaluation significantly or change the EGTB outcome.
Depth Add the engine search depth.
Score or mate Add the engine score (in pawns), or if a mate is found, the number of moves to reach it.
Engine best move Add the engine best move (if it differs from the move actually played).
EGTB result Add the EGTB result (white win, black win or draw) and best move.
Move comment Add a comment describing the quality of the move, for instance good move for the ! annotation.
TABLE 5.7: Output settings

78... Qc4?? 34/+1.03 [Qc3] [Qc3 -> EGTB black win] bad move

Part Description
?? This black move caused a significant change in the engine evaluation. This change was profitable to white.
34 The engine could search up to depth 34.
+1.03 According to the engine, white is now up by 103 centipawns.
[Qc3] The engine best move was Qc3.
[Qc3 -> EGTB black win] The EGTB best move was Qc3 and would have led to a win for black.
bad move A textual representation for ??.
TABLE 5.8: Annotation parts

23. Rg3 128/12#

Part Description
128 The engine could search up to depth 128.
12# The engine has determined that white has a forced mate: black can be checkmated in 12 moves.
TABLE 5.9: Annotation parts

29. g7 50/-3#

Part Description
50 The engine could search up to depth 50.
-3# The engine has determined that black has a forced mate: white can be checkmated in 3 moves.
TABLE 5.10: Annotation parts

Only the main line is annotated. Variations are currently ignored.

The engine settings dialog
FIGURE 5.9: The engine settings dialog

The engine settings dialog allows you to configure chess engine settings.

The engine settings dialog can be accessed from:

Note that some of these settings may be absent if the engine does not support them.

Item Description
Name Modify the name provided by the engine.
Cores Use a specific number of CPU cores.
Think on opponent's time Use pondering.
Opening book Select an opening book.
Principal variations The number of best moves to display.
Node limit If enabled, each game search is limited to the specified number of nodes (using the UCI go nodes command). This setting is ignored during analysis.
TABLE 5.11: General settings
Note
The Opening book setting overrides the global setting.

The options advertised by the engine are listed in this section.

If a text option is meant to accept a file, you can use the open button at the right of the text entry to select a file with the Android file selector. This is useful for using a custom neural network with engines such as Arasan, Stockfish or Lc0.

The opening book selection dialog
FIGURE 5.10: The opening book selection dialog

The opening book selection dialog allows you:

The opening book selection dialog can be accessed from:

When a chess engine is configured to use an opening book:

  • the engine is only queried if the opening book has no move for the searched position;
  • during a game, the name of the opening book is appended to the engine name (for example Stockfish 12 + MyBook.bin).

Acid Ape Chess supports the following opening book formats:

Format File extension
PolyGlot .bin
Arena .abk
TABLE 5.12

Moreover, Acid Ape Chess can query the Acid Ape Chess online opening book. This book uses the online game database.

The physical board settings dialog
FIGURE 5.11: The physical board settings dialog

The physical board settings dialog allows you to configure physical board and physical clock handling.

The physical board settings dialog can be accessed by pressing the settings button in the physical board page.

Item Description
Stabletime delay Modify the stabletime delay.
TABLE 5.13: Physical board settings
Item Description
Sounds Toggle physical clock sounds.
Display last move Display the opponent move on the physical clock.
Display moves in capitals Display moves in capital letters. On a DGT3000, this is usually more readable than the standard notation.
TABLE 5.14: Physical clock settings
Note
These options are only used if the physical clock option is set to 25.
The OTP settings dialog
FIGURE 5.12: The OTP settings dialog

The OTP settings dialog allows you to configure OTP mode.

The OTP settings dialog can be accessed by pressing the settings button in the OTP mode screen.

Item Description
Display player info Display player information in each clock. Disabling this option might make more space available for the chessboards, which might be useful on a small screen.
Require clock taps Require players to tap their clock after each move. Enabling this option enables external clock mode.
TABLE 5.15: OTP settings

Notable Acid Ape Chess features are detailed in this chapter.

Game data is implicitly shared between certain pages and dialogs.

The following sections describe the mechanisms involved in this process.

A game data source is a page which exports one or more game data items for use by a game data sink.

A game data sink is a page or dialog which imports one or more game data items from the active game data source (i.e. from the currently displayed page).

Game data items are:

  • the displayed position;
  • the game tree and properties;
  • the state of the board flipped toggle.

The following pages are game data sources:

The following pages or dialogs are game data sinks:

To open the currently displayed position of a game page in a new position editor page, simply use Position > Edit in the main menu.

This uses the currently displayed game page (the active game data source) to initialize a newly created position editor page (the game data sink) with the currently displayed position and the board flipped state.

To analyze the currently edited position of a position editor page in a new game page, simply use Position > Analyze in the main menu.

This uses the currently displayed position editor page (the game data source) to initialize a newly created scratch game page (the game data sink) with the currently edited position and the board flipped state, then start analysis in that game page.

To analyze the current position of a physical board page in a new game page, simply use Position > Analyze in the main menu.

This uses the currently displayed physical board page (the game data source) to initialize a newly created scratch game page (the game data sink) with the current physical board position, then start analysis in that game page.

Acid Ape Chess provides a wide range of predefined time controls. You can also add custom time controls supporting multiple periods, move limits and Fischer increments.

Acid Ape Chess supports a commonly used, de facto standard for expressing time controls.

A time control specification consists of one or more period specifications separated by space characters.

A period specification can have multiple formats.

Format Description
n Unlimited moves in n minutes.
n+i Unlimited moves in n minutes, with i seconds added after each move (Fischer increment).
m/n m moves in n minutes.
m/n+i m moves in n minutes, with i seconds added after each move (Fischer increment).
TABLE 6.1: Period specification formats
Note
If m is G or SD, sudden death is used. Such a period can only be the last period.
  • there must be at least one period;
  • there must be at most one sudden death period;
  • a sudden death period must follow the last limited move period (if any).
Specification Description
1 1 minute for the entire game, with no increment.
3+2 3 minutes for the entire game, with 2 seconds added after each move (Fischer increment).
5+0 5 minutes for the entire game, with no increment.
40/90+30 G/30+30 90 minutes for the first 40 moves (with 30 seconds added after each move), then 30 extra minutes for the rest of the game (with 30 seconds added after each move).
TABLE 6.2: Time control specification examples
Name Spec Description
Custom N/A Use a custom time and Fischer increment selector.
Blitz 3+2 Often used in FIDE-sanctioned blitz tournaments.
Rapid 15+10 Often used in FIDE-sanctioned rapid tournaments.
Classical 40/90+30 G/30+30 Often used in FIDE-sanctioned classical tournaments.
Classical Online 120+30 Because online chess servers do not support advanced time controls.
World Championship 40/100+30 20/50+30 G/15+30 Used in the classical games of the World Chess Championship 2021.
World Championship Rapid Tie Break 25+10 Used in the rapid tie breaks of the World Chess Championship 2021.
World Championship Blitz Tie Break 5+3 Used in the blitz tie breaks of the World Chess Championship 2021.
Armageddon White 60/5 G/0+3 Often used by white in Armageddon tie breaks.
Armageddon Black 60/4 G/0+3 Often used by black in Armageddon tie breaks.
TABLE 6.3: Predefined time controls

In order to adhere to FIDE/USCF rules and to be consistent with the DGT3000, if a period specifies an increment, that increment is added to the initial time of the period (except for online games, because chess servers do not use these rules).

Examples:

  • A 3+2 online game starts with clocks at 3.00;
  • A 3+2 OTB/OTP game starts with clocks at 3.02;
  • A 40/90+30 G/30+15 OTB/OTP game starts with clocks at 1:30.30. When a player enters the second period, 30 minutes and 15 seconds are added to his clock.

Pressing a draw button offers a draw to the opponent unless:

The arm feature is in accordance with the following rules of the FIDE Laws of Chess:

Acid Ape Chess provides instant access to Syzygy 7-men endgame tablebases.

When analysis is enabled and there are 7 or fewer pieces left on the board, Acid Ape Chess queries the Syzygy 7-men online service and displays the EGTB result as an extra move arrow.

Endgames tablebases can also be used to auto annotate compatible positions.

Chess960, also called Fischer Random Chess, is a chess variant that randomizes home ranks pieces.

The New Game page has a toggle for enabling Chess960.

Some dialogs (such as the new position dialog and the play dialog) feature a position selector with a random initial Chess960 position.

Acid Ape Chess supports blindfold play:

The New Game page, the puzzle collection page and the play dialog have a toggle button for enabling blindfold mode.

Acid Ape Chess uses move speech recognition in blindfold mode and when the recognize move button of the move list subpage is used.

Our move speech recognition algorithm was trained with US English speakers, so the recognition success rate may vary with your accent and pronunciation.

We are working on improving this algorithm.

Acid Ape Chess has extensive first-class support for FICS, ICC and Lichess.

This allows you to:

Acid Ape Chess supports UCI and CECP chess engines, and ships with these built-in engines:

With a chess engine, you can:

Acid Ape Chess is compatible with apps that export chess engines via the following protocols:

  • Open Exchange: a de facto standard on Android, used by numerous third-party engine apps;
  • ACEI (Ape Chess Engine Interface): used by Chess Engines Collection.

When a compatible app is installed, Acid Ape Chess automatically detects and registers its chess engines.

You can add engine apps or binaries using the add toolbar button in the ENGINE or SIMUL tab of the New Game page, or in the engine manager page. The resulting dialog proposes a few popular chess engine apps and also allows you to add a custom engine binary.

Note
Because of Google Play restrictions which took effect in November 2020, user-supplied and Open Exchange 1.0 chess engines are no longer supported on Android 10 and later.

To be compatible with Acid Ape Chess on Android 10 and later, a third-party engine must now be published as an Android app and use ACEI (Ape Chess Engine Interface) or Open Exchange 2.0.

Some commercial engines require manual license activation after installation. If this is the case and activation has not been performed, Acid Ape Chess cannot register the engine.

Activation is usually performed by launching the separate engine app once. Consult your engine documentation for details.

It is sometimes useful to have multiple copies of the same engine, each with different settings. For instance, you might want to have an engine duel itself with each side using a different opening book.

To clone an engine, access its context menu by long-pressing the engine in the ENGINE or SIMUL tab of the New Game page and choose Clone.

To remove a clone, access its context menu and choose Remove.

Acid Ape Chess reserves one CPU core for other tasks (the system, the Acid Ape Chess UI, other apps) and evenly shares the remaining cores amongst the engines running in a game page.

For instance, if your phone has 8 cores:

  • analyzing with one engine (or playing against an engine) will allocate 7 cores to the engine;
  • analyzing with two engines (or creating an engine duel) will allocate 3 cores to each engine.
Warning
This core allocation algorithm is per-task, not app-global (a task is a game or an analysis). This means that if you run multiple chess engine tasks simultaneously, you might exceed your device processor and/or memory capabilities (if your device becomes overloaded, it might freeze for long periods while trying to recover).

You can force an engine to use a specific number of cores via the engine settings dialog. Note that this only has effect for human vs engine games. Analysis, simuls and engine duels ignore this setting.

Note
If evaluation graph precomputation is enabled, less CPU cores are made available to engines during engine games.

A chess engine uses your system to its full capacity and therefore drains your battery fast.

Chess engines continue to run while Acid Ape Chess is in the background, so that you can use other apps while analysis is running or while a chess engine is thinking during a game.

If chess engines are running while Acid Ape Chess is in the background, a system notification appears to remind you about battery usage. Pressing the Close button of the notification terminates the engines.

Acid Ape Chess allows you to play against multiple chess engines simultaneously.

This mimics real life simultaneous exhibitions and is an interesting way to play some chess.

To create a simul, use the New Game page's SIMUL tab.

In a simul:

  • you play with White;
  • you have unlimited time;
  • each opponent is forced to play his move shortly after you arrive at his board.

The Acid Ape Chess online game database is maintained by Acid Ape Studios and provides:

This database is updated continuously.

The online game database is used by:

Acid Ape Chess allows you to play on a connected physical chessboard.

A physical clock can optionally be connected to that board.

Model Connection
DGT Bluetooth e-Board Bluetooth, USB
DGT USB e-Board USB
DGT Smart Board USB
DGT Revelation II Bluetooth, USB
TABLE 6.4: Supported physical boards

To connect to a Bluetooth board, use the physical board page.

To connect to a USB board, simply plug the board into your phone or tablet. You can also use the physical board page to test your board once it is connected.

Note
Make sure that the OTG side of your cabling is plugged into your phone or tablet.

When a physical board is connected, specific squares may be highlighted on the Acid Ape Chess virtual board.

Acid Ape Chess automatically detects the orientation of the physical board. That is, you can place the black pieces on the white side. This is especially useful for boards which do not have coordinates.

The stabletime feature causes Acid Ape Chess to wait for the board to stabilize before considering a change.

It is used to avoid misdetection of sliding in double-step pawn advances and bishop/rook/queen moves.

The wait delay defaults to 400 ms and can be modified from the physical board settings dialog.

The algorithm is smart enough and inhibits itself when a move can not be further extended.

For instance, when playing 1. e3, the stabletime delay is in effect because the move can further be extended to 1. e4. However, when the e4 square is reached, the move is applied immediately because it can not be further extended.

The result of a game can be encoded by placing the kings on two of the center squares (d4, d5, e4 and e5).

Note
To use this encoding feature, make sure that the first king move is an illegal move. If it is not, first remove both kings before placing them back in the center squares.

To encode a white win, place both kings on light squares: d5 and e4.

To encode a black win, place both kings on dark squares: d4 and e5.

To encode a draw, place both kings on squares of opposite colors: d4 and e4, d5 and e5, d5 and d4, or e5 and e4.

When a chess clock is connected to a supported physical board, Acid Ape Chess can use it for display or as time source.

Moreover, a physical clock is a tap input source for external clock mode.

Acid Ape Chess supports the DGT3000 connected to any DGT board model.

  1. Connect the DGT3000 to your chessboard.
  2. Connect Acid Ape Chess to your chessboard.
  3. Use the physical board page to verify that the DGT3000 is recognized by Acid Ape Chess.

When option 25 is in use, some DGT3000 buttons control Acid Ape Chess features.

Button Description
The DGT3000 button 1 Unassigned.
The DGT3000 button 2 Toggle the clock beeper.
The DGT3000 button 3 Start, pause or resume the game.
The DGT3000 button 4 Unassigned.
The DGT3000 button 5 Unassigned.
TABLE 6.5: DGT3000 clock buttons
Note
The button 2 toggles the Acid Ape Chess clock beeper, both for the Android device and for the DGT3000. To toggle DGT3000 sounds independently, use the Sounds option in the physical board settings dialog.

Acid Ape Chess supports the DGT Pi, as the DGT Pi can be used as a regular DGT3000 clock. For more details, consult the DGT Pi manual.

In this mode, Acid Ape Chess is the time source: it displays its own data on the physical clock, controls the clock beeps and detects when a button is pressed on the clock.

To use this mode, select option 25 on the physical clock.

Warning
When option 25 is in use, the DGT3000 is quite laggy. This may adversely impact the players experience, particularly in blitz games. For two-player games, it is recommended that you use an option other than 25.

In this mode, the physical clock is the time source: Acid Ape Chess displays the physical clock data on its own virtual clocks. Acid Ape Chess is not responsible for timekeeping: it merely listens to time updates sent by the physical clock.

To use this mode:

  • open the play dialog;
  • select two human players;
  • select an option other than 25 on your physical clock.
Note
This mode is only available for local two-player games. For other game types, use option 25.
Note
This mode reduces clock lag but does not entirely eliminate it: it is still substantial when using a DGT e-Board. However, one of the advantages of using this mode is that the physical clock is autonomous: players will not experience any lag when looking at the physical clock after having tapped it.
The fullscreen clock
FIGURE 6.1: The fullscreen clock

When playing OTB games with a physical board but no physical clock, the fullscreen clock can be used as a virtual clock that players must tap to confirm their move (the fullscreen clock is a tap input source for external clock mode).

The fullscreen clock can be enabled by pressing the FULLSCREEN CLOCK button of the game information subpage (on smaller screens, you might have to scroll the subpage down a bit to reach that button).

This button only appear when relevant (you don't want a fullscreen clock if you have to input the moves with the virtual board).

The central area contains a number of action buttons (which may or may not be present depending on the game context).

Button Description
The “play” action Start or resume the game.
The “pause” action Pause the game.
The “resign” action Resign the game.
The “draw” action Offer or claim a draw.
The “draw armed” action Claim a draw after next move.
The “rematch” action Offer a rematch.
The “flip” action Flip the clock.
The “sound” action Toggle the clock beeper.
The “autoflag” action Toggle autoflagging.
TABLE 6.6: Action buttons
Note
In a two-player game using a physical clock, the start/pause/resume buttons are only displayed if the physical clock option is not set to 25.

When a physical clock is connected, the top center status icon appears.

Icon Description
The “clock turn left” status icon A physical clock is connected, and its lever is up on the left side.
The “clock turn right” status icon A physical clock is connected, and its lever is up on the right side.
TABLE 6.7: Top center status icons

When a physical board is connected, the bottom center status icon appears.

The status icon when a DGT board is connected
FIGURE 6.2: The status icon when a DGT board is connected

Side-specific status icons may appear in the lower left or lower right corner of the clock.

Icon Description
The “clock turn left” side status icon The left side played a legal move but did not yet confirm it by a clock tap.
The “clock turn right” side status icon The right side played a legal move but did not yet confirm it by a clock tap.
The “flag” side status icon The side has lost on time.
The “board error” side status icon The physical board position differs from the Acid Ape Chess board position. Fix the physical position.
TABLE 6.8: Side-specific status icons

Additionally, if a side's time control has multiple periods, the current period number for that side is indicated near the bottom center part of the screen.

OTP mode
FIGURE 6.3: OTP mode

OTP stands for over the phone. With OTP mode, two players can play against each other on the same phone or tablet. OTP mode can also be a useful visualization when two players are playing on a physical board.

If the Require clock taps option is enabled in the OTP settings dialog, OTP mode is a tap input source for external clock mode:

To enable OTP mode:

  1. Create a two-player game by using Position > Play in the main menu.
  2. Press the OTP MODE button of the game information subpage (on smaller screens, you might have to scroll the subpage down a bit to reach that button).

The central toolbar contains a number of action buttons (which may or may not be present depending on the game context).

Button Description
The “play” action Start or resume the game.
The “pause” action Pause the game.
The “resign” action Resign the game.
The “draw” action Offer or claim a draw.
The “draw armed” action Claim a draw after next move.
The “takeback” action Takeback the last move.
The “rematch” action Offer a rematch.
The “flip” action Flip the OTP display.
The “sound” action Toggle the clock beeper.
The “autoflag” action Toggle autoflagging.
The “settings” action Display the OTP settings dialog.
TABLE 6.9: Action buttons
Note
In a two-player game using a physical clock, the start/pause/resume buttons are only displayed if the physical clock option is not set to 25.

When a physical clock is connected, the top center status icon appears.

Icon Description
The “clock turn left” status icon A physical clock is connected, and its lever is up on the left side.
The “clock turn right” status icon A physical clock is connected, and its lever is up on the right side.
TABLE 6.10: Top center status icons

When a physical board is connected, the bottom center status icon appears.

The status icon when a DGT board is connected
FIGURE 6.4: The status icon when a DGT board is connected

Side-specific status icons may appear at the left or at the right of the side's clock.

Icon Description
The “clock turn left” side status icon The left side played a legal move but did not yet confirm it by a clock tap.
The “clock turn right” side status icon The right side played a legal move but did not yet confirm it by a clock tap.
The “flag” side status icon The side has lost on time.
TABLE 6.11: Side-specific status icons

Additionally, if a side's time control has multiple periods, the current period number for that side is indicated in the side's clock.

External clock mode requires the use of a physical or virtual chess clock to:

A move arrow indicates a legal move that has been played on the chessboard but not yet confirmed by a clock tap.

When a physical chessboard is connected and the game is a human duel, external clock mode is active if any of the following conditions are true:

When OTP mode is enabled, external clock mode is active if the Require clock taps option is enabled in the OTP settings dialog.

Acid Ape Chess automatically saves played, adjourned and observed games.

Your saved games can be reached with the PGN explorer page.

Games of different types are saved in different locations.

In the following table the listed files are relative to Acid Ape Chess/Games, which is the Home location of the PGN explorer page.

Location Description
My games.pgn Your online and engine games.
My adjourned games.pgn Your adjourned games.
My simuls Your simuls.
Human duels.pgn Your OTB/OTP games.
Engine duels.pgn The engine duels you have organized.
Observed games.pgn Your observed games.
TABLE 6.12: Game autosave locations

You can adjourn engine games and human duels, and resume playing at a later time.

Your adjourned games are autosaved to My adjourned games.pgn and can be reached with the PGN explorer page.

To adjourn a game in progress, quit the game by pressing the Back button. If the game type supports adjournment, the quit dialog will feature an ADJOURN button in addition to the RESIGN button.

Press the ADJOURN button to mark the game as adjourned and save it to My adjourned games.pgn. The game page will then be closed.

To resume an adjourned game, reach the adjourned game with the PGN explorer page, then press the game.

Note
Finished games are automatically removed from My adjourned games.pgn.

Acid Ape Chess allows you to share your games as downloadable PGN files.

To share the current game, use Game > Share in the main menu.

When you share a game, Acid Ape Chess uploads the PGN file to its backend server, which replies with a unique download link for the PGN file.

This download link is then shared with the standard Android share mechanism.

This chapter describes how to perform some typical tasks.

  1. Switch to the New Game page (it is the startup page).
  2. Switch to the ONLINE tab.
  3. Select your desired color and time controls.
  4. Select the account of your choice.
  5. Press the PLAY button.
  1. Switch to the New Game page (it is the startup page).
  2. Switch to the ONLINE tab.
  3. Select your desired color and time controls.
  4. If needed, add an authenticated account (one with a username and password) using the add button in the toolbar.
  5. Select the authenticated account of your choice.
  6. Enable the cup toggle button (at the left of the PLAY button).
  7. Press the PLAY button.

Prerequisite: your friend and yourself must have an account on FICS or Lichess.

  1. Ask your friend to connect to FICS or Lichess using his account.
  2. Switch to the New Game page (it is the startup page).
  3. Switch to the ONLINE tab.
  4. If needed, add your FICS or Lichess authenticated account (one with a username and password) using the add button in the toolbar.
  5. Select your FICS or Lichess authenticated account.
  6. Press the player search button in the toolbar.
  7. Use the search box to search for your friend.
  8. Press the challenge button at the right of your friend's entry.
  9. Configure the challenge and press the OK button.
  10. The game starts when your friend accepts the challenge.
  1. Select Online / OTB > Games in the main menu.
  2. Select the desired chess server tab.
  3. Select a game from the list.
  1. Switch to the New Game page.
  2. Switch to the ENGINE tab.
  3. Select your desired color and time controls.
  4. Select the engine of your choice.
  5. Press the PLAY button.
  1. Select Position > Play in the main menu.
  2. Select the desired engines for black and white.
  3. Press the OK button.
  1. Select Position > Edit in the main menu.
  2. Edit the position to match the handicap of your choice.
  3. Select Position > Play in the main menu.
  4. Select the desired engine for the side having the handicap.
  5. Select a human player for the other side.
  6. Press the OK button.
  1. Select Position > Play in the main menu.
  2. Select the desired engine for one side.
  3. Select a human player for the other side.
  4. Use the white or black time controls to set the desired handicap.
  5. Press the OK button.
  1. Select Position > Edit in the main menu.
  2. Edit the position to match the handicap of your choice.
  3. Select Game > Save in the main menu.
  4. Select a location and file name, then press SAVE.
  1. Select Game > Explorer in the main menu.
  2. Open the previously saved file containing your handicapped position.
  3. Select Position > Play in the main menu.
  4. Select the desired engine for the side having the handicap.
  5. Select a human player for the other side.
  6. Press the OK button.
  1. Select Online / OTB > Relayed games in the main menu.
  2. Select a game from the list.
  1. Select Settings and help > e-Board in the main menu.
  2. Press SCAN DEVICES.
  3. After a few seconds, your Bluetooth chessboard should be found. Press its entry.
  1. Connect your chessboard to your phone with a USB OTG cable.
  2. If Android detects that a USB device handled by Acid Ape Chess was connected, the system automatically launches Acid Ape Chess.
  3. Acid Ape Chess automatically connects to the chessboard.
  4. To test your chessboard, select Settings and help > e-Board in the main menu.
  1. Connect to a physical chessboard.
  2. Select Position > Play in the main menu.
  3. Configure Black and White to be human players.
  4. If a physical clock is connected, select an option on the clock. To reduce clock lag, it is recommended that you use an option other than 25.
  5. Press the OK button.
  6. If a physical clock is connected, press the play/pause button on the clock (see external clock mode).
  7. Play the game to its completion so that it is autosaved.
